| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 64324-1039 |
| Contact Material: | High Copper Alloy |
| Contact Plating: | Tin |
| Terminal Type: | Crimp |
| Wire Size: | 16 to 14 AWG |
| Voltage Rating: | 14 VDC |
| SKU: | MOL64324-1039 |
64324-1039
Specifications
Detailed Description
Introducing the 64324-1039, a high-performance female CMC CP Terminal designed for reliable power connections in automotive applications. With a current rating of 21A and a voltage tolerance of 14V DC, this terminal ensures efficient power transmission. Its crimp or compression termination method, along with compatibility for 14-16 AWG wires, guarantees secure and durable connections. Constructed with high copper contact material and tin plating, it offers excellent conductivity and corrosion resistance. The 1.016 µm tin-plated mating area further enhances its longevity. RoHS compliant and available in stock, this terminal is the ideal choice for automotive connectivity, meeting the stringent demands of the industry.
Frequently Bought Together
| Product | Part # | Description | Stock |
|---|---|---|---|
 | Molex 39-01-2145 | Mini-Fit Jr. Receptacle Housing, Dual Row, 14 Circuits, UL 94V-0, Natural |  |
 | Molex 39-01-2185 | Mini-Fit Jr. Receptacle Housing, Dual Row, 18 Circuits, UL 94V-0, Natural | |
 | Molex 50039-8000 | Mizu-P25 Female Crimp Terminal, 2.50mm Pitch, 22-20 AWG | |
 | Molex 502578-0200 | CLIK-Mate Plug Housing, 1.50mm Pitch, Single Row, Positive Lock, 2 Circuits, Natural | |

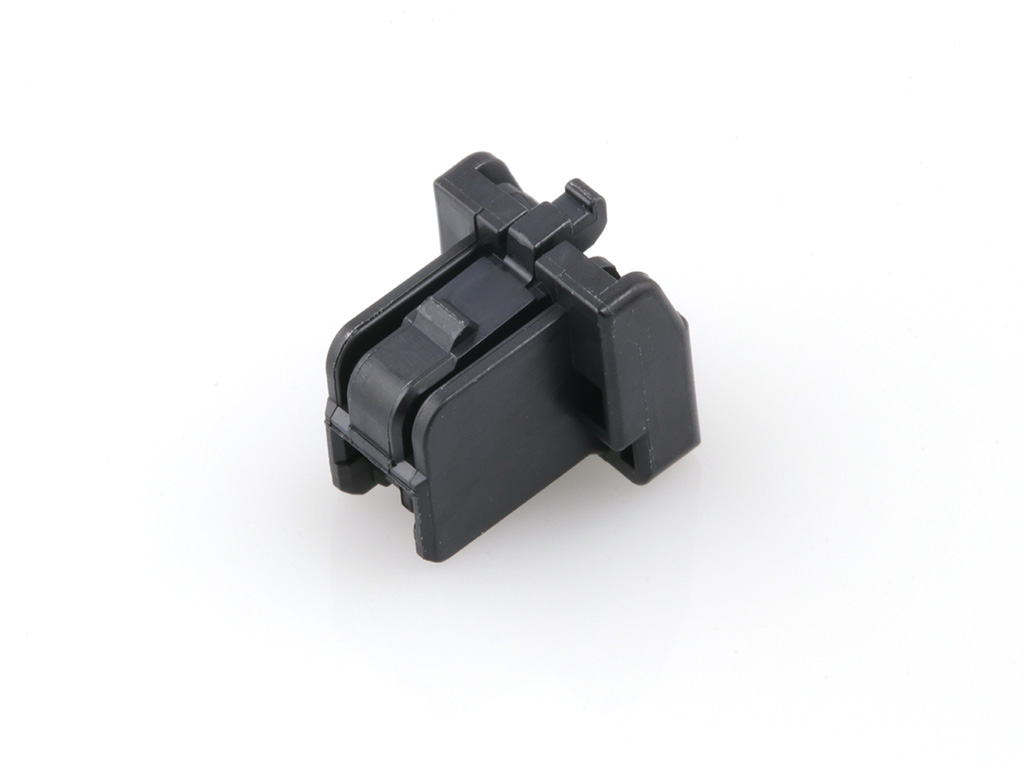

 | Molex 502578-0201 | CLIK-Mate Plug Housing, 1.50mm Pitch, Single Row, Positive Lock, 2 Circuits, Black | |
 | Molex 52117-0241 | Mizu-P25 Waterproof Wire-to-Wire Receptacle Housing, 5.00mm Pitch, 2 Circuits, Black | |
 | Molex 64319-1201 | CMC Wire Cap for 32 Circuits, CMC Receptacle Mat Sealed | |
 | Molex 64319-1211 | .635mm, 1.50mm, CMC Receptacle, 32 Circuits, Left Wire Output, Black Coding, Mat Sealed | |
 | Molex 64319-3218 | .635mm, 1.50mm, CMC Receptacle, 32 Circuits, Right Wire Output, Gray Coding, Mat Sealed | |
 | Molex 64320-1301 | Wire Cap for Mat Sealed CMC Receptacle, 28 Circuits and 48 Circuits | |
 | Molex 64320-1319 | .635mm, 1.50mm, CMC Receptacle, 48 Circuits, Left Wire Output, Brown Coding, Mat Sealed | |
 | Molex 64320-3311 | .635mm, 1.50mm, CMC Receptacle, 48 Circuits, Right Wire Output, Black Coding, Mat Sealed | |
 | Molex 64321-1101 | Wire Cap for CMC Mat Sealed Receptacle, 53 Circuits | |
 | Molex 64321-2011 | .635mm, 1.50mm, 2.80mm, CMC Receptacle, 53 Circuits, Right Wire Output, Black Coding, Mat Sealed | |
 | Molex 64321-2018 | .635mm, 1.50mm, 2.80mm, CMC Receptacle, 53 Circuits, Right Wire Output, Gray Coding, Mat Sealed | |
 | Molex 64322-1029 | 0.635mm CMC CP Female Terminal, Tin Plated, for Square 0.6mm x 0.6mm Pins, Wire Size 0.75mm² | |
 | Molex 64323-1029 | 1.50mm CMC CP Female Terminal, Tin Plated, for Tab Ddimensions 1.50mm x 0.80mm, Wire Size 0.50mm² - 1.0mm² | |
 | Molex 64325-1010 | CMC 0.635mm Blind Cavity Plug | |
Product Change Notice
| Effective Date | Description of Change | Download | |||
|---|---|---|---|---|---|
| 04/30/2027 | 518186 - Production Transfer & Change Supplier. This notification is to inform all Chinese customers about the manufacturing location transfer from Molex US to Molex China, and we will qualify additional raw material supplier to ensure material supply continuity. | Download | |||
| 04/30/2026 | 517139 - Capacity/ Supplier Change & transfer. This notification is to inform all Chinese customers about the manufacturing location transfer from US to China and new supplier qualification for raw material that have been used to the impacted parts. No changes will be made to product as part of this change. | Download | |||
| 12/31/2025 | 517608 - Partial Retraction of PCN 517139. Partial retraction PCN 517139 communicated on 7/7/25 retracted listed 4 PNs from previous PCN because of the updated strategy for CP2.8 duplicate tooling development we will release a separate PCN for CP2.8 at a later time. | Download | |||
| 08/01/2020 | 508485 - Warehouse transfer. moving from Lincoln (duns# 967495487) to Bolingbrook (Duns# 103340709) | Download | |||
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
