64324-1029

Heilind Number:	MOL64324-1029
Manufacturer:	Molex
Manufacturer Number:	64324-1029
Datasheet:	RoHS Certificate of Compliance
ECAD Model:

Description:

2.80mm, CMC CP Female Terminal, Tin plated, for Tab Dimensions 2.8mm x 0.8mm, Wire Size > 2mm

More >>

Specifications

Attribute	Value
Product Category:	Automotive Connectors & Accessories Automotive Connectors
Manufacturer:	Molex
Manufacturer Part Number:	Molex 64324-1029
Series:	64324 - CMC - CP Terminal
Amperage:	21 A
Connector Type:	CMC, CP Terminal
Gender:	Female
Termination Method:	Crimp or Compression
Contact Material:	High Copper
Contact Plating:	Tin
Voltage:	14 V DC
Circuit Application:	Power
Contact Mating Area Plating:	Tin
Contact Mating Area Plating Thickness:	1.016 µm
Wire Size:	16 AWG, 18 AWG, 20 AWG, 22 AWG, 24 AWG, .2 - 1.3 mm²
Connector System:	Wire to Wire
Contact Termination Plating:	Tin
Wire Insulation Diameter:	.51 - 1.29 mm
Part Aliases:	0643241029
SKU:	MOL64324-1029

Detailed Description

The CMC 64324-1029 is a high-performance female CP Terminal connector designed for power applications in automotive and other industries. With a current rating of 21 A and a voltage tolerance of 14 V DC, this connector ensures reliable power transmission. Featuring a crimp or compression termination method, it offers secure and efficient wire connections for 24-16 AWG sizes. The contact material is high copper with tin plating, guaranteeing excellent conductivity and corrosion resistance. Packaged on a reel for convenience, the CMC connector is RoHS compliant and suitable for a wide range of applications, making it a dependable choice for your connectivity needs.

Frequently Bought Together

Product	Part #	Description	Stock
	Molex 160112-6002	MX150 Hybrid Mat-Sealed Male Connector Assembly, Dual Row, 12 Circuits, UL 94V-0, Keying Option B, Light Gray
	Molex 172264-3004	Ultra-Fit Tangless Terminal Position Assurance (TPA), 3.50mm Pitch, 4 Circuits, Black
	Molex 19069-0049	Krimptite Ring Tongue Terminal for 18-22 AWG Wire
	Molex 22-01-1022	2.50mm Pitch KK Wire-to-Board Housing, Female, Friction Lock, for 2759/5159 Crimp Terminals, 2 Circuits
	Molex 33000-0002	Cut Strip - MX150 Male Terminal for Mat-Sealed or Unsealed Connectors, Tin Plating, 16, 18 and 20 AWG, Right Reel Payoff
	Molex 33000-1002	MX150 Male Terminal, Tin Plating, 16, 18 and 20 AWG, Left Reel Payoff
	Molex 33000-1004	MX150 Male Terminal, Tin Plating, Preferred Terminal for use in Sealed Application with 0.35-0.50mm
	Molex 43980-1005	Mini-Fit Sr. Dual Row Terminal Position Assurance (TPA) Retainer, 14 Circuits, Natural
	Molex 64318-1011	.635mm, 1.50mm, 2.80mm, Power CMC Receptacle, 28 Circuits, Left Wire Output, Black Coding, Mat Sealed
	Molex 64319-1211	.635mm, 1.50mm, CMC Receptacle, 32 Circuits, Left Wire Output, Black Coding, Mat Sealed
	Molex 64320-1318	.635mm, 1.50mm, CMC Receptacle, 48 Circuits, Left Wire Output, Gray Coding, Mat Sealed
	Molex 64322-1029	0.635mm CMC CP Female Terminal, Tin Plated, for Square 0.6mm x 0.6mm Pins, Wire Size 0.75mm
	Molex 64323-1029	1.50mm CMC CP Female Terminal, Tin Plated, for tab dimensions 1.5mm x 0.8mm, Wire Size 0.50mm

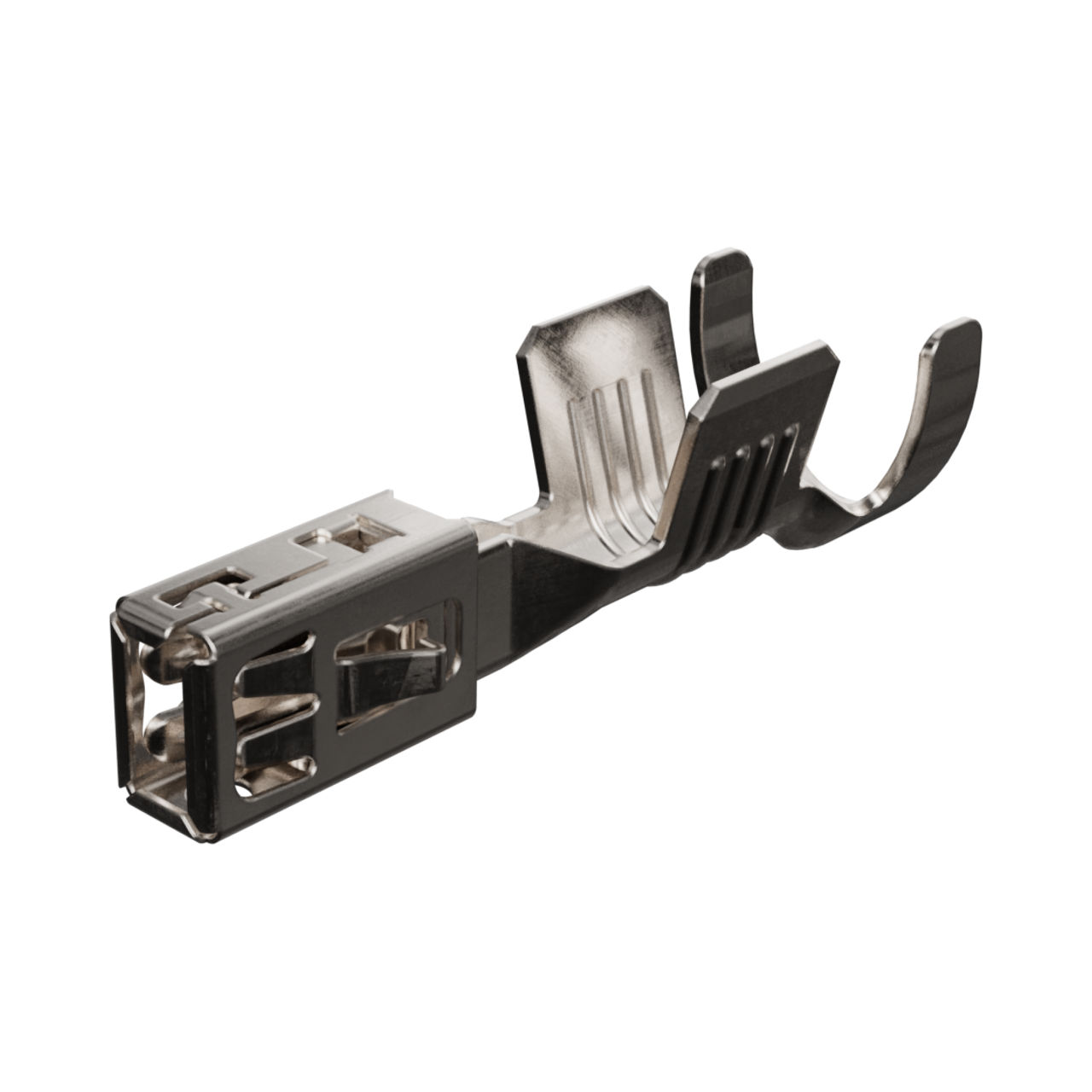

	Molex 64324-1049	2.80mm, CMC CP Female Terminal, Tin plated, for Tab Dimensions 2.8mm x 0.8mm , Wire Size 0.50mm
	Molex 64325-1023	CMC Blind Plug cavity 1.50mm
	Molex 64325-1332	Single Wire Seals for CP 2.80 Terminals, Red
	Molex 64325-1358	Single Wire Seals for CP 2.80 Terminals, Gray

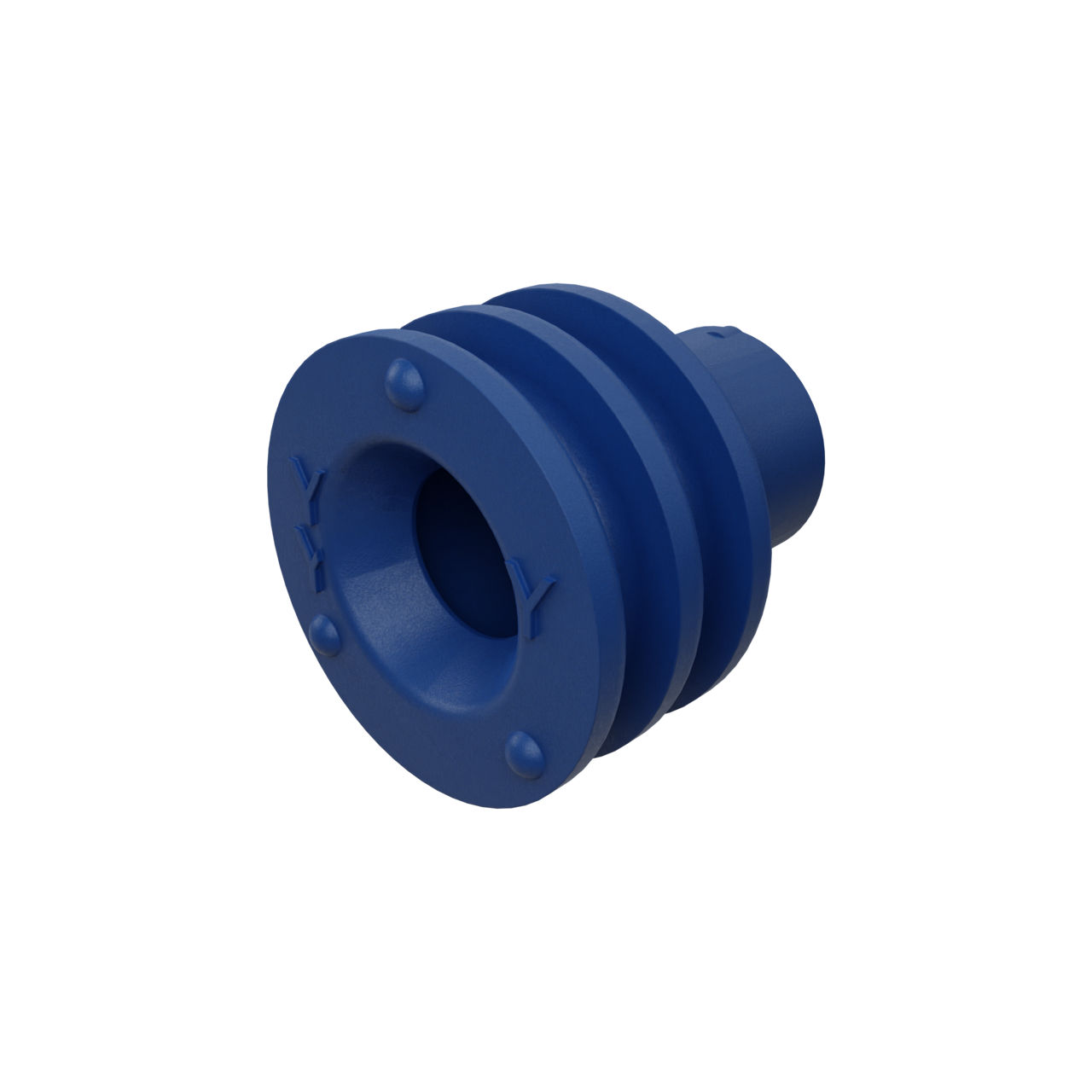

	Molex 64325-1366	Single Wire Seals for CP 2.80 Terminals, Blue
