| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 56579-0519 |
| Color: | Gray |
| Series: | 56579 - USB 2.0 - USB OTG (On-The-Go) |
| Amperage: | 1 A |
| Connector Type: | USB, USB OTG (On-The-Go) |
| Gender: | Female |
| Number of Contacts: | 5 |
| Number of Rows: | 1 |
| Termination Method: | Through Hole |
| Contact Material: | High Performance Alloy (HPA), Phosphor Bronze |
| Maximum Operating Temperature: | 85 °C |
| Minimum Operating Temperature: | -20 °C |
| Body Orientation: | Right Angle |
| Pitch: | 8 mm |
| Voltage: | 30 V AC/DC |
| Shield Type: | Full Shield |
| Material: | Thermoplastic |
| Number of Ports: | 1 |
| Orientation: | Right Angle |
| USB Type: | Mini-AB (OTG) |
| Component Type: | Receptacle |
| Tail Length: | 1.8 mm |
| Operating Temperature Range: | -20 - 85 °C |
| Contact Mating Area Plating: | Gold |
| Contact Mating Area Plating Thickness: | .762 µm |
| Number of Contacts Loaded: | 5 |
| PCB Locator: | Yes |
| Shielded: | Yes |
| PCB Retention: | Yes |
| Polarized to PCB: | Yes |
| Contact Termination Plating Thickness: | 1.016 µm |
| Polarized to Mate: | Yes |
| PCB Thickness (Recommended): | .8 mm |
| Supplier Product Group: | High Speed Cage & Connector Assemblies |
| Connector System: | Wire to Board |
| Contact Termination Plating: | Tin |
| Termination Pitch: | .8 mm |
| Lock to Mating Part: | Yes |
| Surface Mount Compatible: | No |
| Waterproof Dustproof: | No |
| Part Aliases: | 0565790519 |
| SKU: | MOL56579-0519 |
56579-0519
Specifications
Detailed Description
Introducing the 56579-0519, a high-speed Mini USB connector designed for On-The-Go (OTG) functionality. This female connector features a right-angle, through-hole solder termination for secure and reliable installation on PCBs. With 5 contacts and a maximum amperage of 1A, it ensures efficient power and data transmission. The gold-plated contact mating area guarantees excellent signal integrity, while the full shield provides EMI/RFI protection. Operating in a wide temperature range from -20°C to 85°C, this USB connector is suitable for various industrial applications. RoHS compliant and lead-free, it meets environmental standards. Trust the 56579-0519 for seamless connectivity in your high-speed designs.
Frequently Bought Together
| Product | Part # | Description | Stock |
|---|---|---|---|
 | Molex 105133-0011 | Micro-USB B Receptacle, Vertical, Surface Mount, 6.70mm Height, 2.30mm Solder Tabs, with Cover, Lead-Free |  |

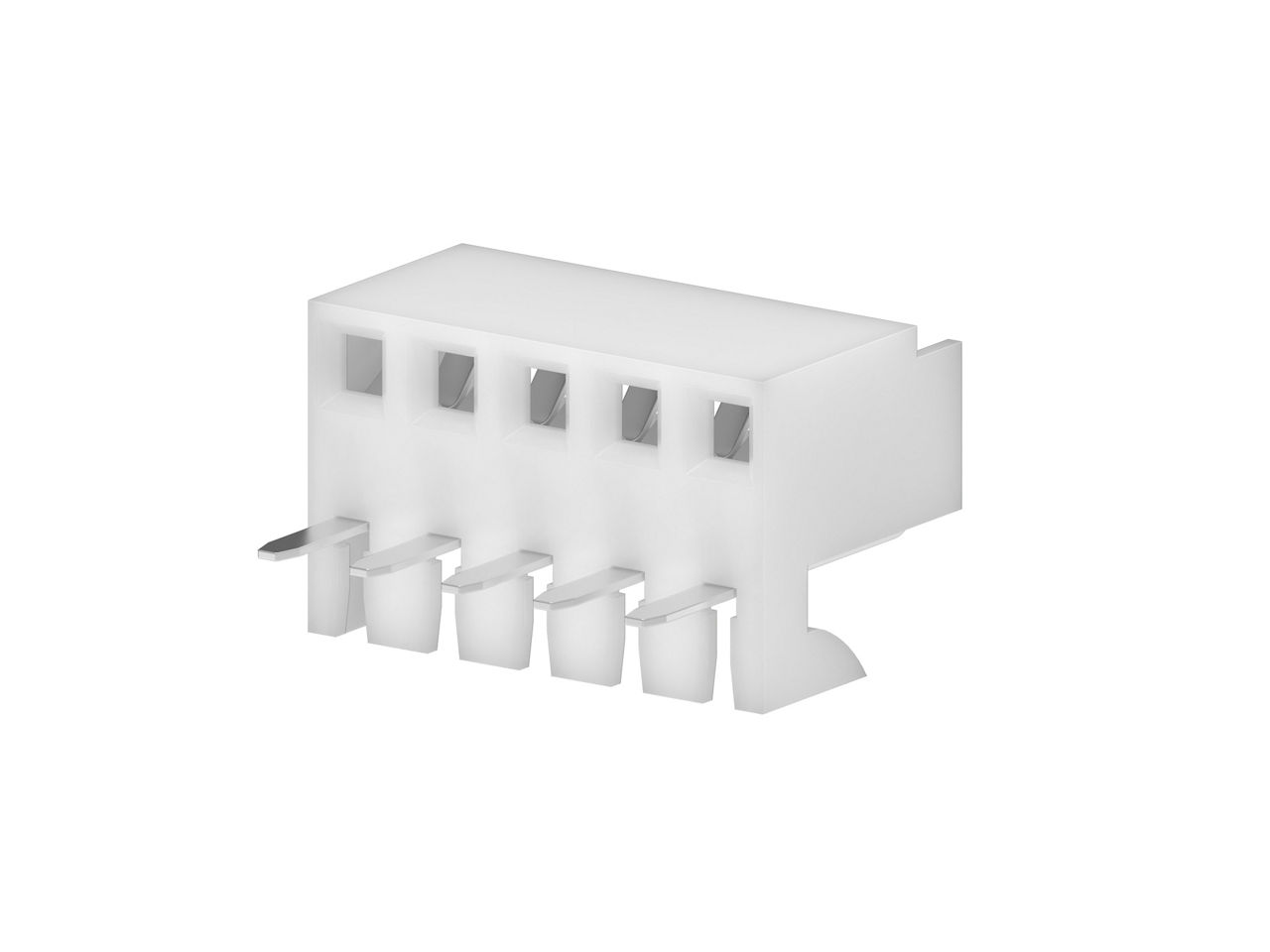

 | Molex 22-14-2054 | KK 254 PC Board Connector, Bottom Entry, 2.54µm Tin (Sn), 5 Circuits | |
