| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 56086-8100 |
| Series: | 56086 - MicroTPA |
| Connector Type: | MicroTPA |
| Gender: | Male |
| Termination Method: | Crimp or Compression |
| Contact Material: | Phosphor Bronze |
| Contact Plating: | Tin |
| Packaging: | Bag |
| Circuit Application: | Signal |
| Contact Mating Area Plating: | Tin |
| Contact Mating Area Plating Thickness: | .889 µm |
| Contact Termination Plating Thickness: | .914 µm |
| Wire Size: | 22 AWG, 24 AWG, 26 AWG, 28 AWG |
| Connector System: | Wire to Wire |
| Contact Termination Plating: | Tin |
| Wire Insulation Diameter: | 1.5 mm |
| Part Aliases: | 0560868100 |
| SKU: | MOL56086-8100 |
56086-8100
Specifications
Detailed Description

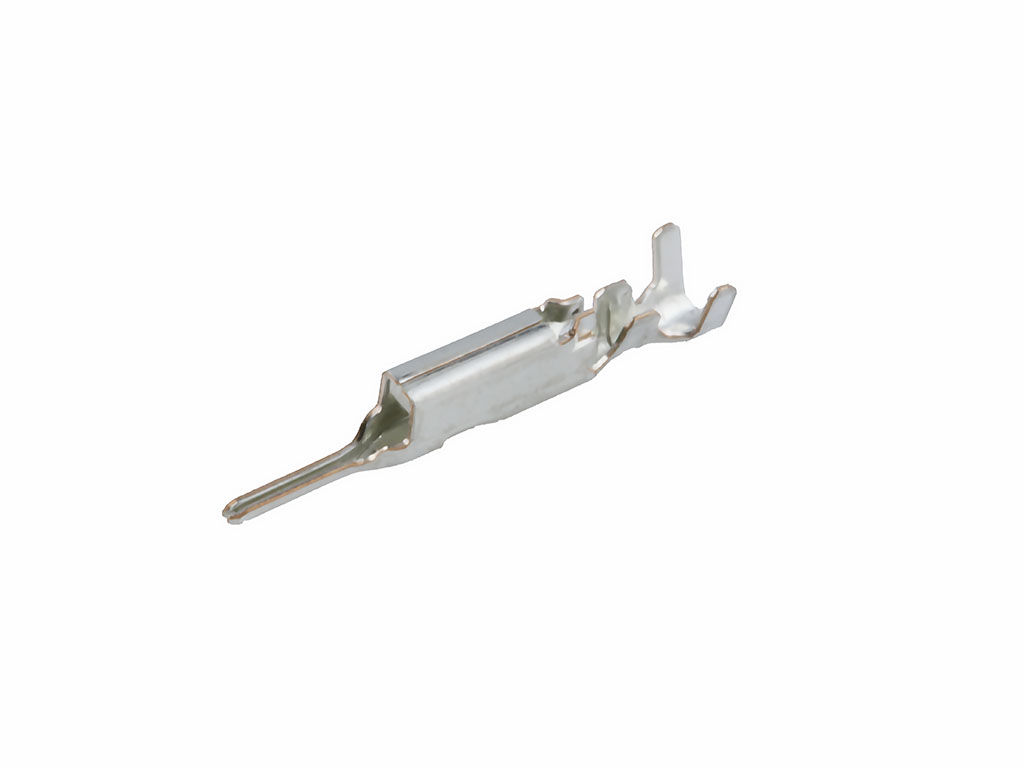

Introducing the 56086-8100, a high-performance MicroTPA connector designed for automotive applications. This male connector features versatile termination options, with compatibility for both crimp and compression methods. Constructed with durable phosphor bronze contacts and tin plating, it ensures reliable signal transmission in harsh environments. With a compact MicroTPA design, it's ideal for space-constrained installations. Suitable for 24-28 AWG wire sizes, it offers flexibility for various connectivity needs. RoHS compliant and in stock for immediate shipping, this connector is a dependable solution for automotive wiring systems.
Frequently Bought Together
| Product | Part # | Description | Stock |
|---|---|---|---|
 | Molex 105300-1300 | Cut Strip - Nano-Fit Crimp Terminal, Female, 0.76 |  |

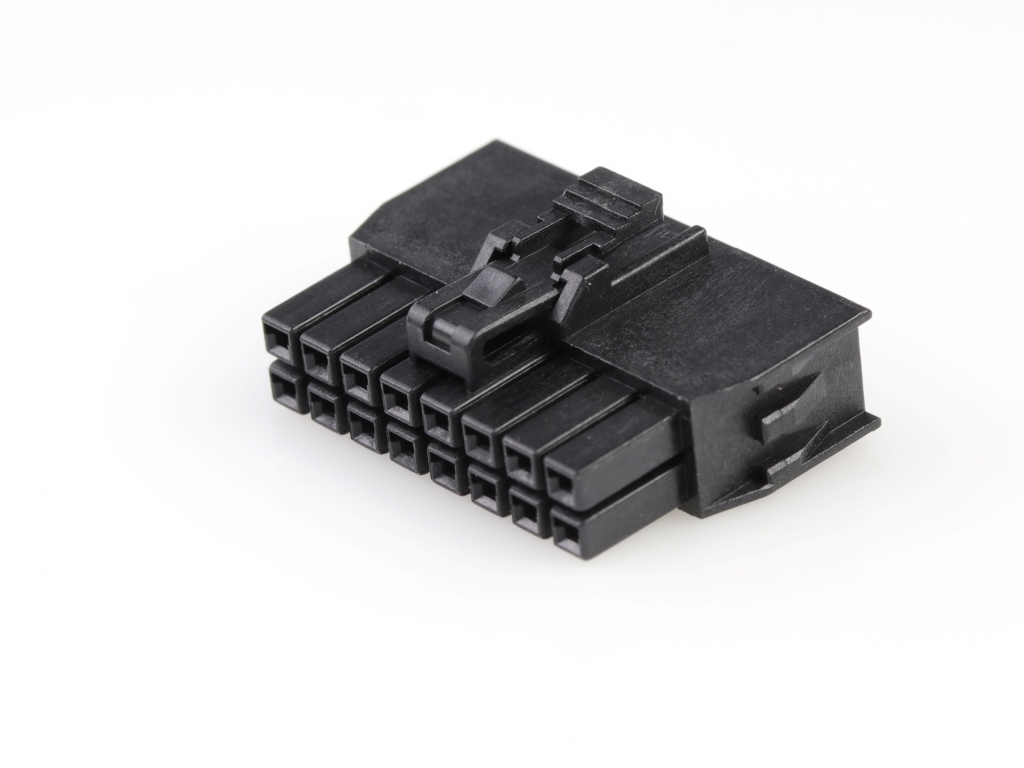

 | Molex 105308-1216 | Nano-Fit Receptacle Housing, TPA Capable, 2.50mm Pitch, Dual Row, 16 Circuits, Black, Glow-Wire Capable | |

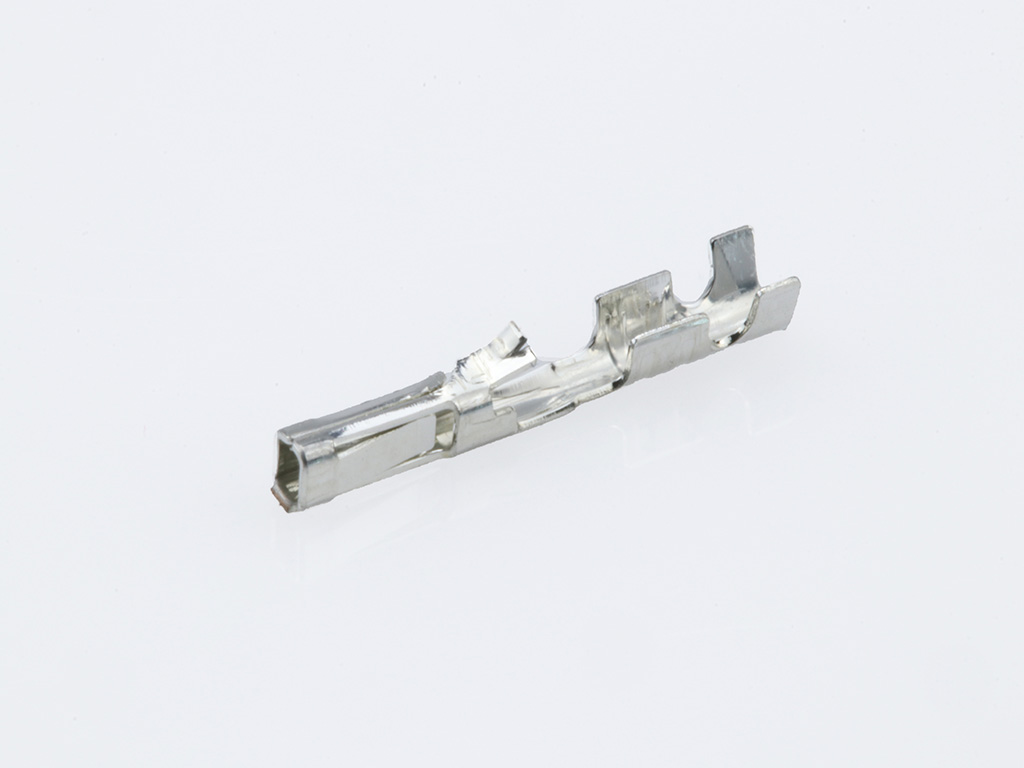

 | Molex 16-02-0069 | SL Crimp Terminal, Series 70058, Female, 30-24 AWG, with Tin (Sn) Plated Contact, Reel | |

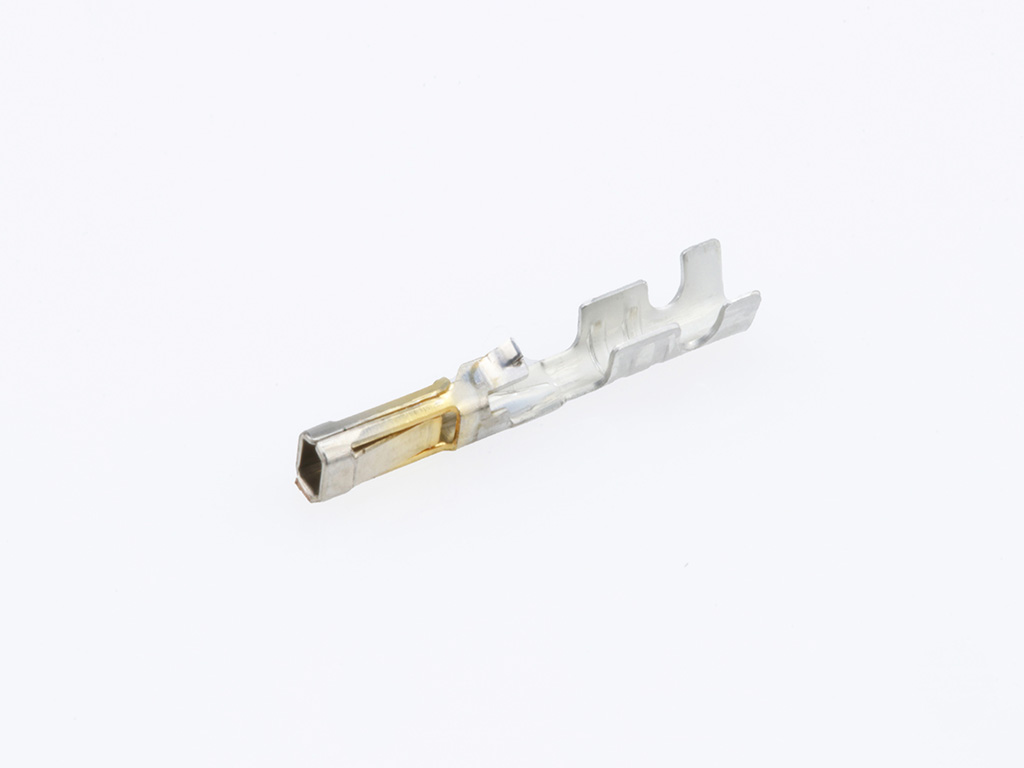

 | Molex 16-02-0103 | SL Crimp Terminal, Series 70058, Female, 24-22 AWG, with 0.38µm Selective Gold (Au) Plated Contact | |

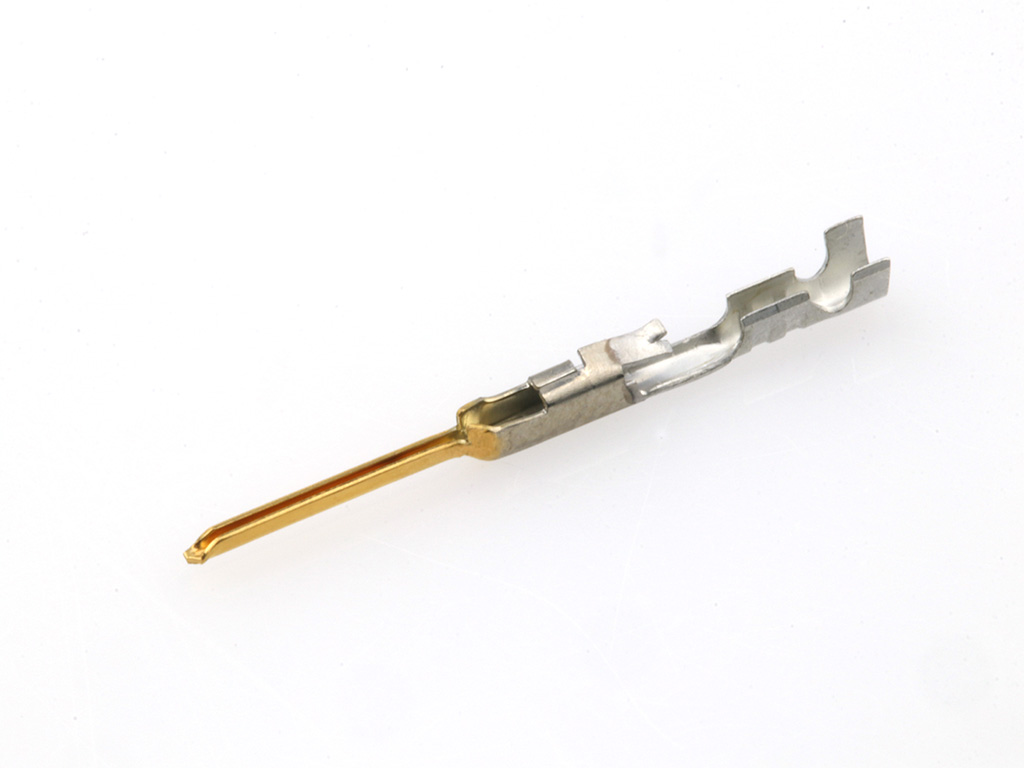

 | Molex 16-02-0115 | SL Crimp Terminal, Series 70021, Male, with 0.38µm Selective Gold (Au) Plated Contact, 24-22 AWG | |

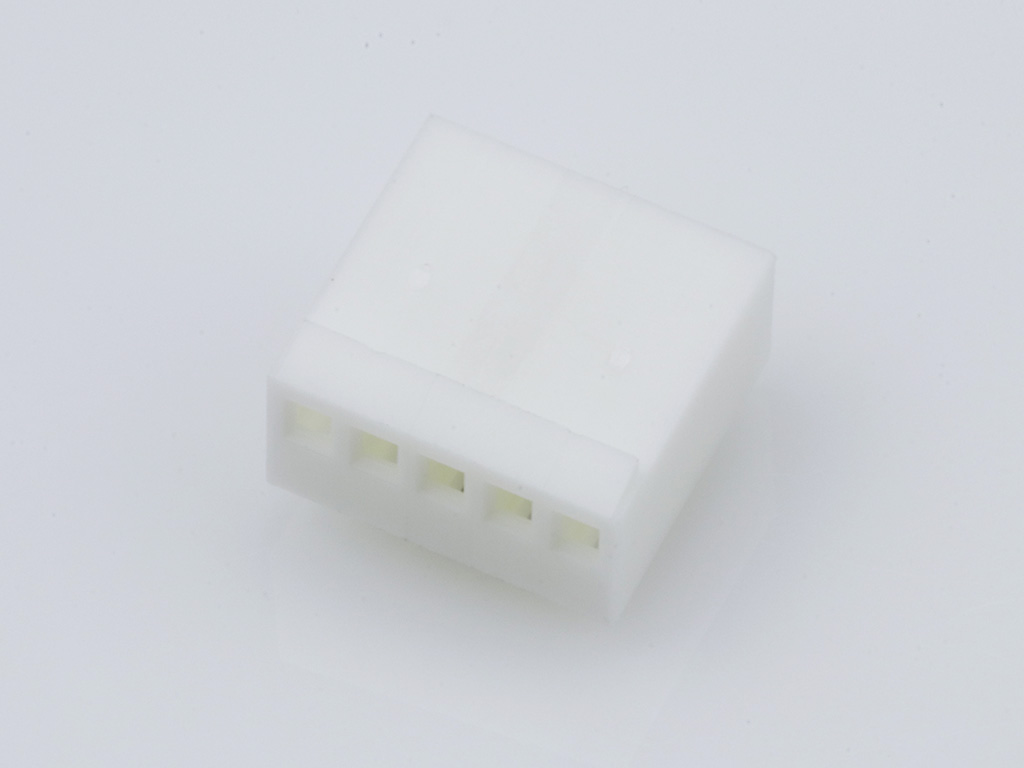

 | Molex 22-01-2057 | KK 254 Crimp Housing, Friction Ramp, 5 Circuits, Natural | |
 | Molex 43025-0400 | Micro-Fit 3.0 Receptacle Housing, Dual Row, 4 Circuits, UL 94V-0, Low-Halogen, Black | |
 | Molex 43025-0800 | Micro-Fit 3.0 Receptacle Housing, Dual Row, 8 Circuits, UL 94V-0, Low-Halogen, Black | |
 | Molex 50-57-9402 | SL Crimp Housing, Single Row, Version G, Positive Latch, 2 Circuits, Black | |

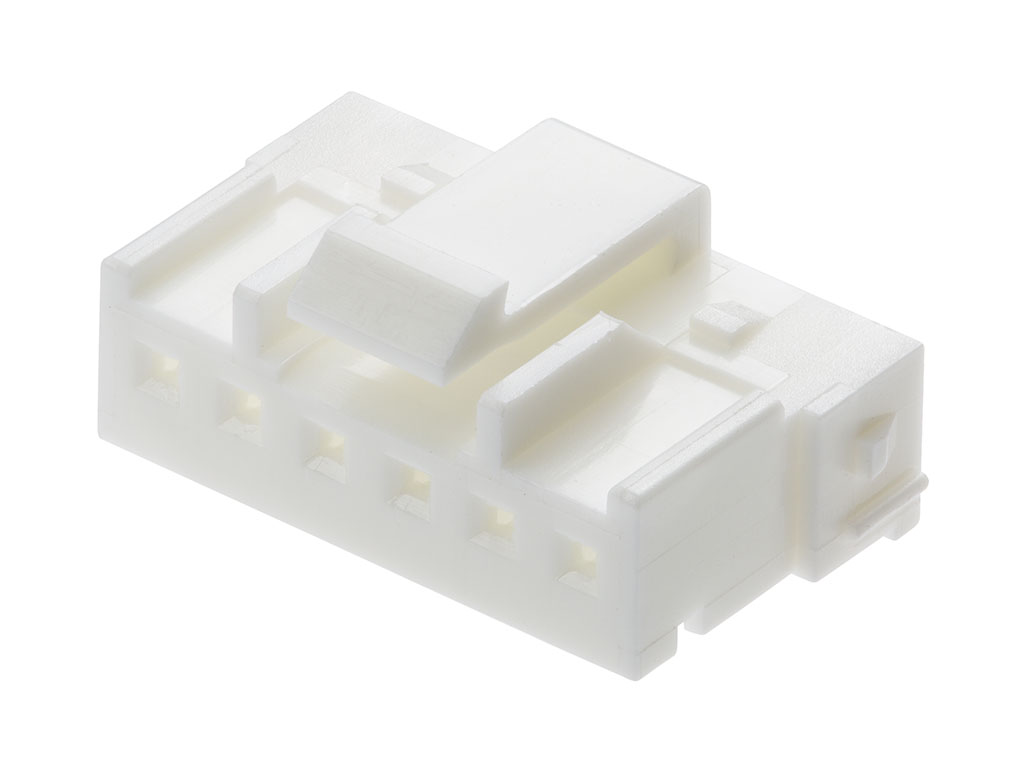

 | Molex 51216-0200 | 2.00mm Pitch MicroTPA Receptacle Housing, Positive Lock, 2 Circuits, Natural | |

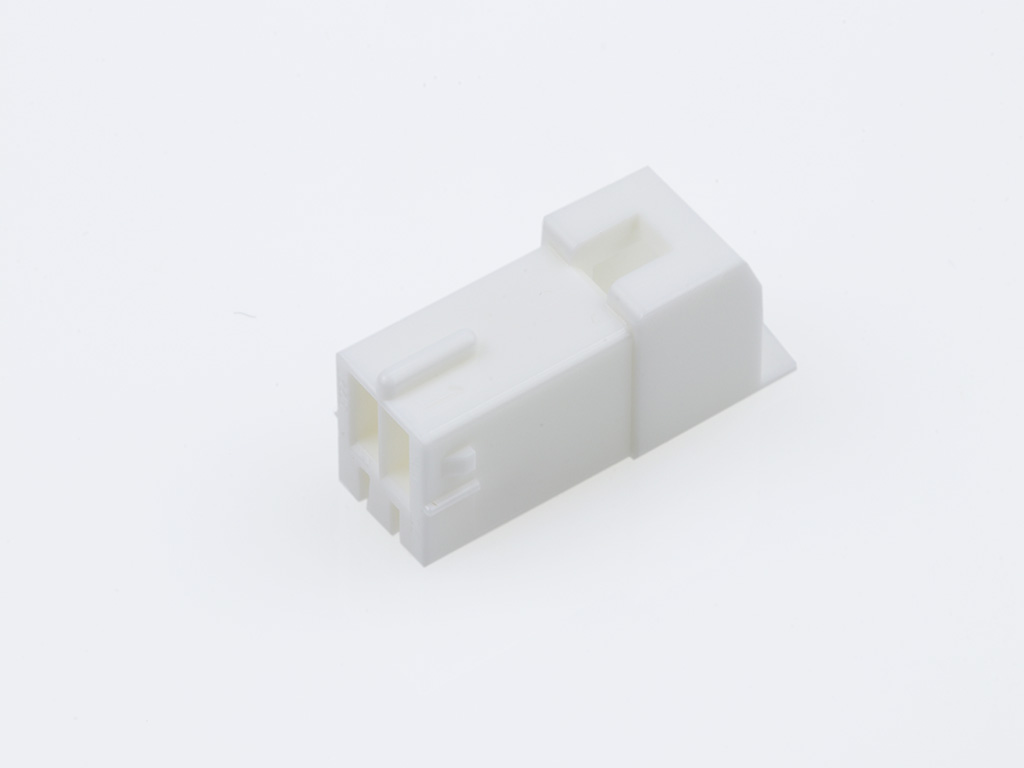

 | Molex 51227-0200 | 2.00mm Pitch Wire-to-Wire Plug Housing, Positive Lock, 2 Circuits, Natural | |

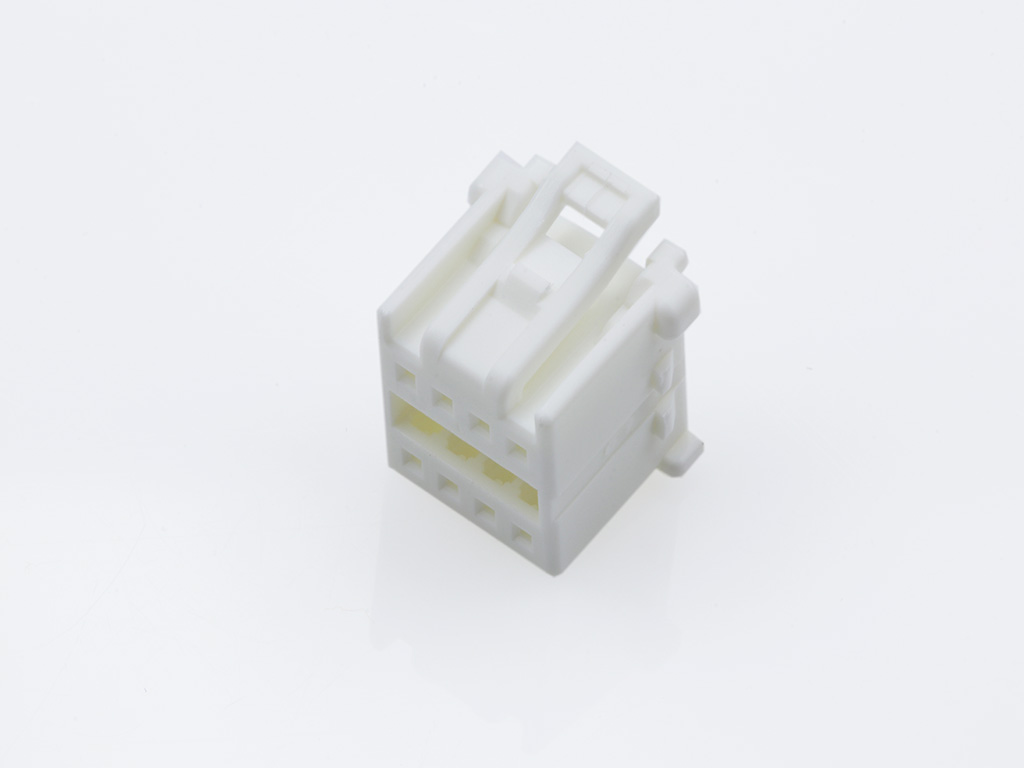

 | Molex 51353-0800 | 2.00mm Pitch MicroClasp Wire-to-Board Receptacle Housing, Positive Lock, Dual Row, 8 Circuits, White | |

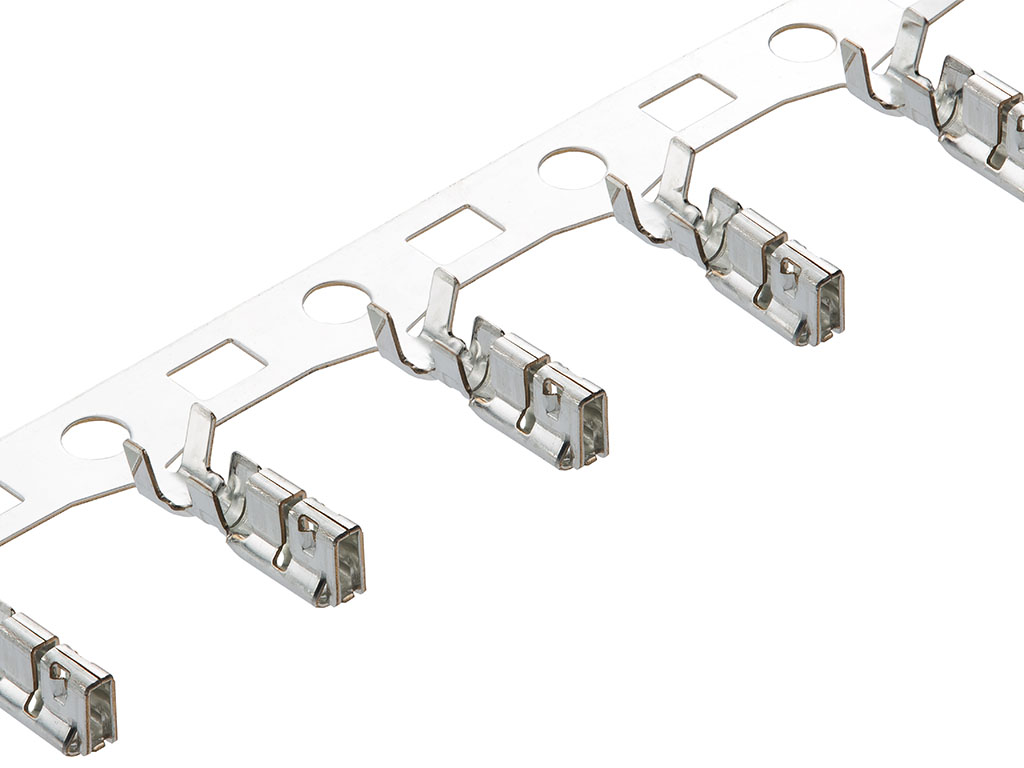

 | Molex 59370-8100 | 2.00mm Pitch Crimp Terminal, Female, 22-28 AWG, Bag | |
