54132-3662

Heilind Number:	MOL54132-3662
Manufacturer:	Molex
Manufacturer Number:	54132-3662
Datasheet:	RoHS Certificate of Compliance
ECAD Model:

Description:

Easy-On FFC/FPC Connector, 0.50mm Pitch, Slider Series, Right-Angle, Bottom Contact, 2.00mm Height, 36 Circuits, Gold Plating

More >>

Specifications

Attribute	Value
Product Category:	FFC, FPC, Ribbon & IDT Connectors FFC & FPC Connectors
Manufacturer:	Molex
Manufacturer Part Number:	Molex 54132-3662
Color:	Black, Natural
Series:	54132
Amperage:	.5 A
Connector Type:	Easy-On
Housing Material:	High Temperature Thermoplastic
Number of Rows:	1
Contact Material:	Phosphor Bronze
Contact Plating:	Gold
Maximum Operating Temperature:	85 °C
Minimum Operating Temperature:	-20 °C
Body Orientation:	Right Angle
Pitch:	5 mm
Voltage:	50 V
Material:	High Temperature Thermoplastic
Orientation:	Right Angle
Wire Type:	FFC/FPC
Actuator Type:	Slider
Operating Temperature Range:	-20 - 85 °C
Contact Mating Area Plating:	Gold
Contact Mating Area Plating Thickness:	.102 µm
Number of Contacts Loaded:	36
Mating Cycles:	20
PCB Locator:	No
PCB Retention:	Yes
Polarized to PCB:	Yes
Contact Termination Plating Thickness:	.051 µm
Contact Termination Plating:	Gold
Mated Height:	2 mm
Stackable:	No
PCB Mount Alignment Type:	Surface Mount
Product Name:	Easy-On
Material Flammability Standard:	94V-0
Part Aliases:	0541323662
SKU:	MOL54132-3662

Detailed Description

Introducing the Molex Easy-On FFC/FPC Connector, part number 54132-3662. This sleek connector features a slim 0.50mm pitch, perfect for tight spaces. Designed for easy installation, it boasts a convenient slider actuator and right-angle, bottom contact layout. With 36 gold-plated circuits, it ensures reliable conductivity. The high temperature thermoplastic housing and phosphor bronze contacts guarantee durability, even in harsh environments. Operating flawlessly between -20°C and 85°C, it's suitable for a wide range of applications. RoHS compliant and with a low amperage of .5A, it's both environmentally friendly and energy efficient. Upgrade your connectivity with the Molex Easy-On FFC/FPC Connector.

Frequently Bought Together

Product	Part #	Description	Stock
	Molex 15-31-1026	2.36mm Diameter Standard .093 Pin and Socket Header, Vertical, with Beveled Plastic Peg, 2 Circuits

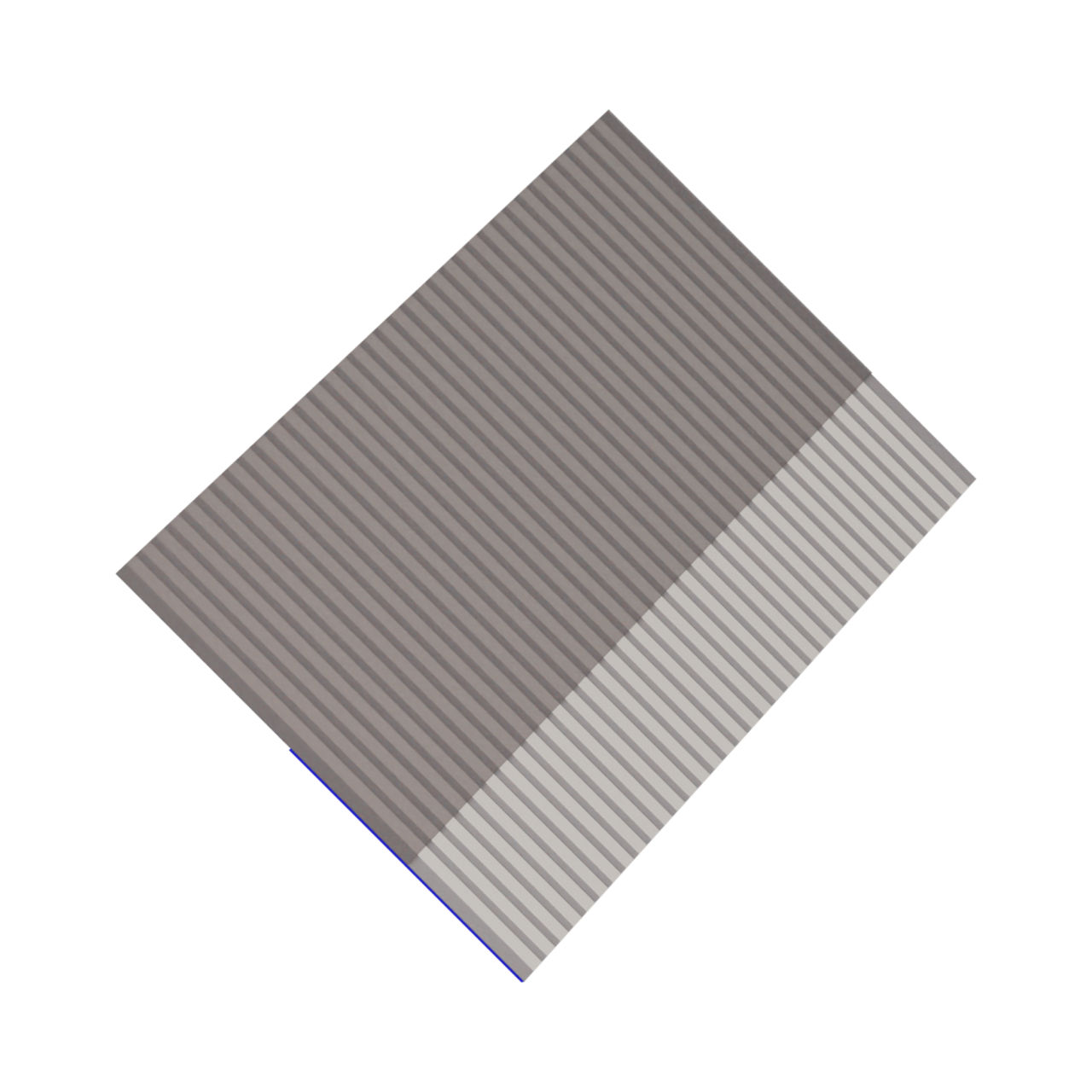

	Molex 15166-0385	0.50mm Pitch Premo-Flex FFC Jumper, Same Side Contacts (Type A), 36 Circuits, 0.076m Cable Length, Cable Thickness 0.12mm, Tin (Sn) Plating
