52745-0897

ICC Number:	MOL52745-0897
Manufacturer:	Molex
Manufacturer Number:	52745-0897
Datasheet:	Datasheet
ECAD Model:

Description:

Easy-On FFC/FPC Connector, 0.50mm Pitch, Slider Series, Right-Angle, Top Contact, 2.00mm Height, 8 Circuits, Gold Plating

More >>

Specifications

Attribute	Value
Product Category:	FFC, FPC, Ribbon & IDT Connectors FFC & FPC Connectors
Manufacturer:	Molex
Manufacturer Part Number:	Molex 52745-0897
Color:	Black, White
Series:	52745
Amperage:	.5 A
Connector Type:	Easy-On
Number of Rows:	1
Contact Material:	Phosphor Bronze
Contact Plating:	Gold
Maximum Operating Temperature:	85 °C
Minimum Operating Temperature:	-40 °C
Body Orientation:	Right Angle
Pitch:	5 mm
Voltage:	50 V
Orientation:	Right Angle
Wire Type:	FFC/FPC
Actuator Type:	Slider
Operating Temperature Range:	-40 - 85 °C
Contact Mating Area Plating:	Gold
Number of Contacts Loaded:	8
Mating Cycles:	20
PCB Locator:	No
PCB Retention:	Yes
Polarized to PCB:	Yes
Contact Termination Plating:	Gold
Mated Height:	2 mm
Stackable:	No
PCB Mount Alignment Type:	Surface Mount
Product Name:	Easy-On
Material Flammability Standard:	94V-0
Part Aliases:	0527450897
SKU:	MOL52745-0897

Detailed Description

Introducing the Molex Easy-On FFC/FPC Connector, part number 52745-0897, a versatile and reliable connectivity solution for your electronic applications. This connector, featuring a slim 0.50mm pitch, is part of the Slider Series, offering convenient right-angle and top contact orientation. With 8 circuits and gold plating, it ensures optimal signal transmission. The black and white housing options, along with a low 2.00mm profile, allow for flexible PCB layouts. Constructed with high-quality phosphor bronze contacts and rated for 0.5A and 50V, this connector guarantees durability and performance in a wide operating temperature range from -40 to 85°C. Perfect for space-constrained designs, it is surface mountable and offers secure PCB retention with polarization. RoHS compliant and with a 20 mating cycle lifespan, the Easy-On FFC/FPC Connector is a dependable choice for your design projects.

Frequently Bought Together

Product	Part #	Description	Stock
	Molex 43650-0516	Micro-Fit 3.0 Vertical Header, 3.00mm Pitch, Single Row, 5 Circuits, with PCB Polarizing Peg, 0.38Âµm Gold Plating, Glow-Wire Capable, Black
	Molex 501461-0491	0.50mm Pitch Easy-On Back Flip FPC Connector, Right-Angle, Surface Mount, Bottom Contact Style, 0.80mm Mated Height, 4 Circuits

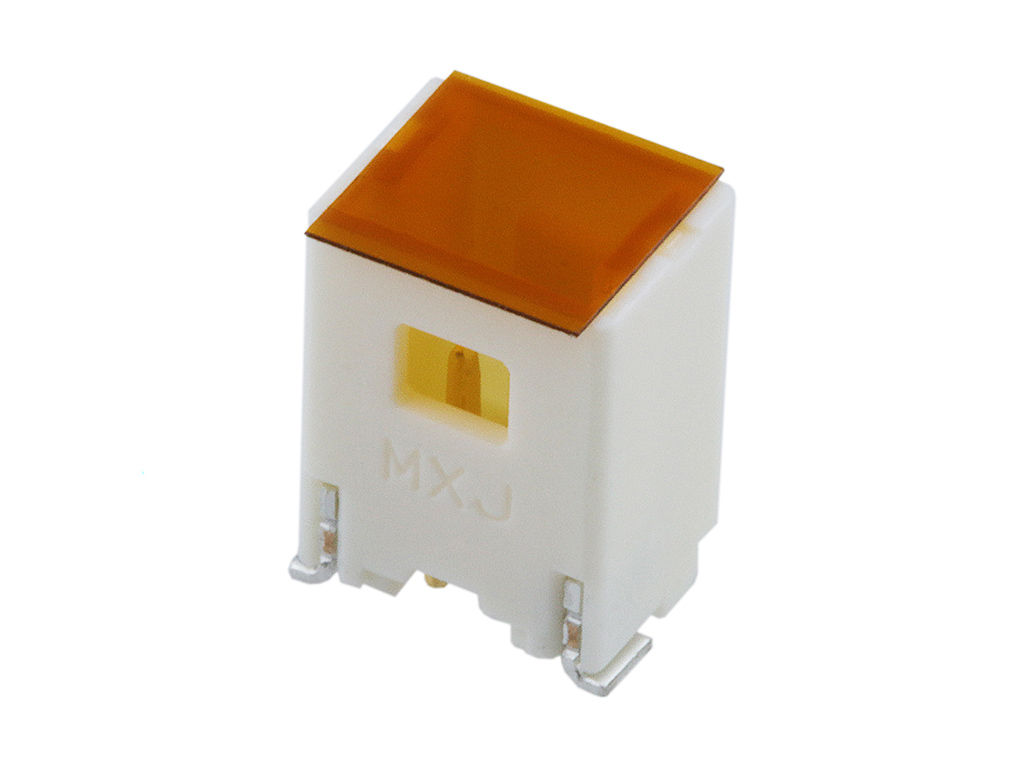

	Molex 504449-0407	1.00mm Pitch, Pico-Clasp PCB Header, Single Row, Vertical, Surface Mount, 0.10Âµm Gold Plated, Friction Lock, 4 Circuits, Natural
	Molex 52271-1069	Easy-On FFC/FPC Connector, 1.00mm Pitch, Slider Series, Right-Angle, Bottom Contact, 3.00mm Height, 10 Circuits, Gold Plating
	Molex 52610-1672	Easy-On FFC/FPC Connector, 1.00mm Pitch, Slider Series, Vertical, 5.75mm Height, 16 Circuits, Gold Plating
	Molex 52746-0871	Easy-On FFC/FPC Connector, 0.50mm Pitch, Slider Series, Right-Angle, Bottom Contact, 2.00mm Height, 8 Circuits, Gold Plating

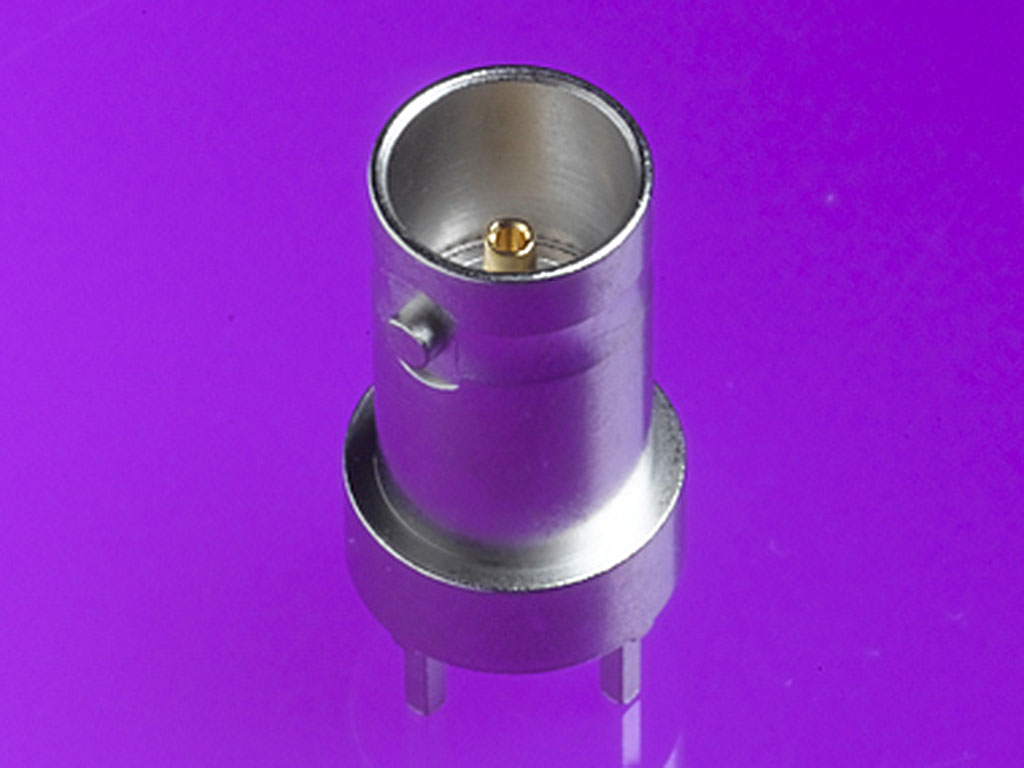

	Molex 73171-1900	BNC Jack, Straight, PCB Receptacle, Through Hole, Die Cast Body, Nickel (Ni) Plated, 16.60mm Height, Bulk Bag 75 Ohms

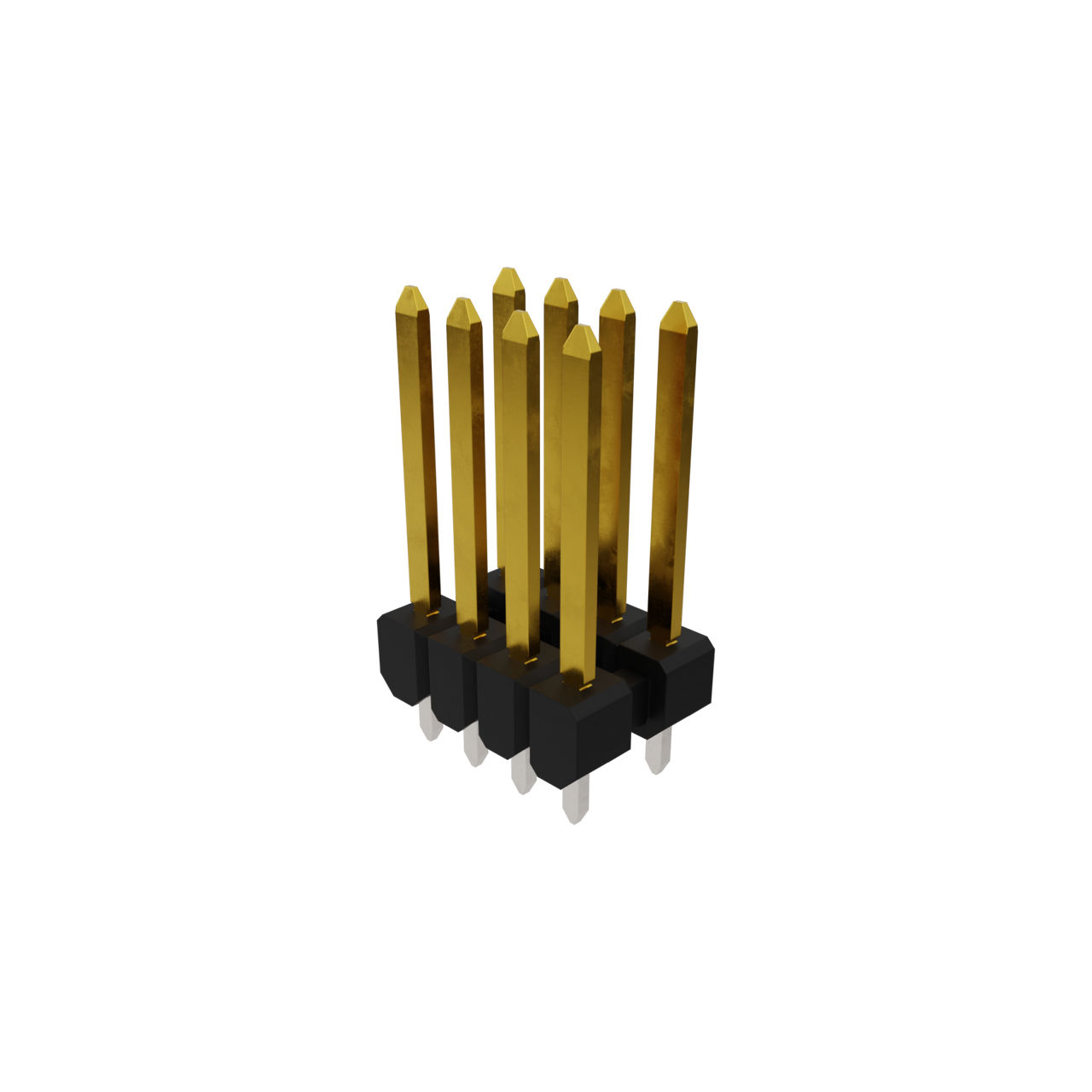

	Molex 75757-5241	MX150 Dual Row Header, Vertical, 8 Circuits, 1.25Âµm Nickel (Ni) Overall, 2.50Âµm Minimum Select Matte Tin (Sn) Plating on Tail, 0.05Âµm Minimum Select Gold (Au) Contact Area, 16.09mm Mating Pin Length, 3.05m
