| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 51238-3011 |
| Color: | Black |
| Series: | 51238 - CRC |
| Amperage: | 1 A, 2.5 A, 2 A, 3 A |
| Connector Type: | CRC |
| Gender: | Receptacle |
| Number of Contacts: | 30 |
| Number of Rows: | 6 |
| Contact Material: | Stainless Steel |
| Body Orientation: | Straight |
| Pitch: | 3 mm |
| Voltage: | 250 V AC/DC |
| Material: | Polyester |
| Orientation: | Vertical |
| Keying: | Yes |
| Component Type: | Housing |
| Packaging: | Tray |
| Operating Temperature Range: | -40 - 105 °C |
| Number of Contacts Loaded: | 30 |
| Mating Cycles: | 100 |
| Panel Mount: | Front Mount, Rear |
| PCB Locator: | No |
| Shielded: | No |
| Polarized to Mate: | Yes |
| Supplier Product Group: | High Speed Cage & Connector Assemblies |
| Connector System: | Panel Mount, Wire to Wire |
| CSA Agency Certification: | LR19980 |
| UL Agency Certification: | E29179 |
| Termination Pitch: | 3 mm |
| Lock to Mating Part: | Yes |
| Waterproof Dustproof: | No |
| Material Flammability Standard: | 94V-0 |
| Part Aliases: | 0512383011 |
| SKU: | MOL51238-3011 |
51238-3011
Specifications
Detailed Description
Introducing the CRC Shielded Rectangular I/O Receptacle Housing, designed for female terminals with 30 circuits for signal transmission. Featuring a standard polarization type and constructed with durable black polyester material, this housing ensures reliable performance in various applications. With a straight body orientation, 3mm pitch, and vertical orientation, it offers versatility in installation. Rated for 250V AC/DC and 3A, with UL and CSA certifications, this housing guarantees safety and quality compliance. Ideal for panel or front mount with rear PCB locator, it facilitates easy integration. With its high-speed connectivity and robust construction, the CRC 51238-3011 is the perfect solution for demanding industrial environments.
Frequently Bought Together
| Product | Part # | Description | Stock |
|---|---|---|---|
 | Molex 09-50-8043 | KK 3.96mm Crimp Terminal Housing, Friction Ramp, 4 Circuits, Natural |  |
 | Molex 19003-0042 | InsulKrimp Quick Disconnect, Female, for 14-16 (2.00-1.30mm?), Mylar Tape, Tab 6.35 x 0.81mm | |
 | Molex 19003-0071 | InsulKrimp Quick Disconnect, Female, for 24-26 (0.20-0.12mm?), Box, Tab 6.35 x 0.81mm | |
 | Molex 19115-0009 | Avikrimp Snap Spade Terminal for 18-22 AWG Wire | |
 | Molex 22-01-2047 | KK 254 Crimp Housing, Friction Ramp, 4 Circuits, Natural | |
 | Molex 22-01-3047 | KK 254 Crimp Housing, Friction Ramp with Polarizing Ribs, 4 Circuits, Natural | |
 | Molex 39-01-4031 | Mini-Fit Jr. Receptacle Housing, Single Row, 3 Circuits, UL 94V-0, Natural | |
 | Molex 39-01-4033 | Mini-Fit Jr. Plug Housing, Single Row, 3 Circuits, UL 94V-0, with Panel Mounting Ears, Natural | |
 | Molex 43020-0200 | Micro-Fit 3.0 Plug Housing, Dual Row, 2 Circuits, UL 94V-0, Panel Mount Ears, Low-Halogen, Black | |

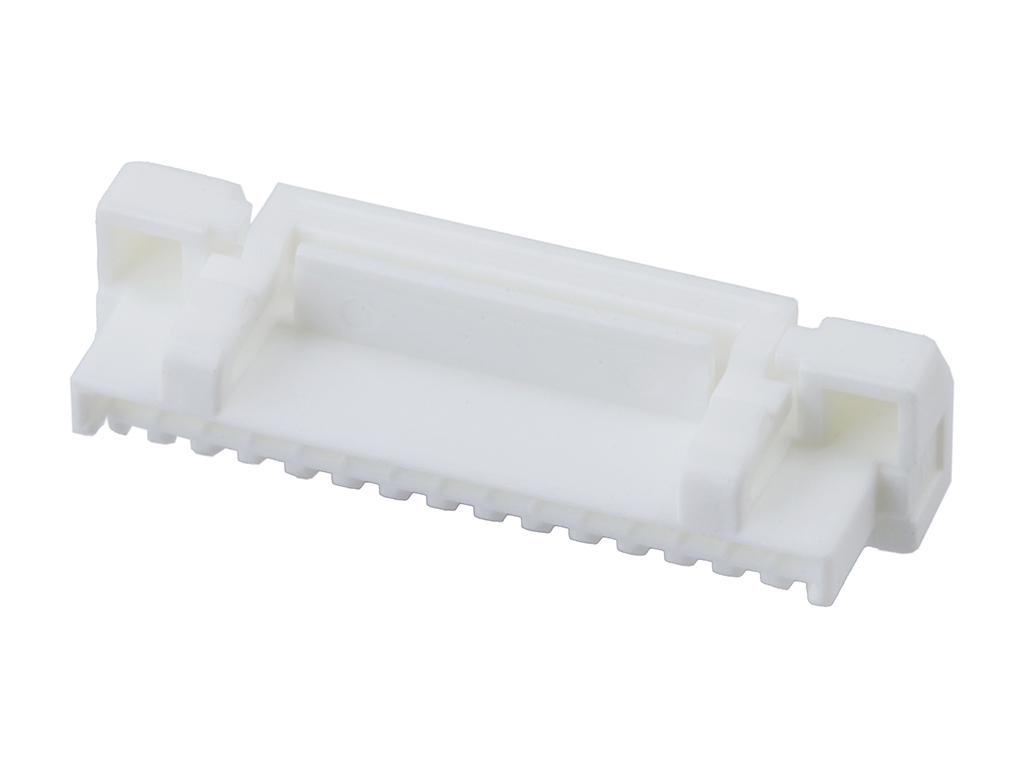

 | Molex 502380-1500 | 1.25mm Pitch CLIK-Mate Wire-to-Board Housing, Single Row, Positive Lock, 15 Circuits, White | |
