50802-8100

Heilind Number:	MOL50802-8100
Manufacturer:	Molex
Manufacturer Number:	50802-8100
Datasheet:	RoHS Certificate of Compliance
ECAD Model:

Description:

2.50mm Pitch Crimp Terminal, Phosphor Bronze, Bag

More >>

Specifications

Attribute	Value
Product Category:	Pin & Socket Housings & Contacts Pin & Socket Contacts
Manufacturer:	Molex
Manufacturer Part Number:	Molex 50802-8100
Series:	50802 - Mini-Latch
Amperage:	3 A
Connector Type:	Mini-Latch
Gender:	Female
Termination Method:	Crimp or Compression
Contact Material:	Phosphor Bronze
Contact Plating:	Tin
Packaging:	Bag
Circuit Application:	Signal
Contact Mating Area Plating:	Tin
Contact Mating Area Plating Thickness:	.889 µm
Mating Cycles:	30
Contact Termination Plating Thickness:	.914 µm
Wire Size:	22 AWG, 24 AWG, 26 AWG, 28 AWG
Connector System:	Wire to Board, Wire to Wire
Contact Termination Plating:	Tin
Wire Insulation Diameter:	1.15 - 1.9 mm
Part Aliases:	0508028100
SKU:	MOL50802-8100

Detailed Description

Introducing the Molex 50802-8100 Mini-Latch Female Connector, a versatile and reliable solution for your signal circuit applications. With a low amperage rating of 3A, this connector is perfect for small-scale power and data connections. Featuring a durable phosphor bronze contact material with tin plating, it ensures excellent conductivity and corrosion resistance. The crimp or compression termination method accommodates various wire sizes (24-28 AWG), offering flexibility in installation. Each connector is RoHS compliant, guaranteeing its environmental responsibility. Trust the Molex 50802-8100 for seamless wire-to-wire or wire-to-board connections in your projects.

Frequently Bought Together

Product	Part #	Description	Stock

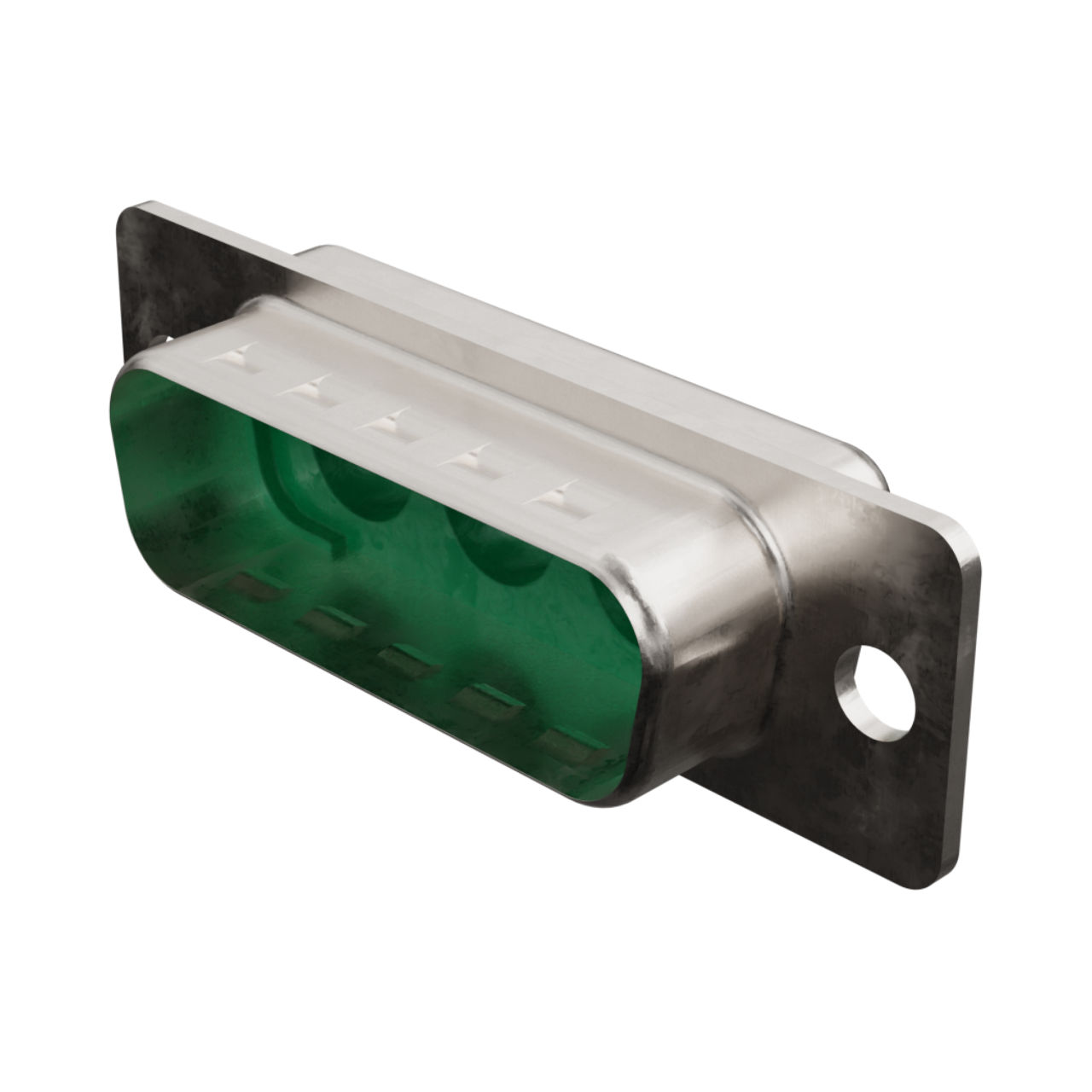

	Molex 172704-0031	FCT Mixed Layout D-Sub Housing, Male, Tin-plated Shell with Dimples, 3 Circuits
	Molex 172704-0038	FCT Mixed Layout D-Sub Housing, Female, Tin-plated Shell without Dimples, 8 Circuits
	Molex 172704-0097	FCT Metal Backshell for D-Sub Connector, Shell Size 2, 45° Angle Cable Outlet, Large Inner Chamber, with Rubber Bushing and #4-40 Locking Screws
	Molex 172704-0098	FCT Metal Backshell for D-Sub Connector, Shell Size 2, Straight Cable Outlet, Large Inner Chamber, with Rubber Bushing and #4-40 Locking Screws
	Molex 172704-0150	FCT High Power Contact, Female, Straight, Crimp, 0.8µm Gold Mating Plating, 0.2µm Gold Termination Plating, Split Tine, 10A, 20-16 AWG
	Molex 173111-0060	FCT Metal Backshell for D-Sub Connector, Shell Size 2, Straight Large Diameter Cable Outlet, Large Inner Chamber, with Rubber Bushing and #4-40 Locking Screws
	Molex 19003-0036	InsulKrimp Quick Disconnect, Female, for 18-22 (0.80-0.35mm?), Box, Tab 5.21 x 0.51mm
	Molex 19003-0040	InsulKrimp Female Quick Disconnect, for 14-16 AWG Wire

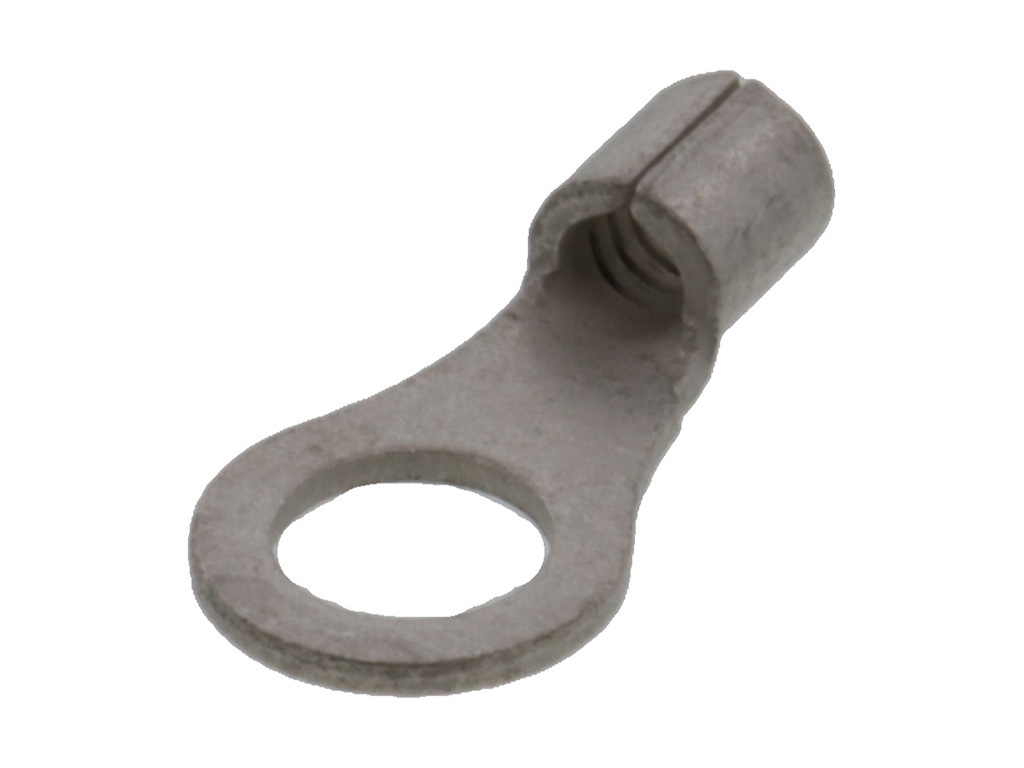

	Molex 19069-0116	Krimptite Ring Tongue Terminal for 14-16 AWG Wire
