| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 172704-0150 |
| Series: | 172704 |
| Amperage: | 10 A |
| Gender: | Female |
| Termination Method: | Crimp |
| Contact Material: | Copper Alloy |
| Contact Plating: | Gold Over Nickel |
| Contact Type: | High Power |
| Orientation: | Straight |
| Operating Temperature Range: | -55 - 155 °C |
| Contact Mating Area Plating Thickness: | .8 µm |
| Mating Cycles: | 500 |
| Type: | Mixed Layout |
| Contact Termination Plating Thickness: | .2 µm |
| Wire Size: | 16 AWG, 18 AWG, 20 AWG |
| Retainer Clip Material: | Copper Alloy |
| Product Name: | FCT Products |
| Part Aliases: | 1727040150 FMP002S103 |
| SKU: | MOL172704-0150 |
172704-0150
Specifications
Detailed Description
Introducing the 172704-0150 FCT High Power Contact, a female connector designed for robust and efficient power transmission. With a straight orientation and crimp termination method, this contact ensures secure and reliable connections in a variety of applications. Featuring 0.80µm gold plating over nickel, it offers excellent conductivity and corrosion resistance, ideal for harsh environments. Accommodating 16-20 AWG wires, with a current rating of 10 A, this contact is perfect for high power applications. With a wide operating temperature range of -55 to 155 °C, and a mating cycle of 500, it guarantees long-lasting performance. RoHS compliant and part of the 172704 series, the FCT High Power Contact is a top choice for power connectors, offering quality and durability.
Frequently Bought Together
| Product | Part # | Description | Stock |
|---|---|---|---|
 | Molex 172704-0031 | FCT Mixed Layout D-Sub Housing, Male, Tin-plated Shell with Dimples, 3 Circuits |  |

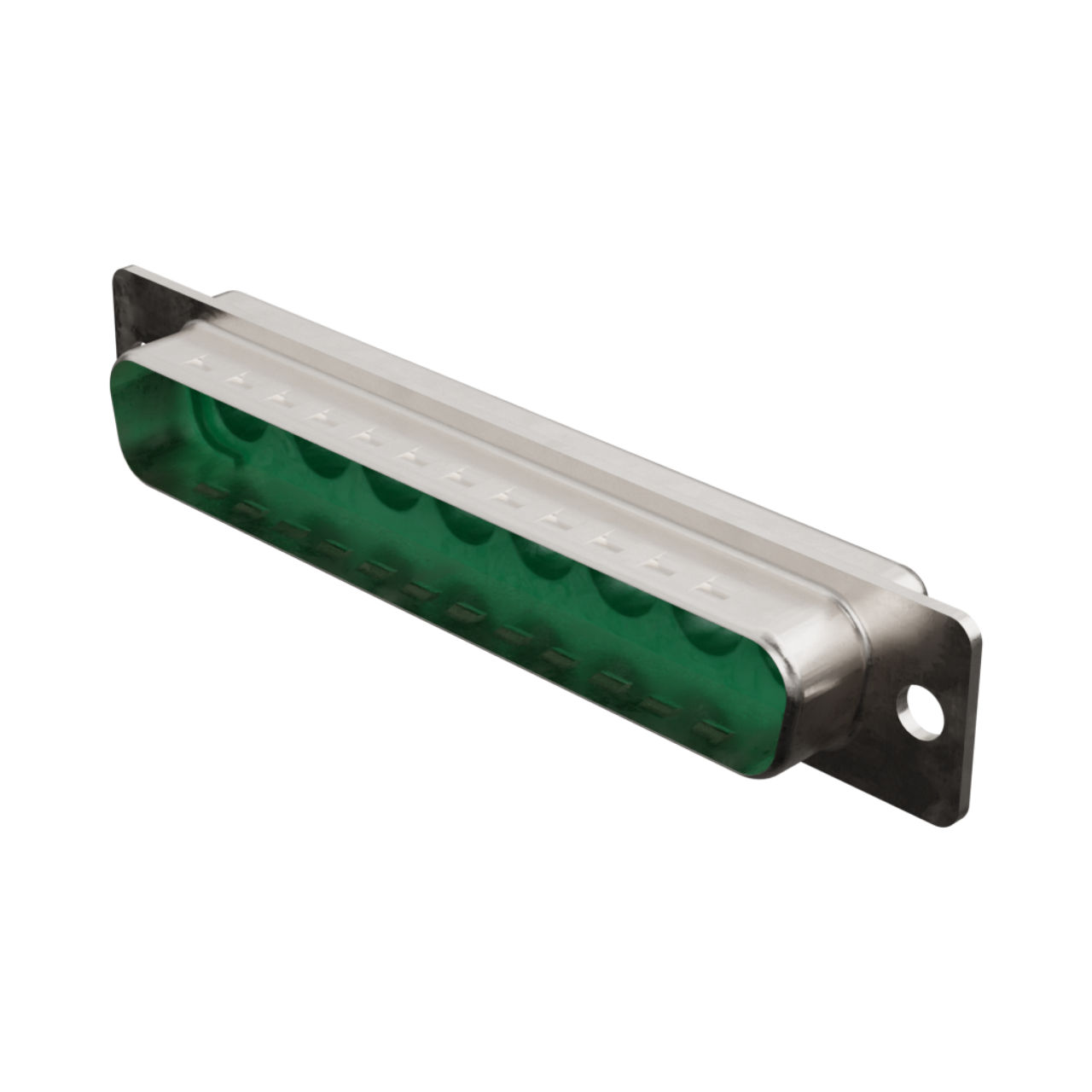

 | Molex 172704-0037 | FCT Mixed Layout D-Sub Housing, Male, Tin-plated Shell with Dimples, 8 Circuits | |
 | Molex 172704-0038 | FCT Mixed Layout D-Sub Housing, Female, Tin-plated Shell without Dimples, 8 Circuits | |
 | Molex 172704-0041 | FCT Mixed Layout D-Sub Housing, Male, Tin-Plated Shell with Dimples, Polarized, 2 Circuits Unloaded, Black Insulator | |
 | Molex 172704-0096 | FCT Metal Backshell for D-Sub Connector, Shell Size 1, Straight Cable Outlet, Large Inner Chamber, with Rubber Bushing and #4-40 Locking Screws | |
 | Molex 172704-0097 | FCT Metal Backshell for D-Sub Connector, Shell Size 2, 45° Angle Cable Outlet, Large Inner Chamber, with Rubber Bushing and #4-40 Locking Screws | |
 | Molex 172704-0101 | FCT Metal Backshell for D-Sub Connector, Shell Size 4, 45° Angle Cable Outlet, Large Inner Chamber, with Rubber Bushing and #4-40 Locking Screws | |
 | Molex 172704-0142 | FCT High Power Contact, Male, Straight, Crimp, 0.8µm Gold Mating Plating, 0.2µm Gold Termination Plating, 10A, 20-16 AWG | |
 | Molex 172704-0143 | FCT High Power Contact, Male, Straight, Crimp, 0.8µm Gold Mating Plating, 0.2µm Gold Termination Plating, 20A, 14-12 AWG | |
 | Molex 172704-0151 | FCT High Power Contact, Female, Straight, Crimp, 0.80µm Gold Plating, 12-14 AWG | |
 | Molex 173107-0058 | FCT Mixed Layout D-Sub Housing, Female, Tin-plated Shell without Dimples, Polarized, 3 Circuits | |
 | Molex 173107-0064 | FCT Mixed Layout D-Sub Connector, Female, Straight, Solder Cup, Gold Plating, Tin-Plated Shell, 13 Circuits Max, 10 Signal Contacts Loaded, Green Insulator | |
 | Molex 173111-0061 | FCT Metal Backshell for D-Sub Connector, Shell Size 2, 45° Angle Large Diameter Cable Outlet, Large Inner Chamber, with Rubber Bushing and #4-40 Locking Screws | |
 | Molex 173111-0065 | FCT Metal Backshell for D-Sub Connector, Shell Size 4, Straight Large Diameter Cable Outlet, Large Inner Chamber, with Rubber Bushing and #4-40 Locking Screws | |
 | Molex 173112-0066 | FCT Plastic Locking Hook, for Front or Rear Mounting, Black | |
 | Molex 173112-0227 | HPD High-Density Machined Crimp Contact, Female, 0.80 | |
 | Molex 39-01-2065 | Mini-Fit Jr. Receptacle Housing, Dual Row, 6 Circuits, UL 94V-0, Natural | |
Product Change Notice
| Effective Date | Description of Change | Download | |||
|---|---|---|---|---|---|
| 07/15/2023 | 513774 - Packaging Method/Quantity Changing. The purpose of the change is to align , commanise and make the MLQ and DU global. As a result there is DU change, however the Fit, Form and Function remains the same. The Reason for the change is a corrective action, in that to reduce the incoherence caused between DU and MLQ. The Change is implemented by standardizing the MLQ and DU. | Download | |||
| 02/15/2016 | FCT20160215 - FCT To Molex Part Numbers. | Download | |||
