| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 505570-0401 |
| Color: | Black |
| Series: | 505570 - Micro-Lock PLUS |
| Connector Type: | Micro-Lock PLUS |
| Gender: | Receptacle |
| Number of Contacts: | 4 |
| Number of Rows: | 1 |
| Pitch: | 2 mm |
| Material: | Polyester |
| Keying: | No |
| Operating Temperature Range: | -40 - 105 °C |
| Circuit Application: | Signal |
| Polarized to Mate: | Yes |
| Connector System: | Wire to Board |
| Termination Pitch: | 2 mm |
| Glow Wire Capable: | No |
| Lock to Mating Part: | Yes |
| Part Aliases: | 5055700401 |
| SKU: | MOL505570-0401 |
505570-0401
Specifications
Detailed Description

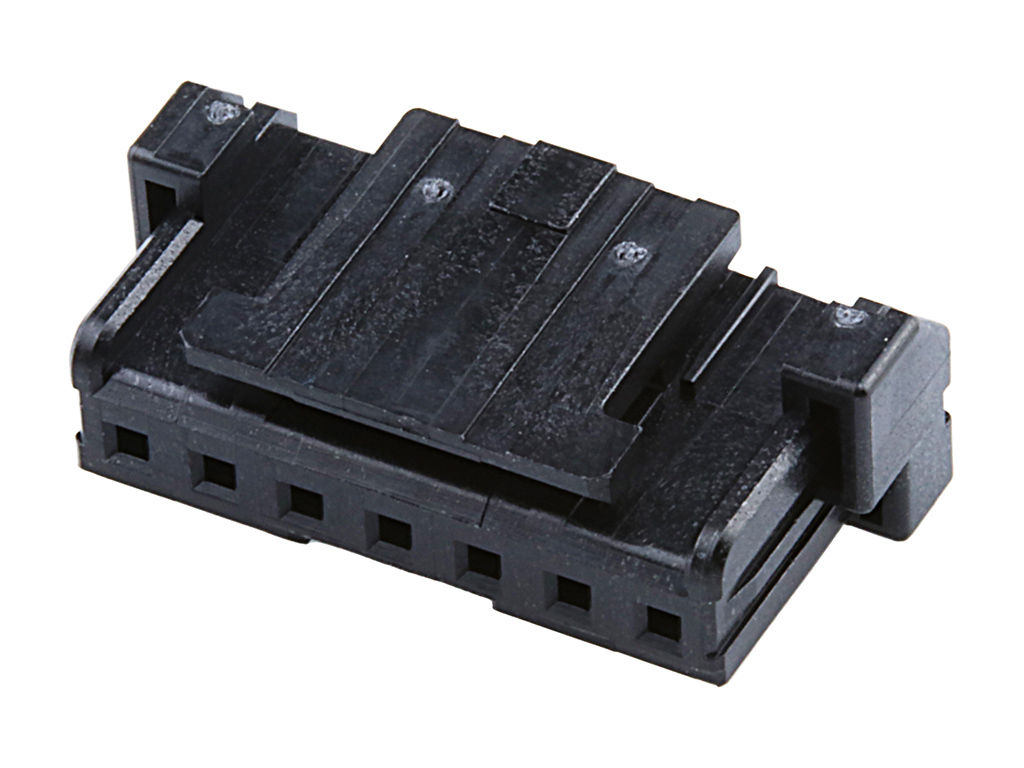

Introducing the 505570-0401 Micro-Lock PLUS Receptacle Housing, a high-performance connectivity solution for your electronic devices. With a compact 2.00mm pitch and a single row design, this housing is perfect for space-constrained applications. Featuring a secure Positive Lock mechanism, it ensures reliable connections in demanding environments. The black polyester construction offers durability and thermal stability, with an operating temperature range of -40 to 105 °C. With 4 circuits for signal transmission, this connector is essential for your wire to board setups. RoHS compliant and with a lock to mating part feature, the 505570-0401 guarantees both performance and safety in your designs. Upgrade to the Micro-Lock PLUS Connector System today for seamless connectivity.
