| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 505151-1000 |
| Color: | Black |
| Series: | 505151 - DuraClik |
| Connector Type: | DuraClik |
| Gender: | Receptacle |
| Number of Contacts: | 10 |
| Number of Rows: | 1 |
| Pitch: | 2 mm |
| Material: | Polyester Alloy |
| Number of Ports: | 1 |
| Keying: | No |
| Operating Temperature Range: | -40 - 125 °C |
| Circuit Application: | Signal |
| Polarized to Mate: | Yes |
| Connector System: | Wire to Board |
| Termination Pitch: | 2 mm |
| Glow Wire Capable: | No |
| Lock to Mating Part: | Yes |
| Stackable: | No |
| Part Aliases: | 5051511000 |
| SKU: | MOL505151-1000 |
505151-1000
Specifications
Detailed Description
Introducing the 505151-1000, a high-performance DuraClik TPA Wire-to-Board Receptacle Housing designed for seamless signal transmission in electronic applications. With 10 circuits housed in a sleek black polyester alloy casing, this connector boasts durability and reliability in any operating environment. Featuring a 2mm pitch and polarized mating, it ensures secure and precise connections every time. Engineered for optimal performance, this RoHS-compliant housing is perfect for use in various industries, from automotive to consumer electronics. Trust in the 505151-1000 for your connectivity needs and experience seamless operation like never before.
Frequently Bought Together
| Product | Part # | Description | Stock |
|---|---|---|---|
 | Molex 19164-0062 | Perma-Seal Ring Tongue Terminal for 10-12 AWG Wire, Stud Size 8 (M4) |  |
 | Molex 19205-0004 | VersaKrimp Parallel Splice for 8 AWG Wire | |
 | Molex 19429-0016 | MX150L 16 Circuit Panel Mount Plug for 14-22 AWG Wire, Rear Mount Flange Assembly, without Gasket, Black | |
 | Molex 19435-1014 | MX150L 10 Circuit Rear Mount Flange Plug for 18-22 AWG Wire, without Gasket, Black | |
 | Molex 39-01-3028 | Mini-Fit Jr. Receptacle Housing, Dual Row, 2 Circuits, UL 94V-0, Natural | |
 | Molex 39-01-3049 | Mini-Fit Jr. Plug Housing, Dual Row, 4 Circuits, UL 94V-0, without Panel Mounting Ears, Natural | |
 | Molex 47725-9010 | MX150 Male Connector, Panel Mount, Dual Row, 12 Circuits, Polarization A, UL 94V-0, Black Housing, Blue Gasket | |
 | Molex 47725-9020 | MX150 Male Connector, Panel Mount, Dual Row, 12 Circuits, Polarization B, UL 94V-0, Light Gray Housing, Blue Gasket | |
 | Molex 505151-0400 | DuraClik TPA Wire-to-Board Receptacle Housing, 4 Circuits, Black | |
 | Molex 505151-0900 | DuraClik TPA Wire-to-Board Receptacle Housing, 9 Circuits, Black | |
 | Molex 505151-1200 | DuraClik TPA Wire-to-Board Receptacle Housing, 12 Circuits, Black | |

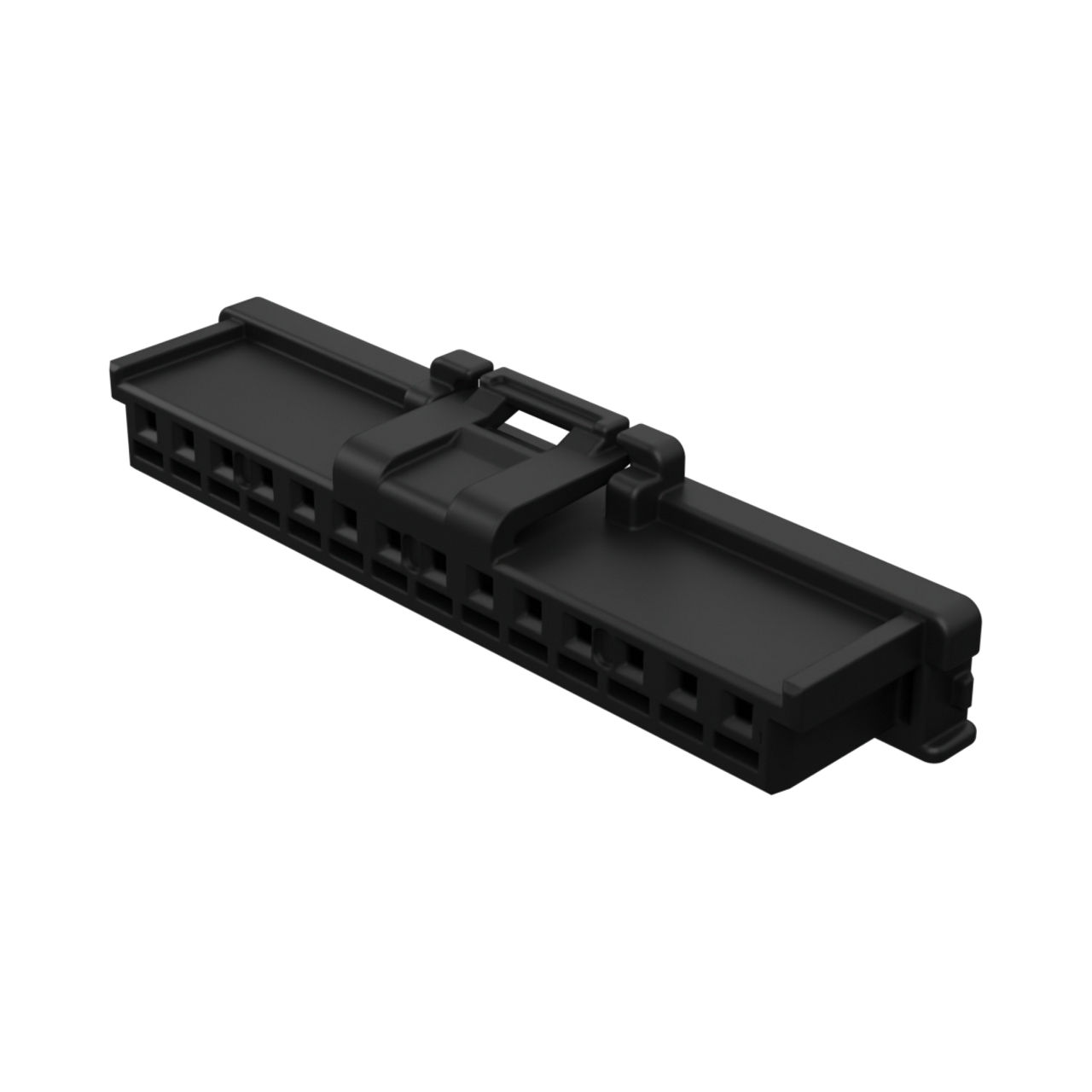

 | Molex 505151-1400 | DuraClik TPA Wire-to-Board Receptacle Housing, 14 Circuits, Black | |
 | Molex 505152-0400 | DuraClik Wire-to-Board 2-Way Terminal Position Assurance (TPA) Retainer, 4 Circuits | |
 | Molex 505152-0500 | DuraClik Wire-to-Board 2-Way Terminal Position Assurance (TPA) Retainer, 5 Circuits | |
 | Molex 505152-1000 | DuraClik Wire-to-Board 2-Way Terminal Position Assurance (TPA) Retainer, 10 Circuits | |
 | Molex 505152-1200 | DuraClik Wire-to-Board 2-Way Terminal Position Assurance (TPA) Retainer, 12 Circuits | |

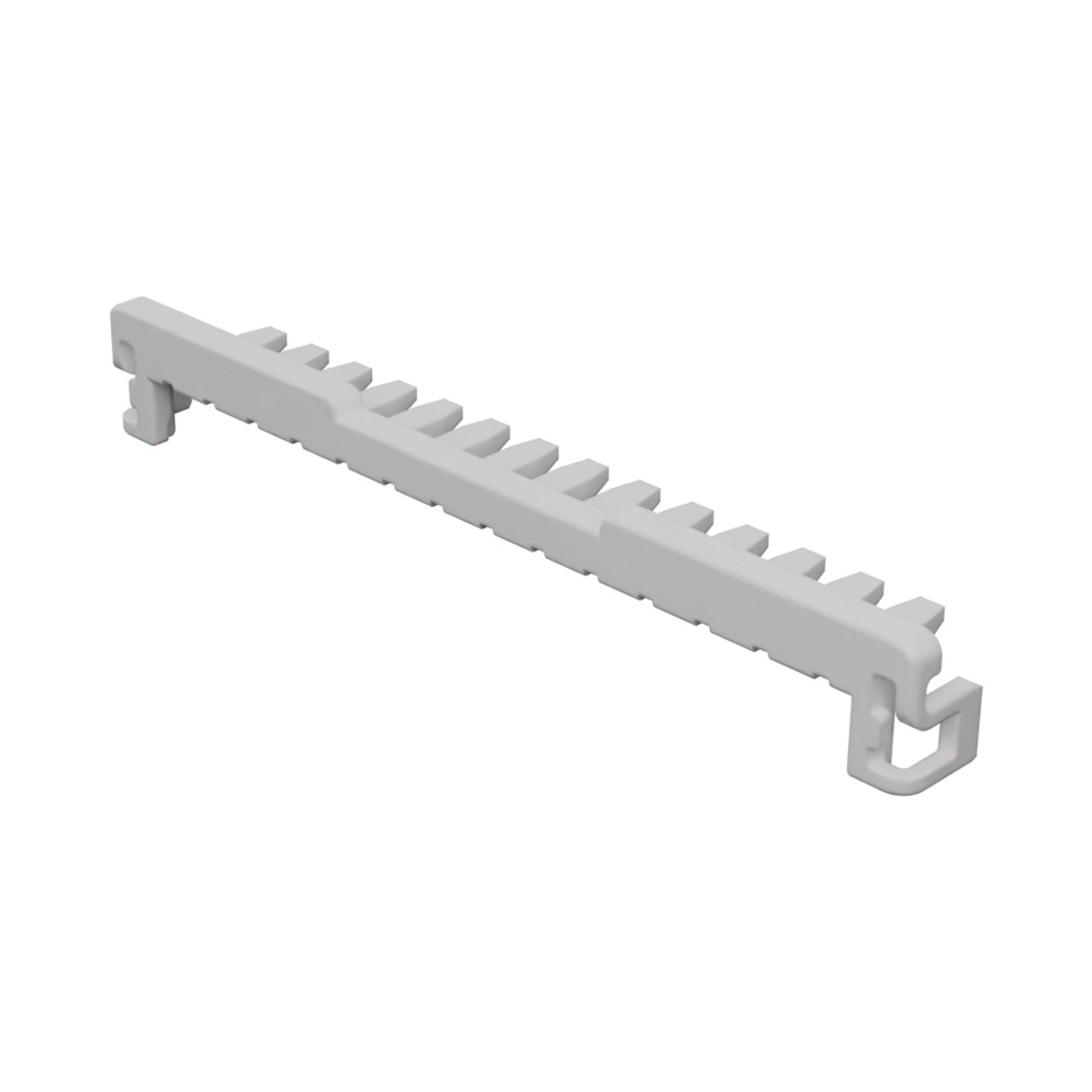

 | Molex 505152-1400 | DuraClik Wire-to-Board 2-Way Terminal Position Assurance (TPA) Retainer, 14 Circuits | |
Product Change Notice
| Effective Date | Description of Change | Download | |||
|---|---|---|---|---|---|
| 10/03/2022 | 512508 - Change Supplier. there is unstable material delivery issue in order to support parts with out any delay the material will be replaced | Download | |||
| 03/07/2022 | Toray Resin Quality Notice - Recently, Toray Industries, Inc. issued a statement advising that certain resin products were improperly identified by Toray as having received certification from Underwriters Laboratories (UL) | Download | |||
Availability
Immediate Shipment:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
Additional Resources
| Attribute | Value |
|---|---|
| Molex: | 505151-1000 |
| Other Names: | 5051511000 |
