Attribute | Value |
---|---|
Product Category: | |
Manufacturer: | Molex |
Manufacturer Part Number: | Molex 505151-0400 |
Color: | Black |
Series: | 505151 - DuraClik |
Connector Type: | DuraClik |
Gender: | Receptacle |
Number of Contacts: | 4 |
Number of Rows: | 1 |
Pitch: | 2 mm |
Material: | Polyester Alloy |
Number of Ports: | 1 |
Keying: | No |
Packaging: | Bag |
Operating Temperature Range: | -40 - 125 °C |
Circuit Application: | Signal |
Polarized to Mate: | Yes |
Connector System: | Wire to Board |
Termination Pitch: | 2 mm |
Glow Wire Capable: | No |
Lock to Mating Part: | Yes |
Stackable: | No |
Product Name: | DuraClik |
Part Aliases: | 5051510400 |
SKU: | MOL505151-0400 |
505151-0400
Specifications
Detailed Description
The DuraClik TPA Wire-to-Board Receptacle Housing in black is a durable and reliable connector for your signal transmission needs. With 4 circuits and a pitch of 2mm, it ensures efficient connectivity in your electronic devices. Made of polyester alloy, it can withstand operating temperatures ranging from -40 to 125 °C. This housing is polarized to mate, offering secure connections, and features a locking mechanism for added stability. RoHS compliant, it is environmentally friendly, making it an ideal choice for various applications in industries such as automotive, telecommunications, and consumer electronics. Trust in the DuraClik for seamless wire-to-board connections.
Frequently Bought Together
Product | Part # | Description | Stock |
---|---|---|---|
![]() | Molex 105325-1002 | Nano-Fit Terminal Position Assurance (TPA) Retainer, 2.50mm Pitch, 2 Circuits, Black | ![]() |
![]() | Molex 19205-0004 | VersaKrimp Parallel Splice for 8 AWG Wire | ![]() |
![]() | Molex 19429-0016 | MX150L 16 Circuit Panel Mount Plug for 14-22 AWG Wire, Rear Mount Flange Assembly, without Gasket, Black | ![]() |
![]() | Molex 19435-1014 | MX150L 10 Circuit Rear Mount Flange Plug for 18-22 AWG Wire, without Gasket, Black | ![]() |
![]() | Molex 39-01-3028 | Mini-Fit Jr. Receptacle Housing, Dual Row, 2 Circuits, UL 94V-0, Natural | ![]() |
![]() | Molex 39-01-3049 | Mini-Fit Jr. Plug Housing, Dual Row, 4 Circuits, UL 94V-0, without Panel Mounting Ears, Natural | ![]() |
![]() | Molex 47725-9010 | MX150 Male Connector, Panel Mount, Dual Row, 12 Circuits, Polarization A, UL 94V-0, Black Housing, Blue Gasket | ![]() |
![]() | Molex 47725-9020 | MX150 Male Connector, Panel Mount, Dual Row, 12 Circuits, Polarization B, UL 94V-0, Light Gray Housing, Blue Gasket | ![]() |

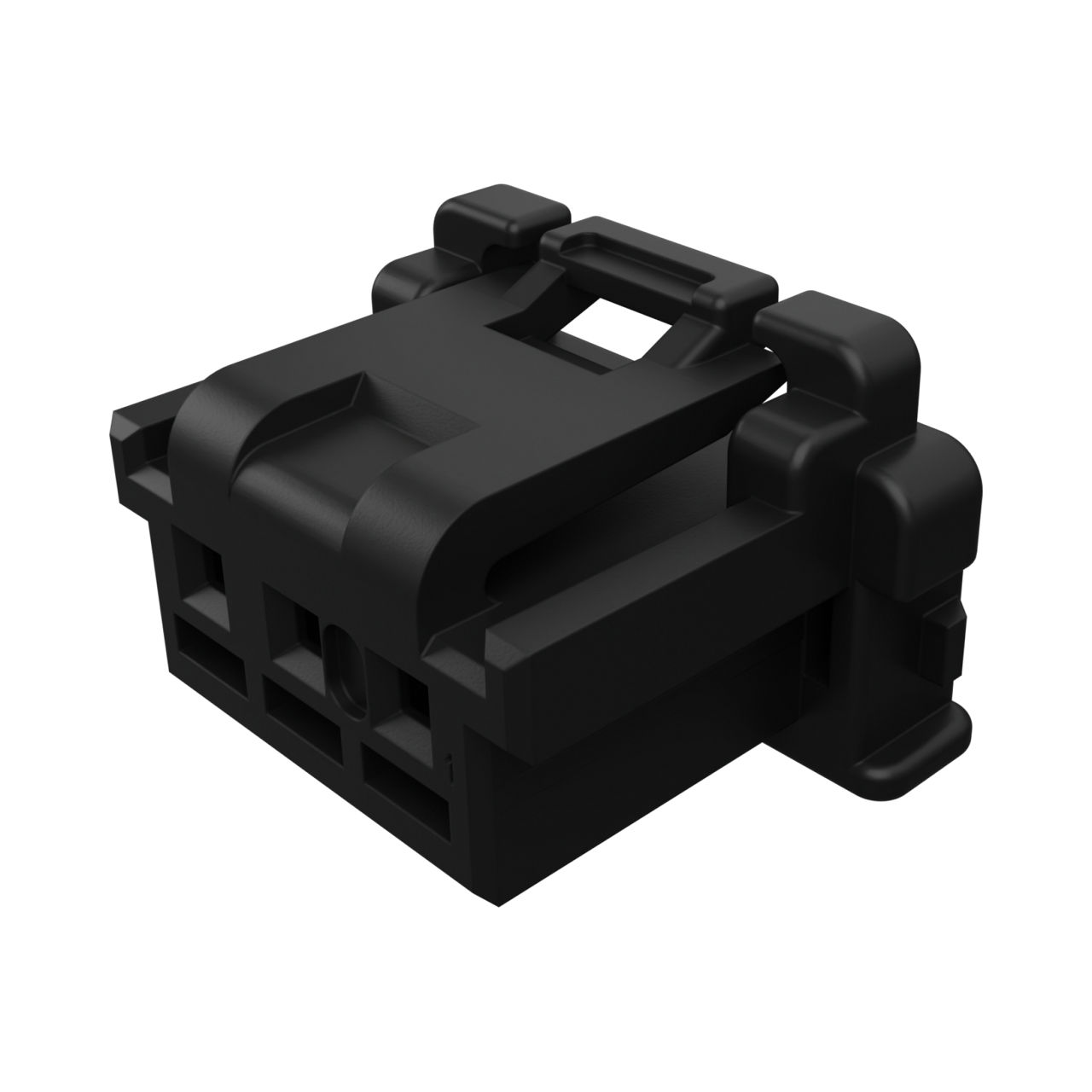

![]() | Molex 505151-0300 | DuraClik TPA Wire-to-Board Receptacle Housing, 3 Circuits, Black | ![]() |

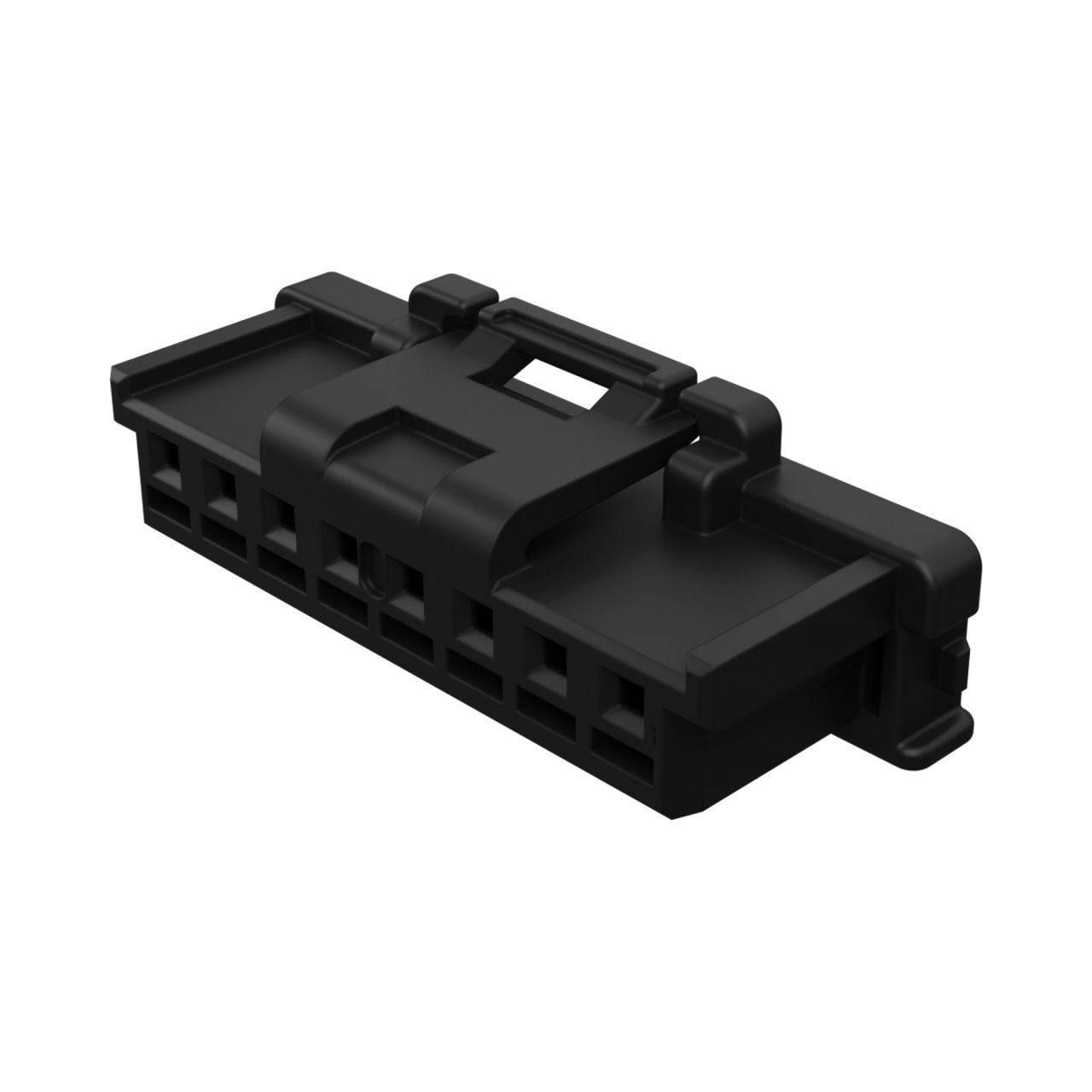

![]() | Molex 505151-0800 | DuraClik TPA Wire-to-Board Receptacle Housing, 8 Circuits, Black | ![]() |
![]() | Molex 505151-0900 | DuraClik TPA Wire-to-Board Receptacle Housing, 9 Circuits, Black | ![]() |
![]() | Molex 505151-1000 | DuraClik TPA Wire-to-Board Receptacle Housing, 10 Circuits, Black | ![]() |
![]() | Molex 505151-1200 | DuraClik TPA Wire-to-Board Receptacle Housing, 12 Circuits, Black | ![]() |
![]() | Molex 505152-0400 | DuraClik Wire-to-Board 2-Way Terminal Position Assurance (TPA) Retainer, 4 Circuits | ![]() |
![]() | Molex 505152-1000 | DuraClik Wire-to-Board 2-Way Terminal Position Assurance (TPA) Retainer, 10 Circuits | ![]() |
![]() | Molex 505152-1200 | DuraClik Wire-to-Board 2-Way Terminal Position Assurance (TPA) Retainer, 12 Circuits | ![]() |
![]() | Molex 505153-8000 | Cut Strip - DuraClik TPA Wire-to-Board Crimp Receptacle Terminal, Female, Tin Plating | ![]() |
Product Change Notice
Effective Date | Description of Change | Download | |||
---|---|---|---|---|---|
03/07/2022 | Toray Resin Quality Notice - Recently, Toray Industries, Inc. issued a statement advising that certain resin products were improperly identified by Toray as having received certification from Underwriters Laboratories (UL) | Download | |||
11/01/2021 | 510856 - Change Supplier. there is a material shortage issue no guarantee of recovery time frames molex decided to change materials in order to secure for future safe delivery also decided to add two copy dies for terminals. adding alternative resin and add two capacity dies. | Download | |||
07/01/2021 | 510049 - Change to Product. Remove the concave and then return to the original size of the air venting to reduce quality risks of bubble & gate flash. | Download |
