| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 502585-0270 |
| Color: | Beige |
| Series: | 502585 - CLIK-Mate |
| Amperage: | 2 A |
| Connector Type: | CLIK-Mate |
| Number of Contacts: | 2 |
| Number of Rows: | 1 |
| Termination Method: | Surface Mount |
| Contact Material: | Copper Alloy |
| Maximum Operating Temperature: | 105 °C |
| Minimum Operating Temperature: | -40 °C |
| Pitch: | 1.5 mm |
| Voltage: | 100 V |
| Orientation: | Right Angle |
| Keying: | Yes |
| Operating Temperature Range: | -40 - 105 °C |
| Circuit Application: | Signal |
| Contact Mating Area Plating: | Tin |
| Number of Contacts Loaded: | 2 |
| Mating Cycles: | 30 |
| PCB Locator: | No |
| PCB Retention: | With |
| Polarized to PCB: | Yes |
| Polarized to Mate: | Yes |
| Supplier Product Group: | PCB Socket Receptacles |
| Connector System: | Wire to Board |
| Glow Wire Capable: | No |
| Guide to Mating Part: | Yes |
| Lock to Mating Part: | Yes |
| Mated Height: | 6.4 mm |
| Stackable: | No |
| Material Flammability Standard: | SC-0 |
| Part Aliases: | 5025850270 |
| SKU: | MOL502585-0270 |
502585-0270
| Heilind Number: | MOL502585-0270 |
| Manufacturer: | Molex |
| Manufacturer Number: | 502585-0270 |
| Datasheet: | Application Specification |
| ECAD Model: | |
Description:
1.50mm Pitch CLIK-Mate Wire-to-Board PCB Receptacle, Single Row, Surface Mount, Right-Angle, Tin Plating, 2 Circuits
More >>Specifications
Detailed Description
Introducing the 502585-0270, a high-performance Beige CLIK-Mate connector designed for seamless wire-to-board connectivity in electronic applications. With two contacts loaded in a single row, this surface mount receptacle ensures efficient signal transmission with a low 2A amperage. Crafted from durable copper alloy with tin plating on the contact mating area, it guarantees reliable performance even in demanding environments. Featuring a right-angle orientation and polarized design, it offers easy and secure mating, while its SC-0 material flammability standard ensures safety. Operating flawlessly in a wide temperature range from -40 to 105 °C and RoHS compliant, this connector is a dependable choice for your PCB assembly needs. Explore the versatility and quality of the 502585-0270 CLIK-Mate connector today.
Frequently Bought Together
| Product | Part # | Description | Stock |
|---|---|---|---|
 | Molex 105310-1204 | Nano-Fit Vertical Header, Through Hole, 2.50mm Pitch, Dual Row, 4 Circuits, with Kinked Pins, 0.38 |  |
 | Molex 151118-1004 | 2.00mm Pitch Milli-Grid Header, Surface Mount, Dual Row, Vertical, 2.00 | |

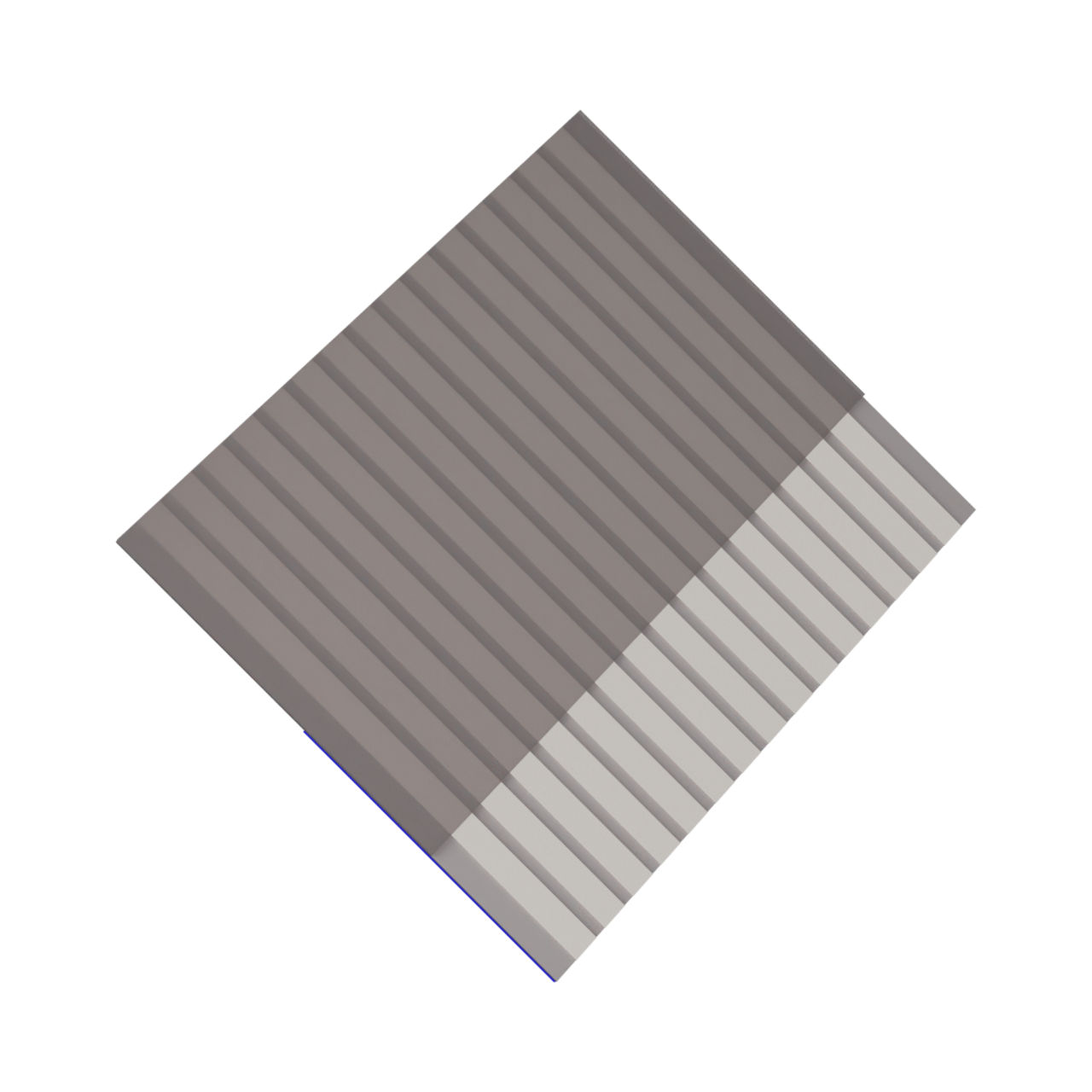

 | Molex 15267-0833 | 1.00mm Pitch Premo-Flex FFC Jumper, Same Side Contacts (Type A), 15 Circuits, 0.03m Cable Length, 0.27mm Cable Thickness, Tin (Sn) Plating | |

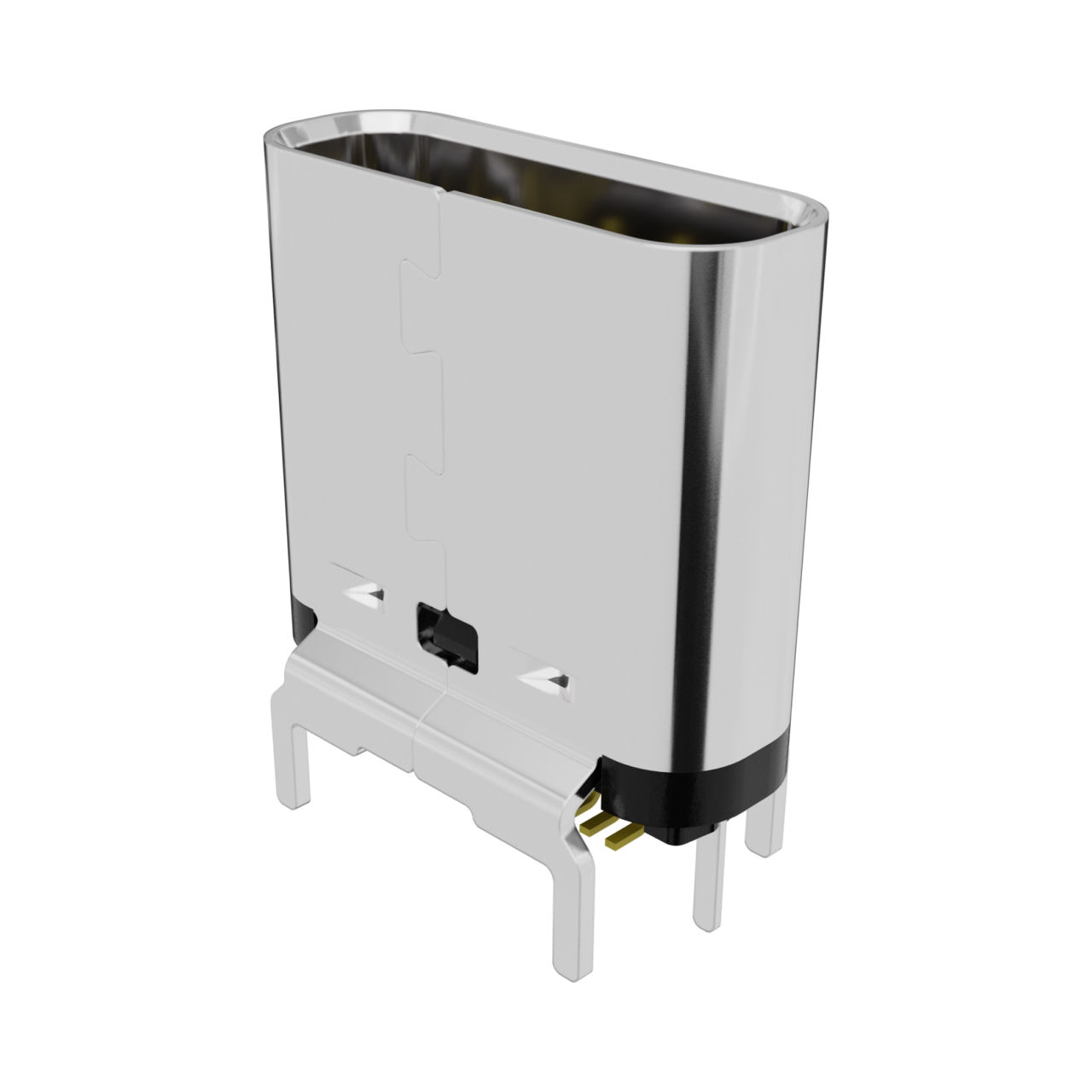

 | Molex 204711-0001 | VERTICAL TYPE C TYPE CVERTICAL REC | |
