| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 48408-0003 |
| Color: | Blue |
| Series: | 48408 - USB 3.0 |
| Amperage: | 1.8 A |
| Connector Type: | USB 3.0 |
| Gender: | Female |
| Number of Rows: | 2 |
| Termination Method: | Through Hole |
| Contact Material: | Copper Alloy |
| Maximum Operating Temperature: | 85 °C |
| Minimum Operating Temperature: | -20 °C |
| Body Orientation: | Vertical |
| Pitch: | 2 mm, 2.5 mm |
| Voltage: | 30 V AC/DC |
| Material: | Thermoplastic |
| Number of Ports: | 1 |
| Orientation: | Vertical |
| Keying: | Yes |
| USB Type: | A |
| Component Type: | Receptacle |
| Tail Length: | 3 mm |
| Packaging: | Tray |
| Operating Temperature Range: | -20 - 85 °C |
| Contact Mating Area Plating: | Nickel, Tin |
| Ground to Panel / PCB: | Yes |
| Number of Contacts Loaded: | 9 |
| Mating Cycles: | 5000 |
| PCB Locator: | Yes |
| PCB Retention: | Yes |
| Polarized to PCB: | Yes |
| Polarized to Mate: | Yes |
| Connector System: | Wire to Board |
| Contact Termination Plating: | Gold |
| Termination Pitch: | 2 mm, 2.5 mm |
| Lock to Mating Part: | No |
| Part Aliases: | 0484080003 |
| SKU: | MOL48408-0003 |
48408-0003
Specifications
Detailed Description
Introducing the 48408-0003, a high-speed USB 3.0 I/O receptacle designed for reliable connectivity in demanding environments. This vertical Type A connector features a rugged construction with a high-temperature blue nylon body, ensuring durability in industrial applications. With a current rating of 1.8 A and a voltage of 30 V AC/DC, it offers robust performance for data transfer and power delivery. The copper alloy contacts with nickel and tin plating guarantee efficient signal transmission, while the gold termination enhances conductivity. Featuring two rows of nine contacts, this receptacle provides ample connectivity options. Its through-hole termination method and PCB locator ensure secure installation, while the polarized design prevents incorrect mating. RoHS compliant and rated for operating temperatures between -20°C and 85°C, the 48408-0003 is the ideal choice for high-speed and high-reliability USB applications.
Frequently Bought Together
| Product | Part # | Description | Stock |
|---|---|---|---|
 | Molex 105057-0001 | Universal Serial Bus (USB) Shielded I/O Type A Receptacle, Vertical, 0.76 |  |
 | Molex 15-31-1022 | 4.80mm Pitch Wire-to-Wire Receptacle Housing, 2 Circuits | |

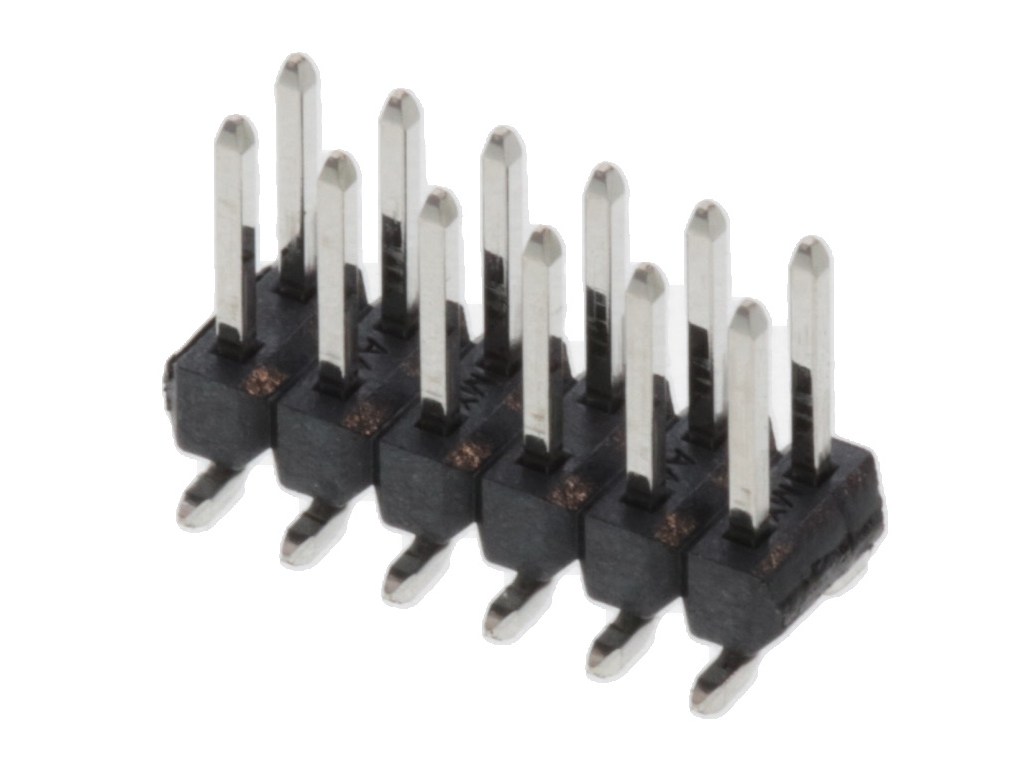

 | Molex 15-91-2120 | 2.54mm Pitch C-Grid Header, Surface Mount, Dual Row, Vertical, 12 Circuits, Tin (Sn) Plating, without PCB Locator Pegs | |
