| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 502579-0100 |
| Series: | 502579 - CLIK-Mate |
| Amperage: | 2 A |
| Connector Type: | CLIK-Mate |
| Gender: | Male |
| Termination Method: | Crimp or Compression |
| Contact Material: | Copper Alloy |
| Contact Plating: | Tin |
| Voltage: | 100 V AC/DC |
| Packaging: | Bag |
| Circuit Application: | Signal |
| Contact Mating Area Plating: | Tin |
| Contact Mating Area Plating Thickness: | .406 µm |
| Mating Cycles: | 30 |
| Contact Termination Plating Thickness: | .406 µm |
| Wire Size: | .08 - .2 mm², 24 AWG, 26 AWG, 28 AWG |
| Connector System: | Wire to Board |
| Contact Termination Plating: | Tin |
| Wire Insulation Diameter: | .78 - 1.28 mm |
| Product Name: | CLIK-Mate |
| Part Aliases: | 5025790100 |
| SKU: | MOL502579-0100 |
502579-0100
| Heilind Number: | MOL502579-0100 |
| Manufacturer: | Molex |
| Manufacturer Number: | 502579-0100 |
| Datasheet: | Packaging Specifications |
| ECAD Model: | |
Description:
CLIK-Mate 1.50mm Pitch Wire-to-Board Crimp Terminal, Tin Plating, 24-28 AWG, Bag
More >>Specifications
Detailed Description
Introducing the 502579-0100, a high-performance CLIK-Mate 1.50mm Pitch Wire-to-Board Crimp Terminal designed for seamless connectivity in electronic systems. With Tin Plating and compatible with 24-28 AWG wires, this male connector ensures reliable signal transmission with an amperage rating of 2 A and a voltage tolerance of 100 V AC/DC. Each terminal is crafted from durable Copper Alloy with Tin contact plating, guaranteeing longevity and stable performance. Ideal for signal applications, it accommodates wire sizes ranging from 24 AWG to 28 AWG, or .08 to .2 mm², with a termination method of Crimp or Compression. Packaged in a convenient bag, the 502579-0100 is RoHS compliant and a perfect choice for your wire-to-board connection needs.
Frequently Bought Together
| Product | Part # | Description | Stock |
|---|---|---|---|
 | Molex 105300-1200 | Cut Strip - Nano-Fit Crimp Terminal, Female, 0.38 |  |

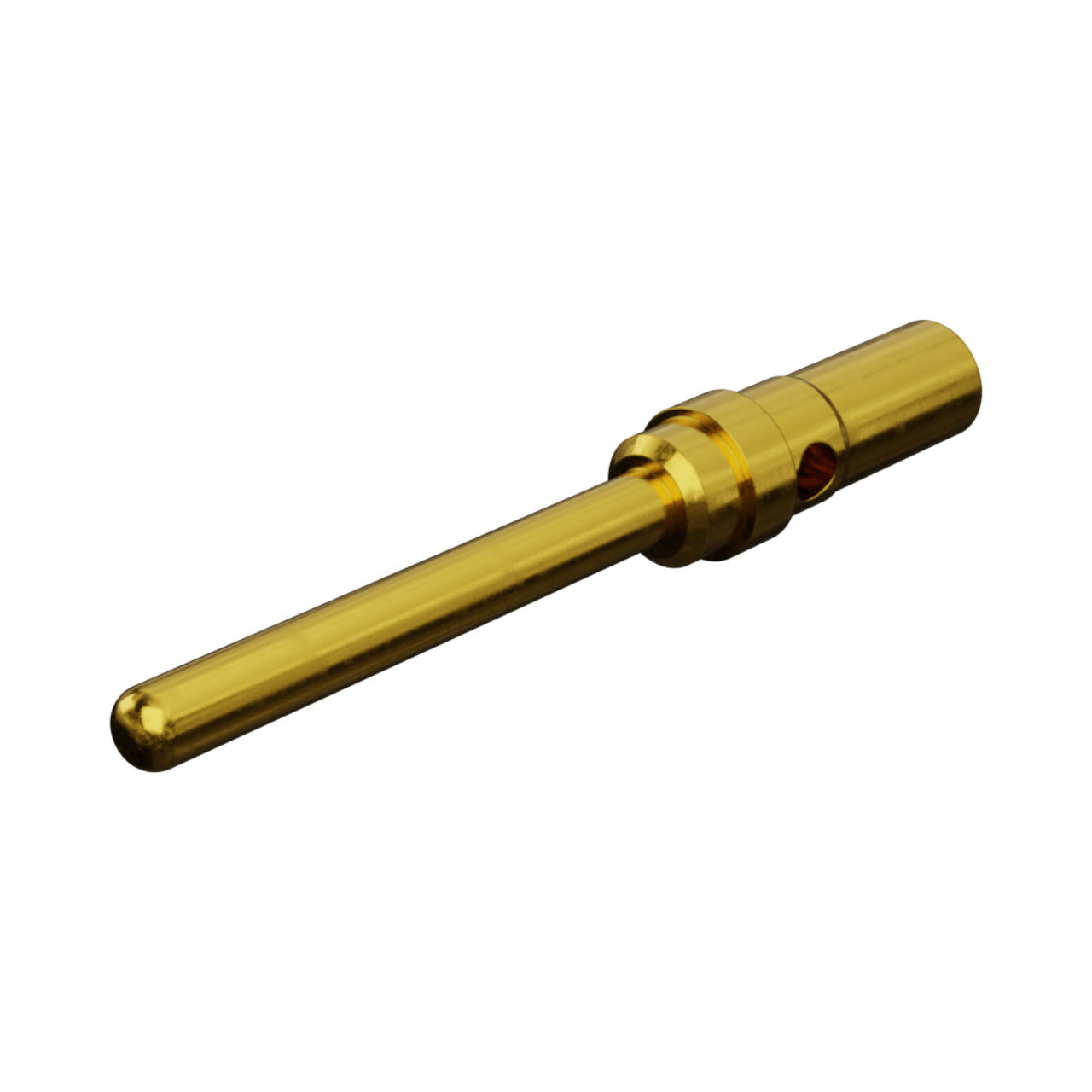

 | Molex 173112-0206 | FCT Machined Contact, Male, Crimp, 0.2µm Gold Plating, 28-26 AWG | |
 | Molex 39-01-2060 | Mini-Fit Jr. Receptacle Housing, Dual Row, 6 Circuits, UL 94V-2, Natural | |
 | Molex 39-01-2085 | Mini-Fit Jr. Receptacle Housing, Dual Row, 8 Circuits, UL 94V-0, Natural | |
 | Molex 43025-0400 | Micro-Fit 3.0 Receptacle Housing, Dual Row, 4 Circuits, UL 94V-0, Low-Halogen, Black | |
 | Molex 43645-0200 | Micro-Fit 3.0 Receptacle Housing, Single Row, 2 Circuits, UL 94V-0, Low-Halogen, Black | |
 | Molex 43645-0800 | Micro-Fit 3.0 Receptacle Housing, Single Row, 8 Circuits, UL 94V-0, Black | |
 | Molex 50-57-9406 | SL Crimp Housing, Single Row, Version G, Positive Latch, 6 Circuits, Black | |
 | Molex 502578-0200 | CLIK-Mate Wire-to-Board Housing, Single Row, Positive Lock, 2 Circuits, Beige | |

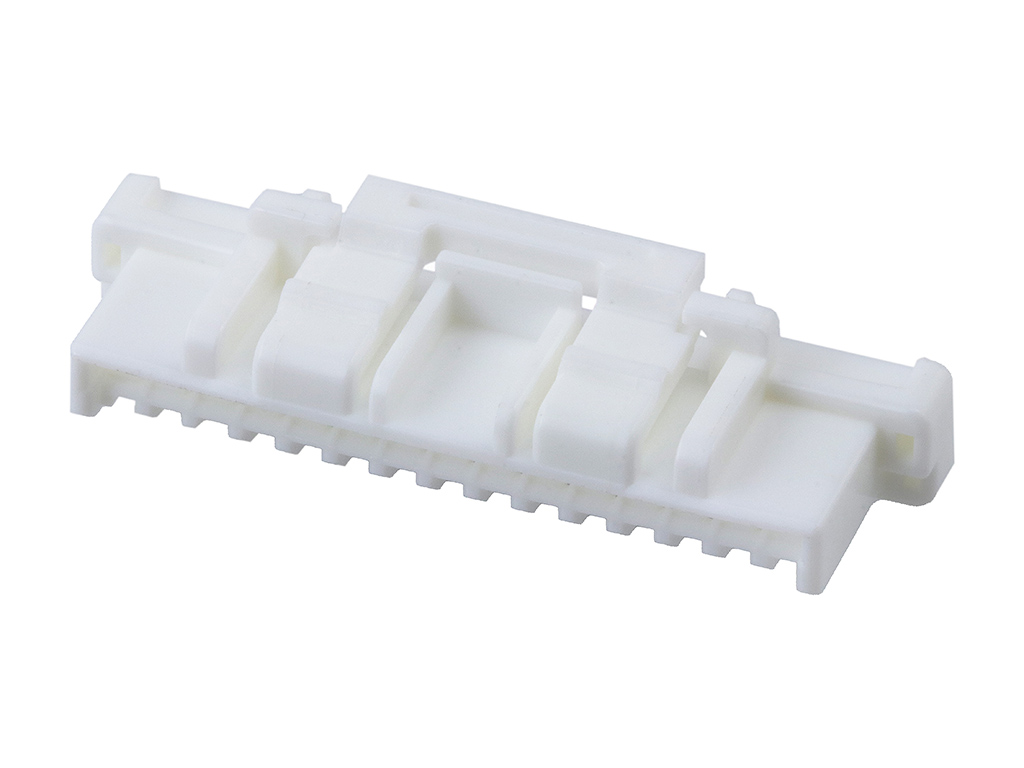

 | Molex 502578-0300 | CLIK-Mate Wire-to-Board Housing, Single Row, Positive Lock, 3 Circuits, Beige | |
