| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 50-57-9406 |
| Color: | Black |
| Series: | 70066 - CyClone - SL |
| Amperage: | 3 A |
| Connector Type: | CyClone, SL |
| Gender: | Receptacle |
| Number of Contacts: | 6 |
| Number of Rows: | 1 |
| Pitch: | 2.54 mm |
| Material: | Polyester Alloy |
| Keying: | Yes |
| Operating Temperature Range: | -40 - 105 °C |
| Circuit Application: | Signal |
| Connector System: | Wire to Board |
| Glow Wire Capable: | No |
| Lock to Mating Part: | Yes |
| Stackable: | No |
| Material Flammability Standard: | 94V-0 |
| Part Aliases: | 0050579406 70066-0180 |
| SKU: | MOL50-57-9406 |
50-57-9406
| Heilind Number: | MOL50-57-9406 |
| Manufacturer: | Molex |
| Manufacturer Number: | 50-57-9406 |
| Datasheet: | Product Specification |
| ECAD Model: | |
Specifications
Detailed Description

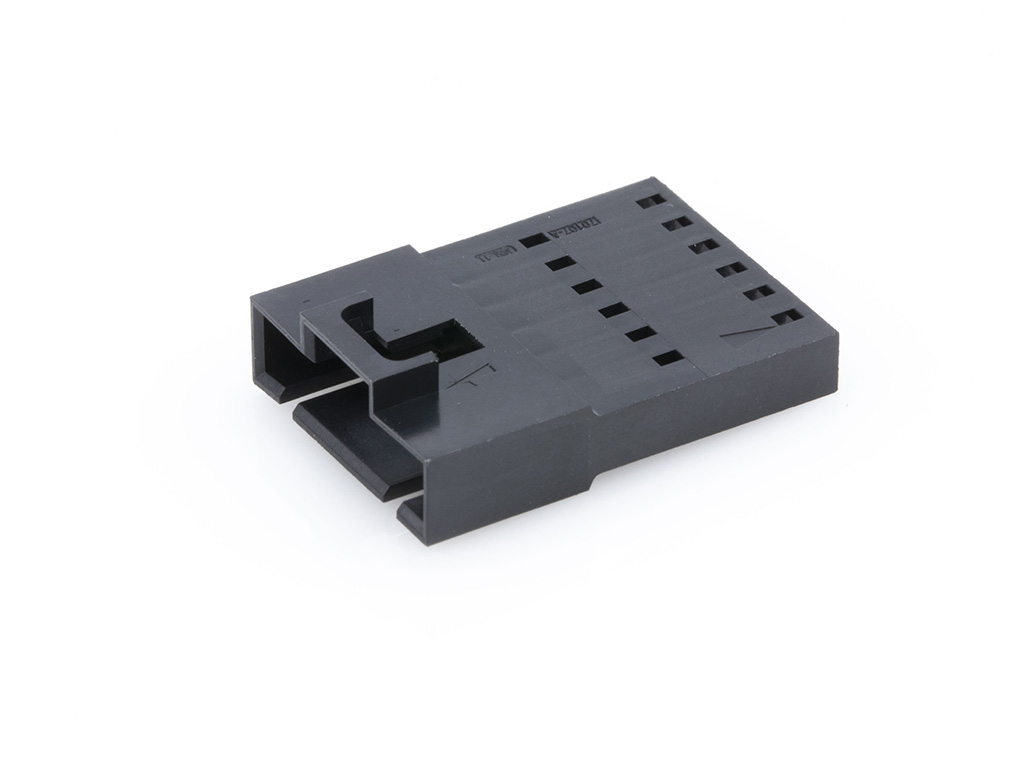

Introducing the 50-57-9406 SL Crimp Housing, a crucial component for your signal circuit applications. This single-row housing, featuring Version G with a positive latch, ensures secure connections in your CyClone systems. With 6 black circuits and a 3A amperage, it guarantees reliable performance. Crafted from a durable polyester alloy, it withstands operating temperatures ranging from -40 to 105°C. Certified by CSA and UL, it meets stringent safety standards. Its keying feature prevents misalignment, while its compact 2.54mm pitch offers space efficiency. RoHS compliant and readily available, this housing is a must-have for your wire-to-board connections. Upgrade to the 50-57-9406 for efficient and dependable connectivity.
