| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 501330-1500 |
| Color: | White |
| Series: | 501330 - Pico-Clasp |
| Amperage: | 1 A |
| Connector Type: | Pico-Clasp |
| Gender: | Receptacle |
| Housing Material: | Nylon |
| Number of Contacts: | 15 |
| Number of Rows: | 1 |
| Pitch: | 1 mm |
| Material: | Nylon |
| Packaging: | Bag |
| Operating Temperature Range: | -40 - 105 °C |
| Circuit Application: | Signal |
| Polarized to Mate: | Yes |
| Connector System: | Wire to Board |
| UL Agency Certification: | E29179 |
| Glow Wire Capable: | No |
| Lock to Mating Part: | Yes |
| Stackable: | No |
| Part Aliases: | 5013301500 |
| SKU: | MOL501330-1500 |
501330-1500
| Heilind Number: | MOL501330-1500 |
| Manufacturer: | Molex |
| Manufacturer Number: | 501330-1500 |
| Datasheet: | 3D Drawing |
| ECAD Model: | |
Description:

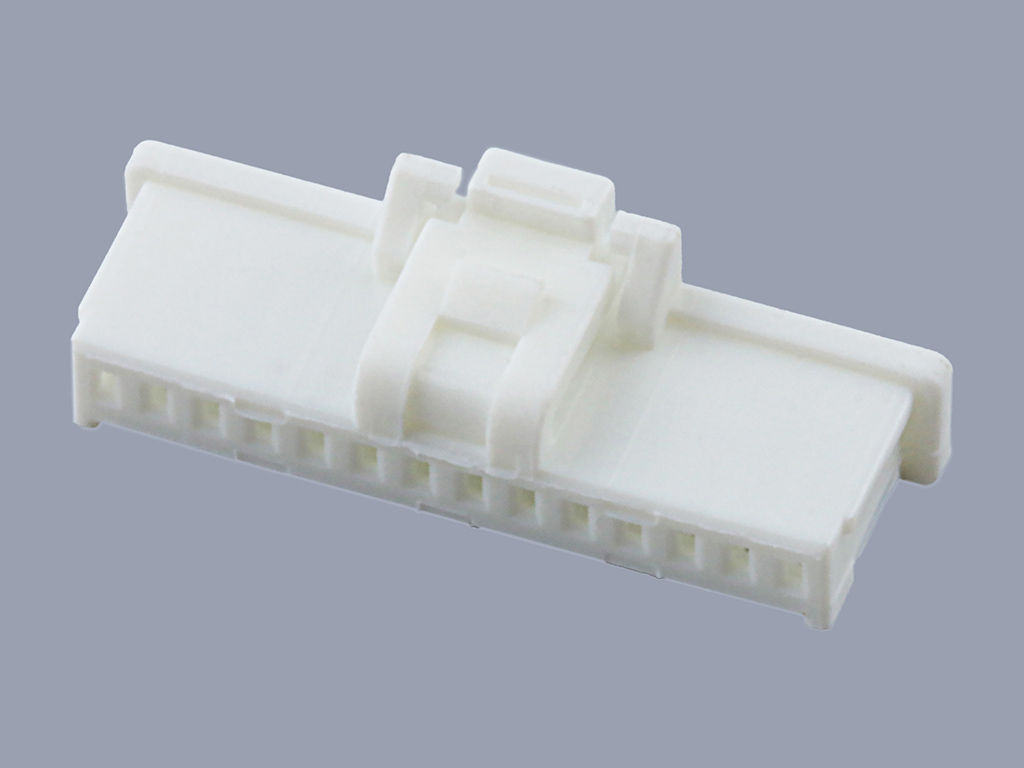

1.00mm Pitch Pico-Clasp Wire-to-Board Female Housing, Single Row, with Positive Lock, 15 Circuits
More >>Specifications
Detailed Description
Introducing the 501330-1500, a high-performance Pico-Clasp Wire-to-Board Connector designed for seamless signal transmission in electronic circuits. With a compact 1mm pitch and featuring 15 contacts in a single row, this connector ensures efficient connectivity in tight spaces. Constructed with durable nylon housing material, it offers reliable performance even in harsh operating conditions ranging from -40 to 105°C. UL agency certified (E29179) and RoHS compliant, this white-colored connector guarantees safety and environmental responsibility. Its receptacle gender and polarized mating feature ensure secure connections, while the included locking mechanism adds extra stability. Perfect for various applications, the 501330-1500 is a must-have component for your connectivity needs.
