50-84-1120

MOL50-84-1120
Heilind Number:MOL50-84-1120
Manufacturer:Molex
Manufacturer Number:50-84-1120
Datasheet:Product Specification
ECAD Model:
3D Model

Description:

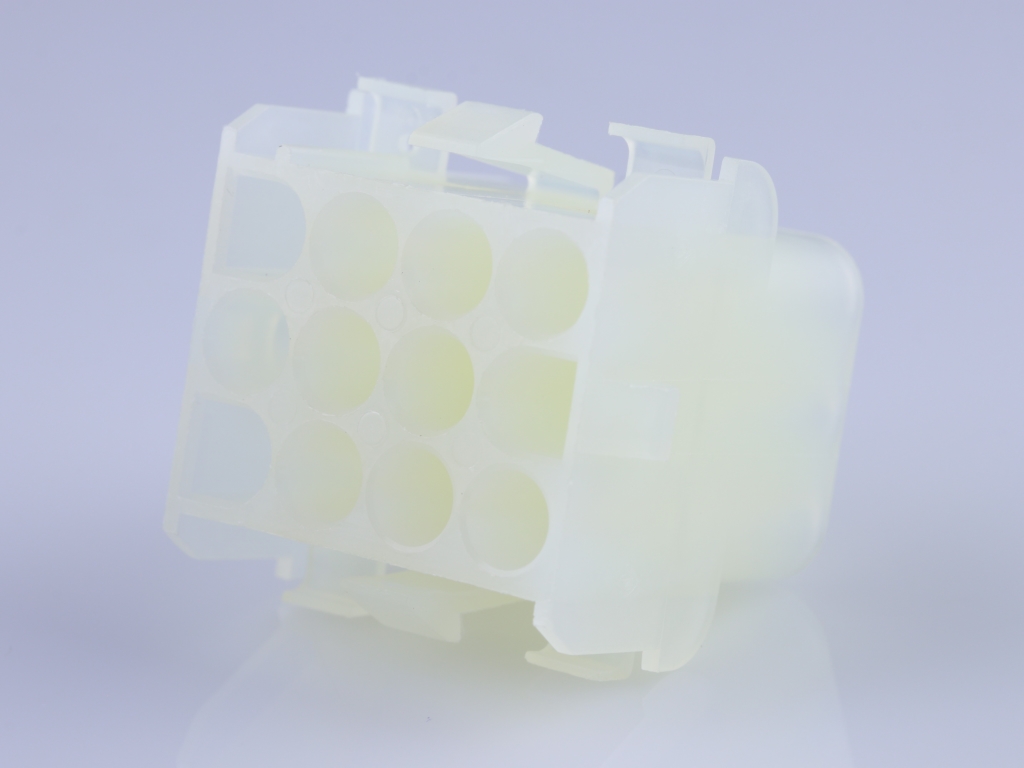

2.13mm Diameter MLX Power Crimp Housing Plug, 12 Circuits, Natural

More >>

Specifications

AttributeValue
Product Category:
Pin & Socket Housings & Contacts Pin & Socket Housings
Manufacturer:Molex
Manufacturer Part Number:Molex 50-84-1120
Color:Natural
Series:42021 - MLX
Amperage:11 A, 20 A
Connector Type:MLX
Gender:Plug
Housing Material:Nylon
Number of Contacts:12
Number of Rows:4
Pitch:6.35 mm
Material:Nylon
Keying:No
Packaging:Bag
Operating Temperature Range:-55 - 105 °C
Circuit Application:Power
Polarized to Mate:Yes
Connector System:Wire to Board, Wire to Wire
CSA Agency Certification:LR19980
UL Agency Certification:E29179
Glow Wire Capable:No
Lock to Mating Part:Yes
Stackable:No
Material Flammability Standard:94V-2
Part Aliases:0050841120 42021-12A
Contact Detail:12
SKU:MOL50-84-1120

Detailed Description

The 50-84-1120 is a high-performance MLX connector featuring a durable nylon housing, designed for power applications. With a current rating of 20A and 11A, this 12-contact, 4-row connector ensures reliable connectivity in demanding environments. Its 6.35mm pitch and plug gender make it versatile for wire-to-wire and wire-to-board connections. Certified by CSA (LR19980) and UL (E29179) for quality assurance, this connector operates efficiently in a wide temperature range (-55 to 105°C). Its polarized and locking design guarantees secure mating, while RoHS compliance underscores its environmental responsibility. Perfect for industrial and commercial use, the 50-84-1120 is a trusted solution for your connectivity needs.
