| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 48037-1000 |
| Series: | 48037 - USB 2.0 |
| Amperage: | 1.5 A |
| Connector Type: | USB |
| Gender: | Male |
| Number of Contacts: | 4 |
| Number of Rows: | 1 |
| Mount Type: | Panel Mount |
| Termination Method: | Surface Mount |
| Maximum Operating Temperature: | 85 °C |
| Minimum Operating Temperature: | -20 °C |
| Body Orientation: | Right Angle |
| Pitch: | 2 mm, 2.5 mm |
| Voltage: | 150 V AC/DC |
| Shield Type: | Full Shield |
| Number of Ports: | 1 |
| Orientation: | Right Angle |
| Keying: | Yes |
| USB Type: | A |
| Component Type: | Plug |
| Packaging: | Tray |
| Operating Temperature Range: | -20 - 85 °C |
| Contact Mating Area Plating: | Gold |
| Contact Mating Area Plating Thickness: | .762 µm |
| Number of Contacts Loaded: | 4 |
| Panel Mount: | Yes |
| PCB Locator: | Yes |
| Shielded: | Yes |
| PCB Retention: | Yes |
| Polarized to PCB: | Yes |
| Polarized to Mate: | Yes |
| PCB Thickness (Recommended): | 1.2 mm, 1.6 mm |
| Connector System: | Wire to Board |
| Contact Termination Plating: | Tin |
| Termination Pitch: | 2 mm, 2.5 mm |
| Lock to Mating Part: | Yes |
| Surface Mount Compatible: | Yes |
| Part Aliases: | 0480371000 |
| SKU: | MOL48037-1000 |
48037-1000
| Heilind Number: | MOL48037-1000 |
| Manufacturer: | Molex |
| Manufacturer Number: | 48037-1000 |
| Datasheet: | Packaging Specifications |
| ECAD Model: | |
Description:
Universal Serial Bus (USB) Shielded I/O Plug, Type A, Right Angle, Surface Mount, 0.76
More >>Specifications
Detailed Description
Introducing the 48037-1000, a high-speed Universal Serial Bus (USB) Shielded I/O Plug designed for reliable data connectivity in electronic devices. This Type A connector features a durable Right Angle, Surface Mount configuration, with a 0.76 pitch for seamless integration onto PCBs. With a current rating of 1.5 A and a voltage of 150 V AC/DC, it ensures efficient power delivery. Gold-plated contact mating areas guarantee superior signal conductivity, while the Full Shield construction minimizes electromagnetic interference. Engineered for panel mount installation, this USB connector is RoHS compliant, making it ideal for various industrial applications. Trust in the 48037-1000 for secure and high-performance USB connections in your electronic designs.
Frequently Bought Together
| Product | Part # | Description | Stock |
|---|---|---|---|
 | Molex 08-56-0109 | KK 254 Crimp Terminal, 22-30 AWG, Reel, Gold (Au), Nickel (Ni) Under Plating |  |
 | Molex 22-01-3027 | KK 254 Crimp Housing, Friction Ramp with Polarizing Ribs, 2 Circuits, Natural | |

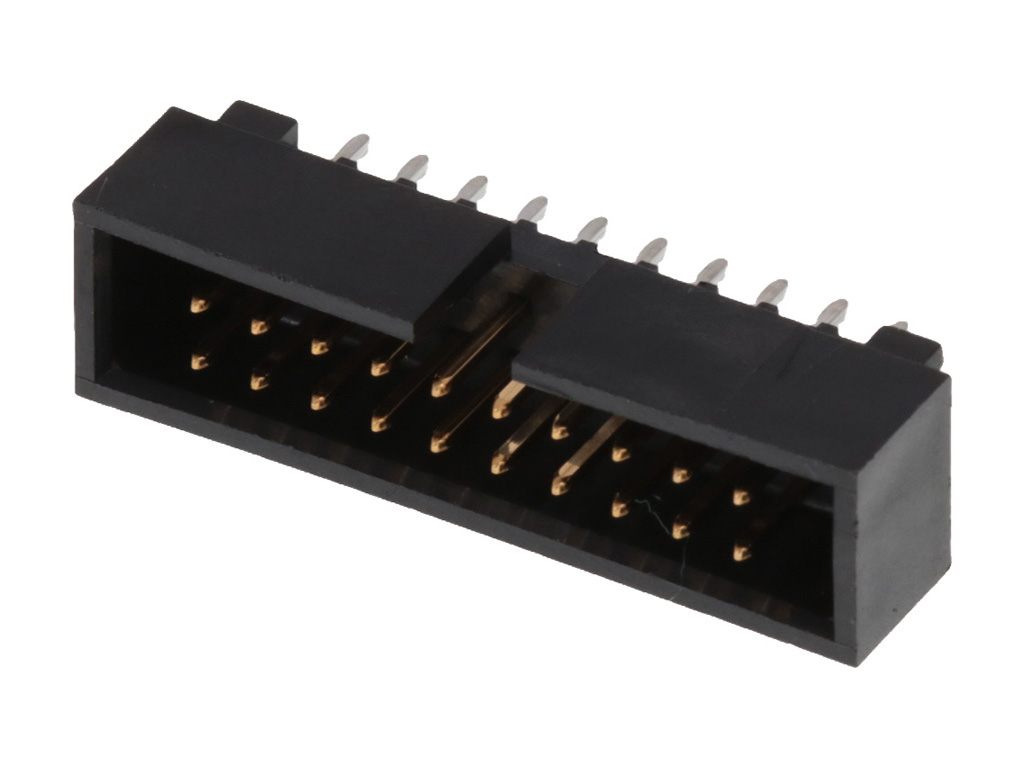

 | Molex 70246-2001 | 2.54mm Pitch C-Grid Header, Low Profile, Dual Row, Vertical, Shrouded, 20 Circuits, 0.38 | |
