| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 43255-0059 |
| Color: | Natural |
| Series: | 43255 - MLX |
| Amperage: | 12 A, 20 A |
| Connector Type: | MLX |
| Number of Contacts: | 2 |
| Number of Rows: | 1 |
| Termination Method: | Through Hole |
| Contact Material: | Phosphor Bronze |
| Body Orientation: | Straight |
| Pitch: | 6.35 mm |
| Voltage: | 600 V |
| Material: | Polyester |
| Orientation: | Vertical |
| Keying: | Yes |
| Tail Length: | 4.3 mm |
| Packaging: | Tray |
| Operating Temperature Range: | -55 - 105 °C |
| Contact Mating Area Plating: | Tin |
| Number of Contacts Loaded: | 2 |
| Mating Cycles: | 50 |
| PCB Locator: | Yes |
| PCB Retention: | Yes |
| Polarized to PCB: | Yes |
| Polarized to Mate: | Yes |
| PCB Thickness (Recommended): | 1.6 mm |
| Connector System: | Board to Board, Wire to Board |
| CSA Agency Certification: | LR19980 |
| UL Agency Certification: | E29179 |
| Contact Termination Plating: | Tin |
| Maximum Solder Process Temperature: | 260 °C |
| Lead Free Process Capability: | WAVE |
| Duration at Max. Process Temperature (seconds): | 010 |
| Termination Pitch: | 6.35 mm |
| Glow Wire Capable: | No |
| Lock to Mating Part: | Yes |
| Mated Height: | 10.16 mm |
| Stackable: | No |
| Surface Mount Compatible: | No |
| Breakaway: | No |
| Make First / Break Last: | No |
| Shroud Type: | Fully |
| Material Flammability Standard: | 94V-0 |
| Part Aliases: | 0432550059 |
| SKU: | MOL43255-0059 |
43255-0059
| Heilind Number: | MOL43255-0059 |
| Manufacturer: | Molex |
| Manufacturer Number: | 43255-0059 |
| Datasheet: | Packaging Specifications |
| ECAD Model: | |
Description:

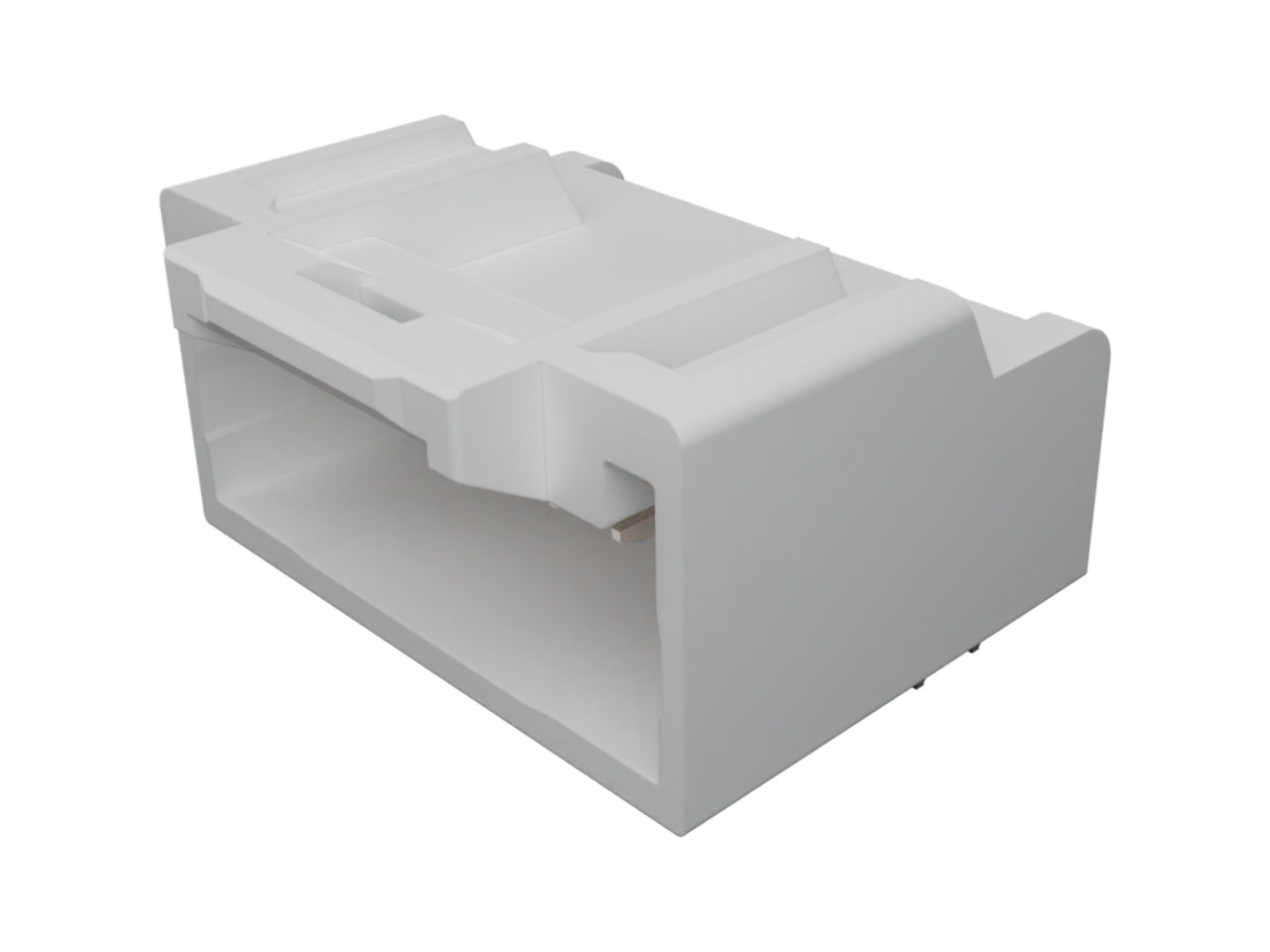

6.35mm Pitch MLX Power Connector Header, 2.13mm Contact Diameter, Vertical, with Plastic Polarizing Peg, 2 Circuits, Polyester 94V-0, Tin (Sn) Plating, Natural
More >>Specifications
Detailed Description
The 43255-0059 is a high-performance MLX connector featuring two contacts and a straight body orientation for seamless through-hole termination. With a pitch of 6.35mm, this connector offers reliable power and signal transmission in various applications. Constructed with durable phosphor bronze contacts and a polyester housing, it ensures longevity even in harsh environments. Rated for 600V and 12A/20A, it guarantees safe and efficient operation. Featuring keying for error-free mating, PCB locator, and retention for easy installation, this connector is a versatile solution for board-to-board and wire-to-board connections. With UL and CSA agency certifications and RoHS compliance, it meets stringent quality standards. Upgrade your connectivity with the 43255-0059.
