| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 43045-0220 |
| Color: | Black |
| Series: | 43045 |
| Amperage: | 8.5 A |
| Connector Type: | Micro-Fit 3.0 |
| Number of Contacts: | 2 |
| Number of Rows: | 2 |
| Termination Method: | Surface Mount |
| Contact Material: | Brass |
| Body Orientation: | Straight |
| Pitch: | 3 mm |
| Voltage: | 600 V |
| Material: | High Temperature Thermoplastic |
| Orientation: | Vertical |
| Operating Temperature Range: | -40 - 105 °C |
| Contact Mating Area Plating: | Gold |
| Contact Mating Area Plating Thickness: | .762 µm |
| Number of Contacts Loaded: | 2 |
| Mating Cycles: | 30 |
| PCB Locator: | Yes |
| PCB Retention: | Yes |
| Polarized to PCB: | Yes |
| PCB Thickness (Recommended): | 1.6 mm |
| Connector System: | Wire to Board |
| Contact Termination Plating: | Tin |
| Maximum Solder Process Temperature: | 260 °C |
| Lead Free Process Capability: | REFLOW |
| Duration at Max. Process Temperature (seconds): | 030 |
| Max. Cycles at Max. Process Temperature: | 003 |
| Glow Wire Capable: | Yes |
| Mated Height: | 17.64 mm |
| Stackable: | No |
| Breakaway: | No |
| Shroud Type: | Fully |
| Product Name: | Micro-Fit 3.0 |
| Material Flammability Standard: | 94V-0 |
| Part Aliases: | 0430450220 |
| SKU: | MOL43045-0220 |
43045-0220
| Heilind Number: | MOL43045-0220 |
| Manufacturer: | Molex |
| Manufacturer Number: | 43045-0220 |
| Datasheet: | Product Specification |
| ECAD Model: | |
Description:
Micro-Fit 3.0 Vertical Header, 3.00mm Pitch, Dual Row, 2 Circuits, with Solder Tab, Gold, Glow-Wire Capable, Black
More >>Specifications
Detailed Description
Introducing the Micro-Fit 3.0 Vertical Header, a high-performance PCB connector designed for power applications. With a compact 3.00mm pitch and featuring dual rows, this header accommodates 2 circuits, making it ideal for space-constrained designs. Constructed with a durable high-temperature thermoplastic body and brass contacts plated with gold, it offers reliable conductivity in demanding environments. The solder tab termination method ensures secure attachment to the PCB, while its vertical orientation saves valuable board space. With a current rating of 8.5A and a voltage tolerance of 600V, this connector is suitable for a wide range of power supply tasks. Its glow-wire capability and RoHS compliance guarantee safety and environmental responsibility. Whether for industrial machinery or consumer electronics, the Micro-Fit 3.0 is the perfect choice for high-power applications.
Frequently Bought Together
| Product | Part # | Description | Stock |
|---|---|---|---|

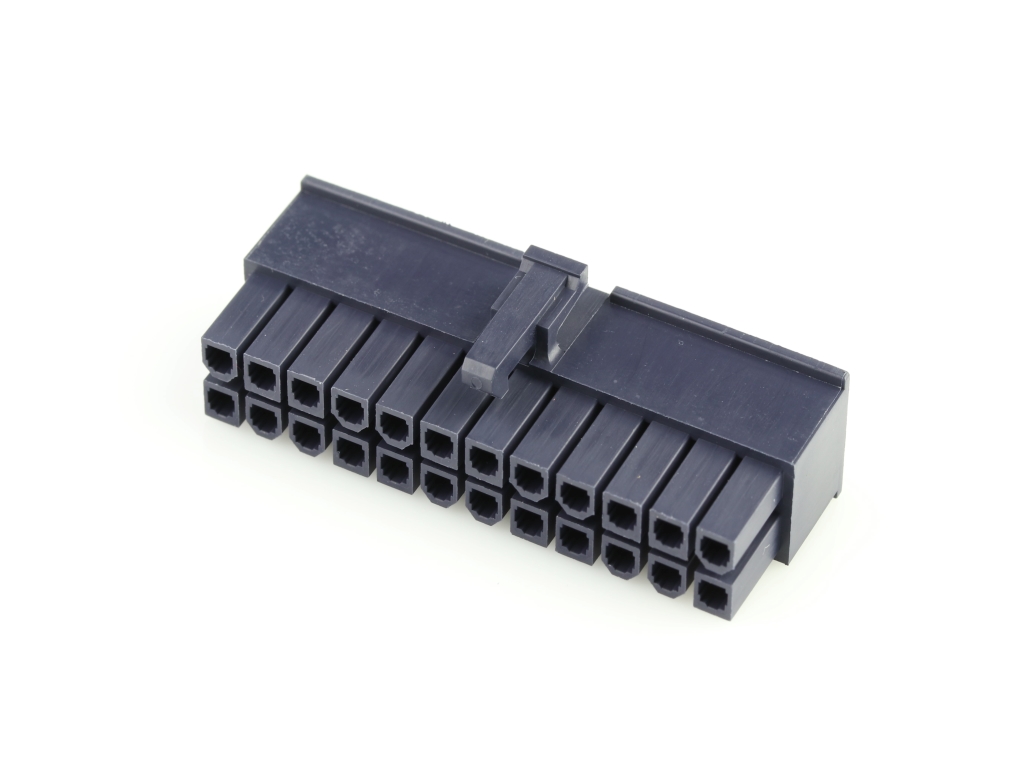

 | Molex 46992-2410 | Mini-Fit Jr. Receptacle Housing, Dual Row, Nylon 6/6, UL 94V-2, 24 Circuits, Glow-Wire Capable, Black |  |
