87832-1221

MOL87832-1221
ICC Number:MOL87832-1221
Manufacturer:Molex
Manufacturer Number:87832-1221
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

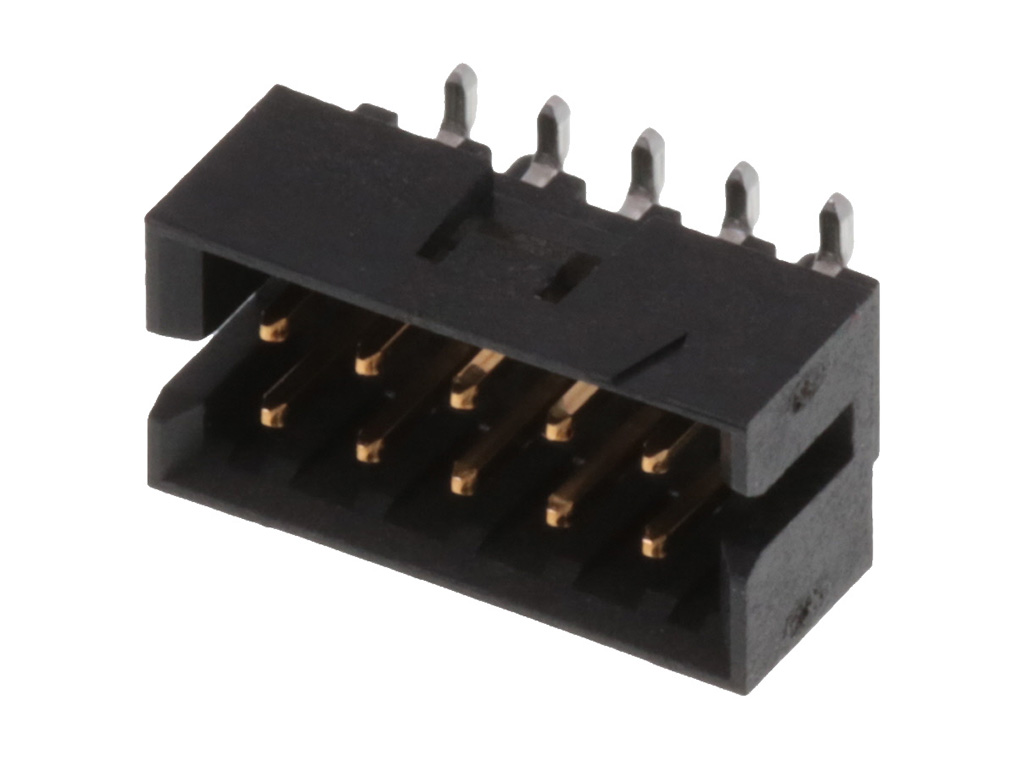

2.00mm Pitch, Milli-Grid PCB Header, Dual Row, Vertical, Surface Mount, Shrouded, Lead-Free, 12 Circuits, 0.76µm Gold (Au) Plating, without Locking Window, with Center Polarization Slot, with PCB Locator, Tube

More >>

Specifications

AttributeValue
Product Category:
PC Board Pin & Receptacle Connectors PCB Pin Headers
Manufacturer:Molex
Manufacturer Part Number:Molex 87832-1221
Color:Black
Series:87832 - Milli-Grid
Amperage:2 A
Connector Type:Milli-Grid
Number of Contacts:12
Number of Rows:2
Termination Method:Surface Mount
Contact Material:Phosphor Bronze
Body Orientation:Straight
Pitch:2 mm
Voltage:125 V
Material:Nylon
Orientation:Vertical
Keying:Yes
Operating Temperature Range:-55 - 105 °C
Contact Mating Area Plating:Gold
Contact Mating Area Plating Thickness:.762 µm
Number of Contacts Loaded:12
Mating Cycles:100
PCB Locator:Yes
PCB Retention:Without
Polarized to PCB:No
Contact Termination Plating Thickness:1.905 µm
Connector System:Wire to Board
Contact Termination Plating:Tin
Maximum Solder Process Temperature:260 °C
Lead Free Process Capability:REFLOW
Duration at Max. Process Temperature (seconds):010
Max. Cycles at Max. Process Temperature:001
Termination Pitch:2 mm
Glow Wire Capable:No
Guide to Mating Part:No
Lock to Mating Part:Yes
Stackable:No
Surface Mount Compatible:Yes
Breakaway:No
Make First / Break Last:No
Shroud Type:Fully
Material Flammability Standard:94V-0
Part Aliases:0878321221
SKU:MOL87832-1221

Detailed Description

The Milli-Grid Header 87832-1221 is a high-performance surface mount connector designed for vertical PCB applications. Featuring a shrouded design for added protection, this lead-free connector accommodates 12 circuits with a pitch of 2mm. Constructed with black nylon housing and gold-plated phosphor bronze contacts, it ensures reliable and durable performance in demanding environments. With UL and CSA agency certifications, as well as RoHS compliance, this connector guarantees safety and quality assurance. Suitable for wire-to-board connections, it offers easy installation and secure PCB retention, making it ideal for a wide range of electronic applications.
