39880-0302

Heilind Number:	MOL39880-0302
Manufacturer:	Molex
Manufacturer Number:	39880-0302
Datasheet:	Drawing
ECAD Model:

Description:

5.08mm Pitch, Beau Eurostyle Low Profile, Fixed Block, Modular, 2 Circuits

More >>

Specifications

Attribute	Value
Product Category:	Terminal Blocks PCB Mount Terminal Blocks
Manufacturer:	Molex
Manufacturer Part Number:	Molex 39880-0302
Series:	39880 - Eurostyle Fixed Mount
Amperage:	13.5 A
Connector Type:	Eurostyle Fixed Mount
Number of Rows:	1
Mount Type:	No
Body Orientation:	Straight
Pitch:	5.08 mm
Voltage:	300 V
Orientation:	Vertical
Block Type:	Shrouded
Component Type:	One Piece
Tail Length:	3.5 mm
Operating Temperature Range:	105 °C
Number of Contacts Loaded:	2
PCB Retention:	Without
PCB Thickness (Recommended):	2.4 mm
Wire Size:	16 AWG, 18 AWG, 20 AWG, 22 AWG, 24 AWG, 26 AWG, 28 AWG, .2 - 1.5 mm², 30 AWG
Termination Pitch:	5.08 mm
Lock to Mating Part:	No
Stackable:	Yes
Material Flammability Standard:	94V-0
Part Aliases:	0398800302 MX-MSB02005-0N
SKU:	MOL39880-0302

Detailed Description

Introducing the 39880-0302 Eurostyle Fixed Mount Terminal Block, a high-performance connectivity solution for your PCB applications. With a compact one-piece design and straight body orientation, this terminal block is engineered for seamless vertical PCB mounting, featuring a shrouded block type for added safety. Boasting an amperage rating of 13.5 A and a voltage tolerance of 300 V, it ensures reliable power transmission in diverse electronic systems. The 5.08 mm pitch and two loaded contacts accommodate various wire sizes, from 24 AWG to 18 AWG, with a tail length of 3.5 mm for easy installation. Certified for UL safety standards and RoHS compliant, this terminal block guarantees quality and environmental responsibility. Whether you're designing consumer electronics or industrial controls, the 39880-0302 is the perfect choice for secure and efficient wire termination on your PCBs.

Frequently Bought Together

Product	Part #	Description	Stock
	Molex 02-06-1103	1.57mm Diameter, Standard .062 Pin and Socket Crimp Terminal, Female, with Tin (Sn) Plated Brass Contact, 18-24 AWG, Bag
	Molex 03-06-1038	1.57mm Diameter Standard .062 Pin and Socket Receptacle Housing, 3 Circuits, with Pre-bent Mounting Ears, Natural
	Molex 19002-0005	Avikrimp Fully Insulated Quick Disconnect, Female, for 18-22 AWG Wire, Box
	Molex 19003-0017	InsulKrimp Quick Disconnect, Female, for 18-22 (0.80-0.35mm?), Box, Tab 4.75 x 0.81mm

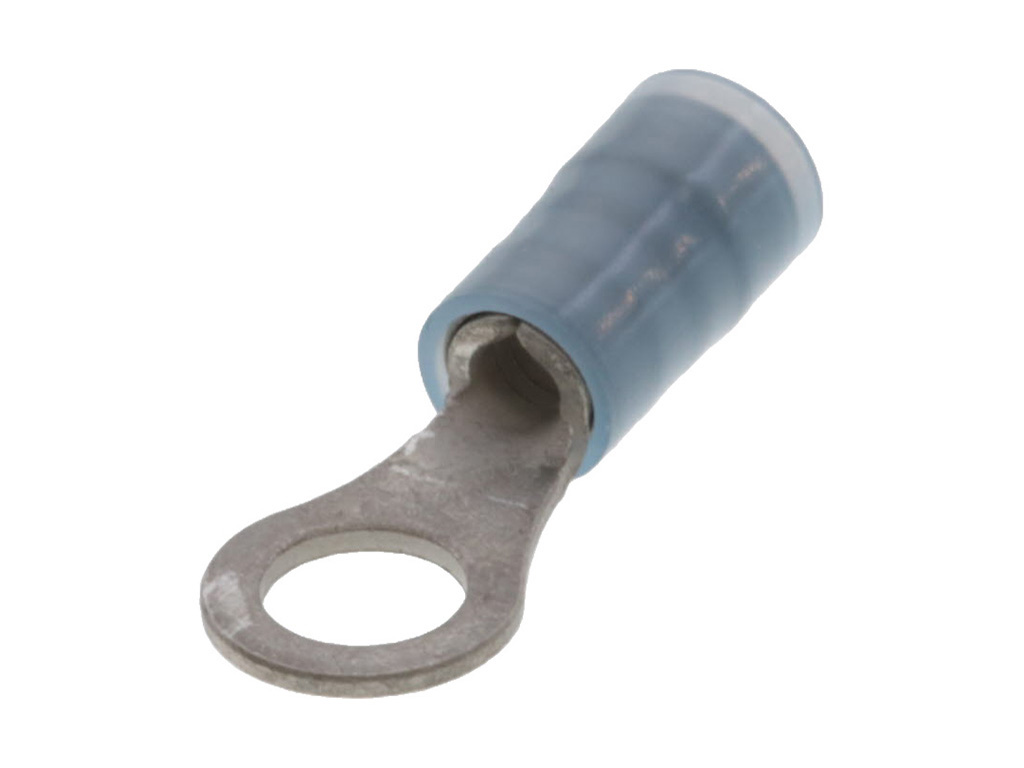

	Molex 19073-0087	Avikrimp Ring Tongue Terminal for 14 to 16 AWG Wire, Stud Size 10 (M5), Length 22.48mm
