| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 19216-0005 |
| Color: | Red |
| Series: | 19216 - Multi-Lock |
| Contact Material: | Copper |
| Contact Plating: | Tin |
| Maximum Operating Temperature: | 105 °C |
| Voltage: | 600 V |
| Material: | Copper |
| Insulation Material: | Polypropylene |
| Operating Temperature Range: | 105 °C |
| Wire Size: | 18 AWG, 20 AWG, 22 AWG |
| Wire Insulation Diameter: | 3.30 mm & 4.06 mm |
| Barrel Type: | Closed |
| Material Plating (Mating): | Tin |
| Material Plating (Termination): | Tin |
| Material Flammability Standard: | 94V-0 |
| Part Aliases: | 0192160005 ML-2218 |
| SKU: | MOL19216-0005 |
19216-0005
| Heilind Number: | MOL19216-0005 |
| Manufacturer: | Molex |
| Manufacturer Number: | 19216-0005 |
| Datasheet: | Product Specification |
| ECAD Model: | |
Specifications
Detailed Description
Introducing the 19216-0005, a high-quality Multi-Lock Connector designed for 18-22 AWG wires. This red connector, featuring copper contacts with tin plating, ensures reliable conductivity and is rated for a maximum operating temperature of 105 °C and a voltage of 600 V. Constructed with a copper body and polypropylene insulation, it offers durability and safety in various applications. UL agency certified (E32244) and RoHS compliant, this connector guarantees quality and environmental responsibility. With a closed barrel design and compatibility with 22 AWG to 18 AWG wires, it provides a secure and efficient connection solution. Available in stock, this product is a must-have for professionals in need of dependable wire termination options.
Frequently Bought Together
| Product | Part # | Description | Stock |
|---|---|---|---|
 | Molex 03-06-1023 | 1.57mm Diameter Standard .062 Pin and Socket Receptacle Housing, 2 Circuits, without Mounting Ears, Natural |  |
 | Molex 03-06-2032 | 1.57mm Diameter Standard .062 Pin and Socket Plug Housing, 3 Circuits, without Mounting Ears, Natural | |
 | Molex 03-06-2044 | 1.57mm Diameter Standard .062 Pin and Socket Plug Housing, Dual Row, without Mounting Ears, PA Polyamide Nylon 6/6, UL 94V-2, 4 Circuits, Natural | |
 | Molex 19002-0005 | Avikrimp Fully Insulated Quick Disconnect, Female, for 18-22 AWG Wire, Box | |
 | Molex 19003-0017 | InsulKrimp Quick Disconnect, Female, for 18-22 (0.80-0.35mm?), Box, Tab 4.75 x 0.81mm | |

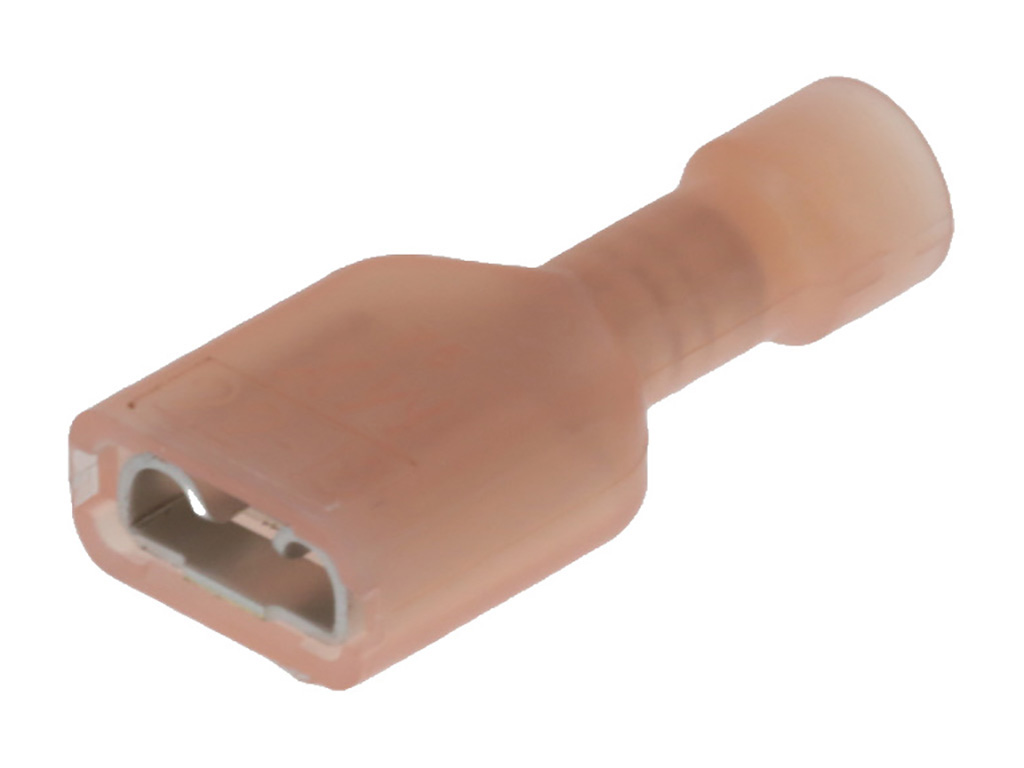

 | Molex 19003-0105 | InsulKrimp Fully Insulated Female Coupler for 18-22 Wire Range | |
 | Molex 19193-0109 | VersaKrimp Ring Tongue Terminal for 10-12 AWG Wire, Loose | |
 | Molex 22-01-3047 | KK 254 Crimp Housing, Friction Ramp with Polarizing Ribs, 4 Circuits, Natural | |

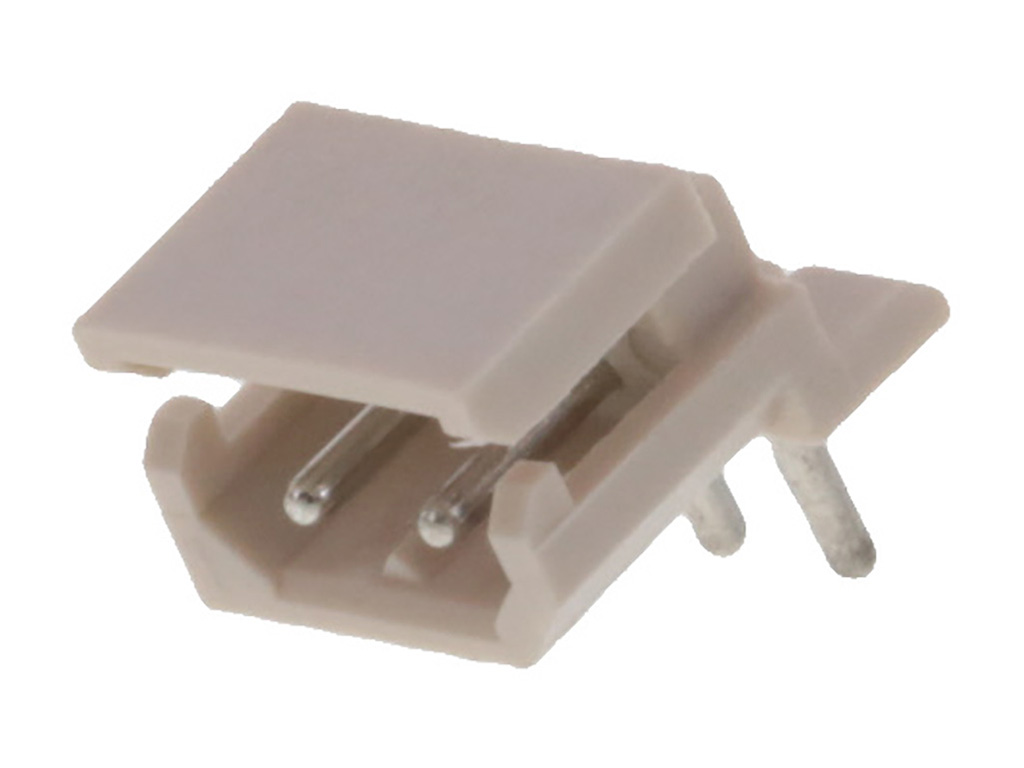

 | Molex 22-05-7025 | 2.50mm Pitch SPOX Wire-to-Board Header, Right Angle, Shrouded, Friction Lock, 2 Circuits | |
 | Molex 22-23-2021 | KK 254 Solid Header, Vertical, with Friction Lock, 2 Circuits, Tin (Sn) Plating | |
 | Molex 39-01-2021 | Mini-Fit Jr. Plug Housing, Dual Row, 2 Circuits, UL 94V-2, with Panel Mounting Ears, Natural | |
 | Molex 39-01-2040 | Mini-Fit Jr. Receptacle Housing, Dual Row, 4 Circuits, UL 94V-2, Natural | |
 | Molex 39-01-2080 | Mini-Fit Jr. Receptacle Housing, Dual Row, 8 Circuits, UL 94V-2, Natural | |
 | Molex 39-28-1083 | Mini-Fit Jr. Vertical Header, 4.20mm Pitch, Dual Row, 8 Circuits, without Snap-in Plastic Peg PCB Lock, Tin, Natural | |
 | Molex 39880-0302 | 5.08mm Pitch, Beau Eurostyle Low Profile, Fixed Block, Modular, 2 Circuits | |
 | Molex 51382-0500 | 2.00mm Pitch MicroClasp Wire-to-Board Receptacle Housing, Positive Lock, Single Row, 5 Circuits, White | |
Product Change Notice
| Effective Date | Description of Change | Download | |||
|---|---|---|---|---|---|
| 02/18/2019 | 506408 - Packaging Method/Quantity Changing. This letter is to inform you that the part(s) referenced in this notice will undergo packaging specification changes that may include new container sizes, quantities or changes to the label. No changes will be made to the product as a result of this change. | Download | |||
Availability
Immediate Shipment:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
Additional Resources
| Attribute | Value |
|---|---|
| Molex: | 19216-0005 |
| Other Names: | 0192160005 ML-2218 |
