| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 39520-0003 |
| Series: | 39520 - ESE - Eurostyle Pluggable |
| Amperage: | 18 A |
| Connector Type: | ESE, Eurostyle Pluggable |
| Number of Rows: | 1 |
| Maximum Operating Temperature: | 105 °C |
| Minimum Operating Temperature: | -40 °C |
| Pitch: | 5 mm |
| Voltage: | 300 V |
| Orientation: | Horizontal |
| Component Type: | Plug |
| Operating Temperature Range: | -40 - 105 °C |
| Number of Contacts Loaded: | 3 |
| Polarized to Mate: | Yes |
| Wire Size: | 12 AWG, .13 - 3.31 mm², 14 AWG, 16 AWG, 18 AWG, 20 AWG, 22 AWG, 24 AWG, 26 AWG |
| UL Agency Certification: | E48521 |
| Termination Pitch: | 5 mm |
| Lock to Mating Part: | Yes |
| Stackable: | No |
| Part Aliases: | 0395200003 |
| SKU: | MOL39520-0003 |
39520-0003
Specifications
Detailed Description
The 39520-0003 is a high-performance Eurostyle Pluggable terminal block designed for reliable power and signal connections in industrial applications. With a compact one-row design, it features three loaded contacts capable of handling up to 18A at 300V. Operating seamlessly in extreme temperatures ranging from -40°C to 105°C, this terminal block is ideal for harsh environments. Its horizontal orientation and 5mm pitch offer easy installation and secure connectivity. UL certified and RoHS compliant, the 39520-0003 guarantees safety and environmental responsibility. With its robust construction and lockable mating feature, this terminal block ensures durability and stability in any application. Upgrade your connectivity solutions with the 39520-0003 for dependable performance in demanding environments.
Frequently Bought Together
| Product | Part # | Description | Stock |
|---|---|---|---|
 | Molex 02-09-5142 | 2.36mm Diameter, Standard .093 Pin and Socket Crimp Terminal, Series 1381, Female, with Gold (Au) Plated Brass Contact, 18-22 AWG, Bag |  |

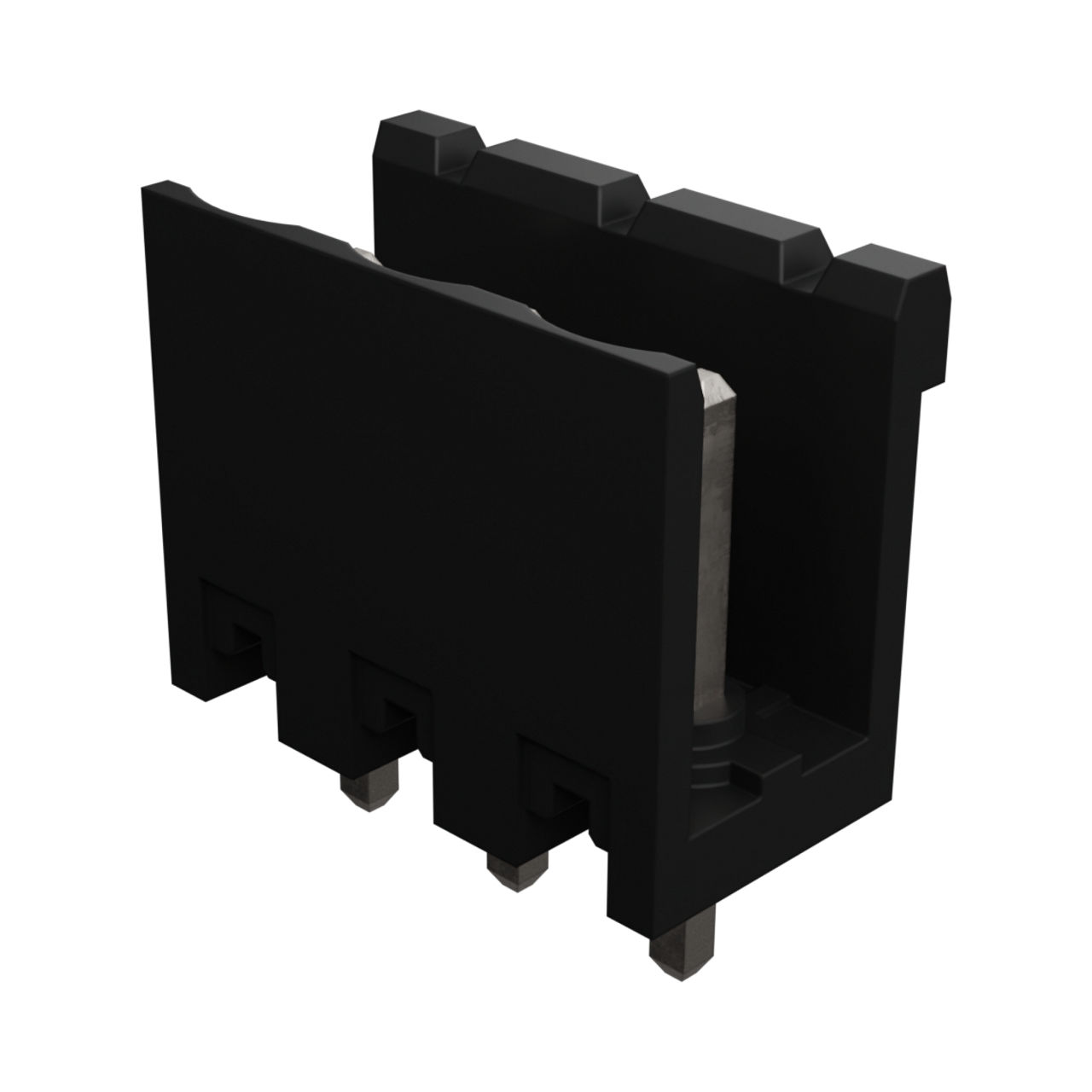

 | Molex 39521-0003 | 5.00mm Pitch Eurostyle Vertical PCB Header, Open Ends, 3 Circuits | |
 | Molex 50-29-1662 | Mini-Fit Jr. Receptacle Housing, Single Row, PA Polyamide Nylon 6/6, UL 94V-2, 3 Circuits, Positive Latch, First Mate/Last Break, Glow-Wire Capable, Black | |
 | Molex 50-84-1095 | 2.13mm Diameter MLX Power Crimp Housing Plug, 9 Circuits, Natural | |
 | Molex 50-84-2062 | 2.13mm Diameter MLX Pin and Socket Receptacle, 6 Circuits, Natural | |
Product Change Notice
| Effective Date | Description of Change | Download | |||
|---|---|---|---|---|---|
| 04/13/2018 | 505339 - Packaging Method/Quantity Changing. This letter is to inform you that the part(s) referenced in this notice will undergo packaging specification changes that may include new container sizes, quantities or changes to the label. No changes will be made to the product as a result of this change. | Download | |||
