| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 39500-0009 |
| Series: | 39500 - ESE - Eurostyle Pluggable |
| Amperage: | 8 A |
| Connector Type: | ESE, Eurostyle Pluggable |
| Number of Rows: | 1 |
| Maximum Operating Temperature: | 105 °C |
| Minimum Operating Temperature: | -40 °C |
| Pitch: | 3.5 mm |
| Voltage: | 300 V |
| Orientation: | Horizontal |
| Component Type: | Plug |
| Operating Temperature Range: | -40 - 105 °C |
| Number of Contacts Loaded: | 9 |
| Polarized to Mate: | Yes |
| Wire Size: | .05 - 1.50 mm², 16 AWG, 18 AWG, 20 AWG, 22 AWG, 24 AWG, 30 AWG |
| UL Agency Certification: | E48521 |
| Termination Pitch: | 3.5 mm |
| Lock to Mating Part: | No |
| Stackable: | No |
| Part Aliases: | 0395000009 |
| SKU: | MOL39500-0009 |
39500-0009
Specifications
Detailed Description
Introducing the 39500-0009, a high-performance Eurostyle Pluggable connector designed for versatile connectivity in electronic systems. With an amperage rating of 8A and a voltage tolerance of 300V, this connector ensures reliable power transmission. Engineered for durability, it features a wide operating temperature range from -40°C to 105°C and is UL certified for added safety. The horizontal orientation and 3.5mm pitch make it ideal for space-constrained applications, with 9 contacts loaded for efficient signal transmission. Each contact is polarized for secure mating, accommodating wire sizes ranging from 24AWG to 18AWG. RoHS compliant and with part aliases for easy identification, the 39500-0009 is the perfect choice for demanding industrial environments.
Frequently Bought Together
| Product | Part # | Description | Stock |
|---|---|---|---|
 | Molex 15-97-5121 | Mini-Fit TPA Receptacle Housing, 4.20mm Pitch, Dual Row with Secondary Terminal Retention, 12 Circuits, Black |  |
 | Molex 15-97-9041 | Mini-Fit TPA Key for 2 and 4 Circuit | |
 | Molex 15-97-9061 | Mini-Fit TPA Key for 6 Circuit | |
 | Molex 15-97-9121 | Mini-Fit TPA Key for 12 Circuit | |
 | Molex 15-97-9161 | Mini-Fit TPA Key for 16 Circuit | |

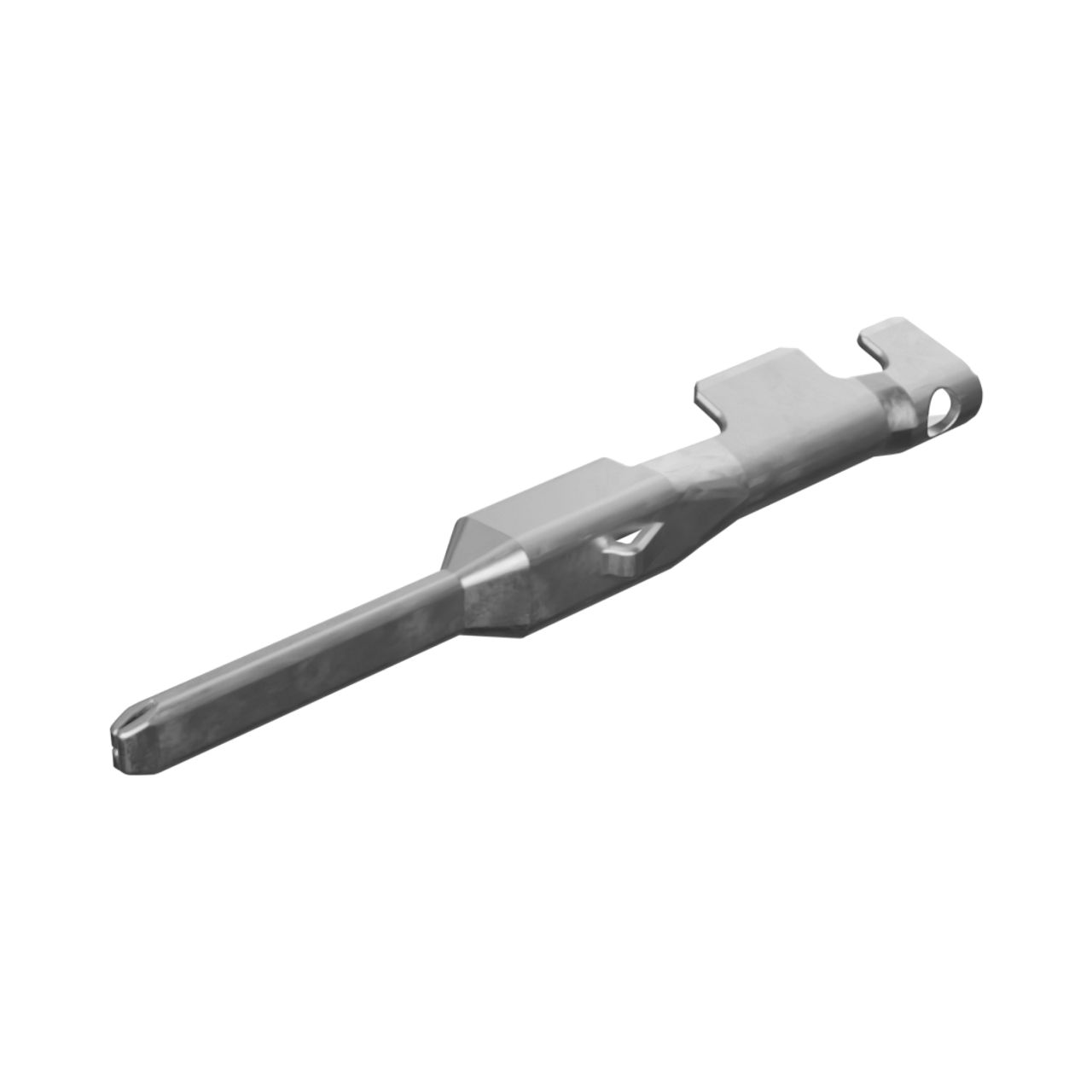

 | Molex 33000-0002 | MX150 Male Terminal, Tin Plating, 16, 18 and 20 AWG, Right Reel Payoff | |
 | Molex 33482-4801 | MX150 Sealed Male Connector, Dual Row, 8 Circuits, Polarization A, without Connector Position Assurance, Black | |
 | Molex 33482-8601 | MX150 Sealed Male Connector, Dual Row, 16 Circuits, Polarization A, without Connector Position Assurance, Black | |
 | Molex 39-00-0059 | Mini-Fit Female Crimp Terminal, Tin (Sn) over Phosphor Bronze, Double 22+22 or Single 24-18 AWG, Reel | |
 | Molex 39-00-0065 | Mini-Fit Female Crimp Terminal, Tin (Sn) over Phosphor Bronze, 28-22 AWG, Reel | |
 | Molex 39500-0002 | 3.50mm Pitch Eurostyle Horizontal Plug, 2 Circuits | |
 | Molex 39500-0007 | 3.50mm Pitch Eurostyle Horizontal Plug, 7 Circuits | |

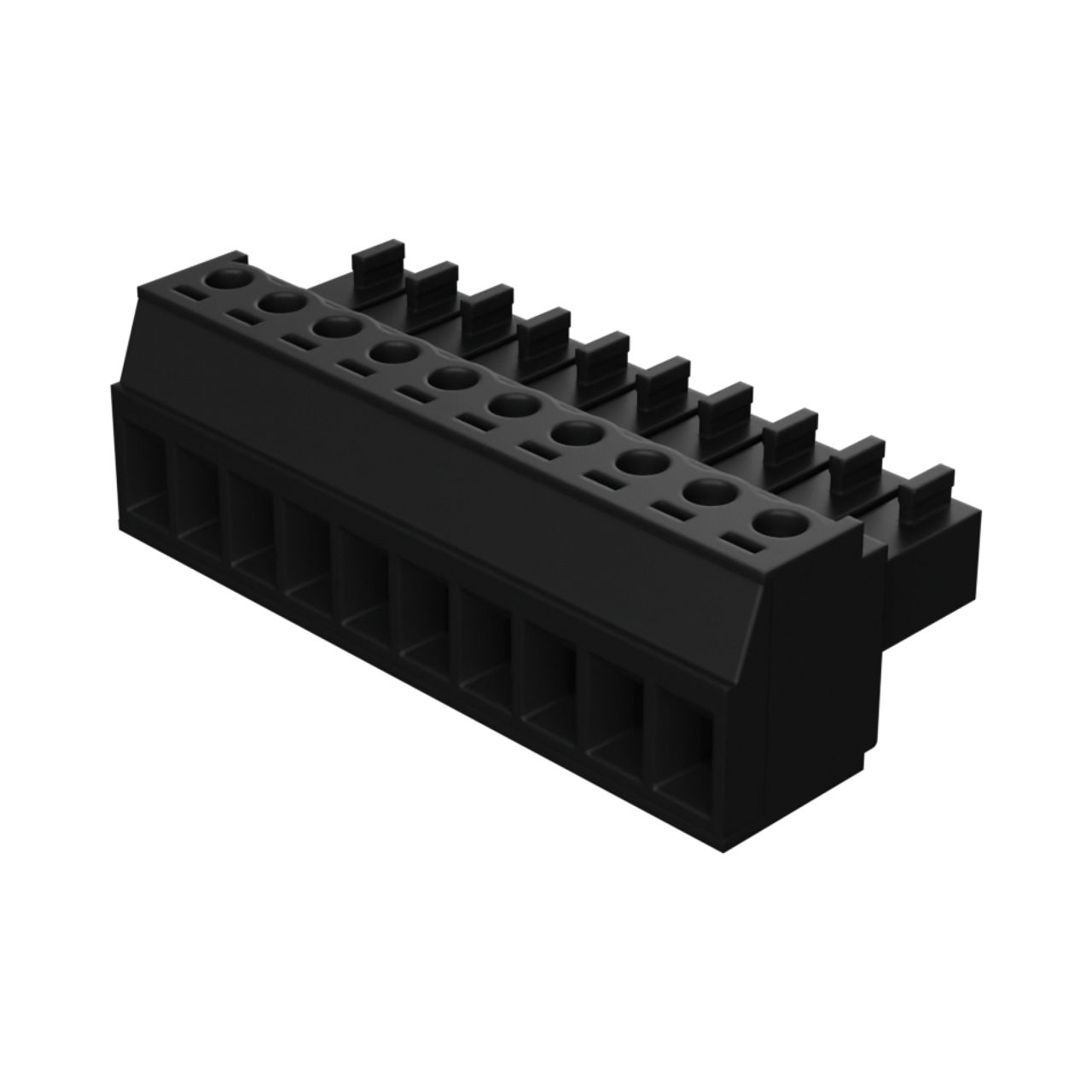

 | Molex 39500-0010 | 3.50mm Pitch Eurostyle Horizontal Plug, 10 Circuits | |
