39-31-0028

ICC Number:	MOL39-31-0028
Manufacturer:	Molex
Manufacturer Number:	39-31-0028
Datasheet:	Datasheet
ECAD Model:

Description:

Mini-Fit Jr. Vertical Header, 4.20mm Pitch, Dual Row, 2 Circuits, without Snap-in Plastic Peg PCB Lock, Gold, Natural

More >>

Specifications

Attribute	Value
Product Category:	PCB Connectors PCB Headers & Receptacles
Manufacturer:	Molex
Manufacturer Part Number:	Molex 39-31-0028
Gender:	Male
Number of Contacts:	2
Number of Rows:	2
Contact Material:	Brass
Contact Plating:	Gold, Tin
Pitch:	4.2 mm
Shrouded:	Yes
Flammability Rating:	UL 94V-0
Current Rating:	9 A
Voltage Rating:	600 V
Operating Temperature:	-40 to 105 °C
Mounting Angle:	Straight
Mounting Type:	Through Hole
PCB Connector Type:	PCB Mount Header
SKU:	MOL39-31-0028

Detailed Description

Introducing the Molex Mini-Fit Jr. Vertical Header, a high-performance PCB connector designed for reliable power and signal transmission in electronic applications. With a compact 4.20mm pitch and featuring dual rows, this header accommodates 2 circuits, making it ideal for space-constrained designs. Constructed with a durable nylon body and brass contacts plated with gold for enhanced conductivity, this connector ensures long-lasting performance even in demanding environments. With a straight body orientation and through-hole termination method, it offers easy and secure installation on PCBs. Rated for 600V and 9A, it guarantees efficient power delivery. RoHS compliant and lead-free solder process capable, this header is suitable for a wide range of applications, from consumer electronics to industrial machinery. Trust in the Molex Mini-Fit Jr. Vertical Header for seamless connectivity in your designs.

Frequently Bought Together

Product	Part #	Description	Stock
	Molex 105310-1206	Nano-Fit Vertical Header, Through Hole, 2.50mm Pitch, Dual Row, 6 Circuits, with Kinked Pins, 0.38µm Gold (Au) Plating, Black, Glow-Wire Capable

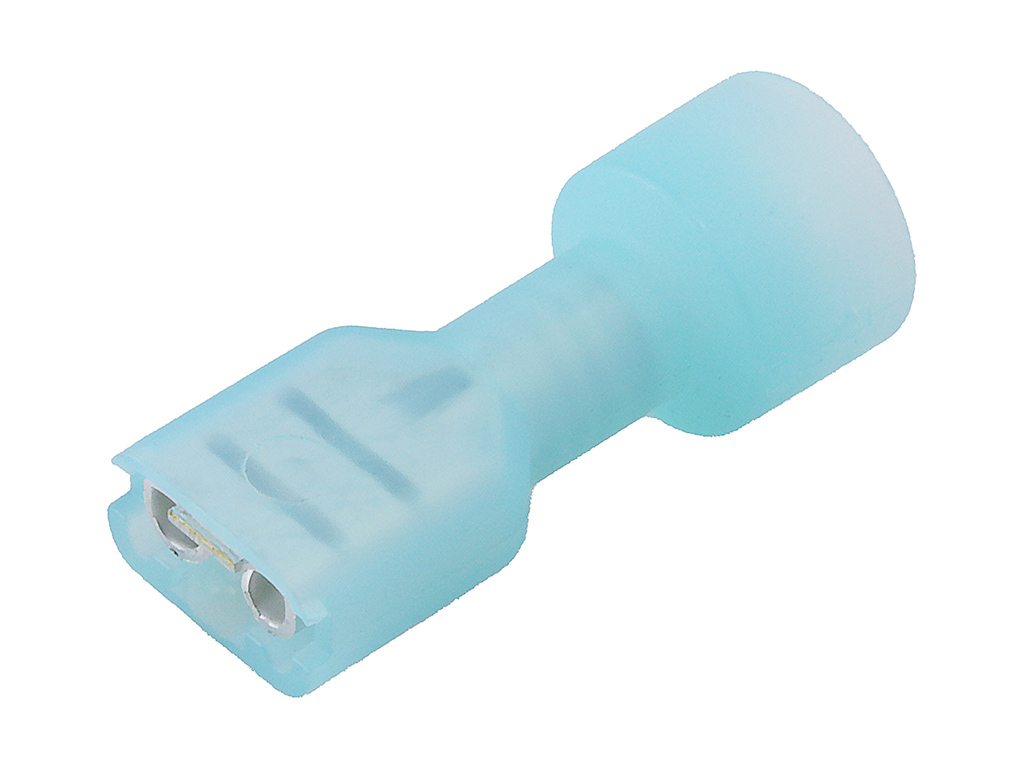

	Molex 19003-0059	InsulKrimp Quick Disconnect, Female, for 14-16 (2.00-1.30mm²), Box, Tab 4.75 x 0.81mm, Carton
	Molex 22-23-2021	KK 254 Solid Header, Vertical, with Friction Lock, 2 Circuits, 2.54µm Matte Tin (Sn) Plating, 3.56mm Tail Length
	Molex 22-28-4053	KK 254 Breakaway Header, Vertical, 5 Circuits, 0.38µm Gold (Au) Plating, Mating Pin Length 6.09mm
	Molex 39-29-6068	Mini-Fit Jr. Vertical Header, 4.20mm Pitch, Dual Row, 6 Circuits, without Snap-in Plastic Peg PCB Lock, Gold, Natural
	Molex 39-30-1042	Mini-Fit Jr. Header, Dual Row, Right-Angle, with Snap-in Plastic Peg PCB Lock, 4 Circuits, PA Polyamide Nylon 6/6 94V-0, 0.76µm Select Gold (Au) Plating
	Molex 39-30-2052	Mini-Fit Jr. Vertical Header, 4.20mm Pitch, Single Row, 5 Circuits, with Snap-in Plastic Peg PCB Lock, Gold, Natural
	Molex 39-31-0048	Mini-Fit Jr. Vertical Header, 4.20mm Pitch, Dual Row, 4 Circuits, without Snap-in Plastic Peg PCB Lock, Gold, Natural

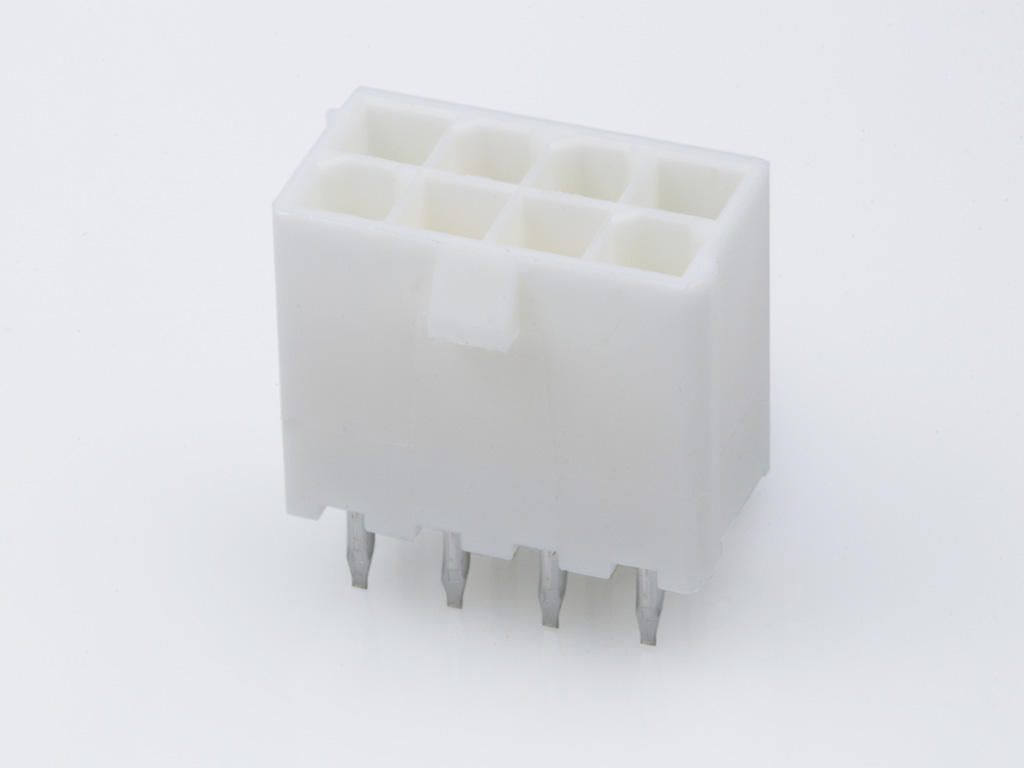

	Molex 39-31-0088	Mini-Fit Jr. Vertical Header, 4.20mm Pitch, Dual Row, 8 Circuits, without Snap-in Plastic Peg PCB Lock, Gold, Natural
	Molex 42819-2223	10.00mm Pitch Mini-Fit Sr. Header, Single Row, Vertical, 2.36mm PCB Thickness, 0.76µm Gold (Au) Selective Plating, 2 Circuits
	Molex 43045-0628	Micro-Fit 3.0 Vertical Header, 3.00mm Pitch, Dual Row, 6 Circuits, with PCB Polarizing Peg, 0.38µm Gold Plating, Glow-Wire Capable, Black
	Molex 43650-0516	Micro-Fit 3.0 Vertical Header, 3.00mm Pitch, Single Row, 5 Circuits, with PCB Polarizing Peg, 0.38µm Gold Plating, Glow-Wire Capable, Black
	Molex 53047-0510	1.25mm Pitch, PicoBlade PCB Header, Single Row, Vertical, Through Hole, Tin Plating, Friction Lock, 5 Circuits, 2.30mm PC Tail Length
	Molex 70545-0038	2.54mm Pitch SL Header, Single Row, 3.05mm Pocket, Vertical, Shrouded, with Press-Fit Plastic Peg, 4 Circuits, 0.38µm Gold (Au) Selective Plating, Tin (Sn) Tail Plating

Product Change Notice

Effective Date	Description of Change	Download
02/28/2027	518442 - Production Transfer. PSBU is transferring all Hetero molding ( molds & presses) from Lincoln 3104 to Nogales 3105. There are approximately 450 molds and 18 presses to transfer. To facilitate this, a series of PCNs will be issued covering group of molds which use the same resin.	Download
08/17/2022	511610 - Change to product. currently vertical header housings have drain hole and non-drain hole version housing. the drain holes are no longer needed they were used in the past when PCB boards were being washed and are no longer needed. therefore we are eliminating the drain hole option going forward	Download
07/18/2022	510809 - Change to product. current vertical header housings have a drain hole and non-drain hole version housing the drain holes are no longer needed (they were used in the past when PCB boards were being washed and are no longer needed) therefore we are eliminating the drain hole option going forward	Download
02/14/2022	511607 - Retraction of PCN 510948. This PCN is a retraction/ recall of PCN 510809 communicated on 1/18/22 for "current vertical header housings have a drain hole and non-drain hole version housing the drain holes are no longer needed (they were used in the past when PCB boards were being washed and are no longer needed) therefore we are eliminating the drain hole option going forward." the reason for retraction is that part numbers that did not contain the drain hole option were included in the impacted parts list used to create pcn 510809 a new pcn will be created and customers will be notified	Download
12/24/2018	506262 - Capacity Change or Tool Replacement. This letter is to inform you that another set of tooling is being added to meet the current and future demands of this product. There will be no changes in the fit, form or function from the additional tooling when compared to the current tooling.	Download
07/15/2015	GCM 10673768 - New, Modified, Or Replacement Tooling.	Download
