| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 39-29-9124 |
| Gender: | Male |
| Number of Contacts: | 12 |
| Number of Rows: | 2 |
| Contact Material: | Brass |
| Contact Plating: | Gold, Tin |
| Pitch: | 4.2 mm |
| Shroud Type: | Yes |
| Flammability Rating: | UL 94V-2 |
| Current Rating: | 9 A |
| Voltage Rating: | 600 V |
| Operating Temperature: | -40 to 105 °C |
| Mounting Angle: | Straight |
| Mounting Type: | Through Hole |
| PCB Connector Type: | PCB Mount Header |
| SKU: | MOL39-29-9124 |
39-29-9124
Specifications
Detailed Description
Introducing the Molex Mini-Fit Jr. Vertical Header, a high-performance PCB connector designed for reliable power and signal transmission. With a compact 4.20mm pitch and featuring 12 circuits in a dual row configuration, this header is perfect for space-constrained applications. The snap-in plastic peg PCB lock ensures secure board attachment, while the gold-plated brass contacts offer excellent conductivity and corrosion resistance. Constructed of durable nylon with a straight body orientation, this connector is rated for up to 600V and 9A, making it ideal for a wide range of industrial and commercial environments. RoHS compliant and lead-free solder capable, the Mini-Fit Jr. Header is both environmentally friendly and easy to integrate into your manufacturing process. Trust in Molex for quality, performance, and reliability in every connection.
Frequently Bought Together
| Product | Part # | Description | Stock |
|---|---|---|---|
 | Molex 16-02-1125 | SL Crimp Terminal, Series 71851, Female, with 0.38µm Selective Gold (Au) Plated Contact, 24-22 AWG, Bag |  |
 | Molex 39-28-9068 | Mini-Fit Jr. Vertical Header, 4.20mm Pitch, Dual Row, 6 Circuits, with Snap-in Plastic Peg PCB Lock, Gold, Natural | |
 | Molex 39-28-9128 | Mini-Fit Jr. Vertical Header, 4.20mm Pitch, Dual Row, 12 Circuits, with Snap-in Plastic Peg PCB Lock, Gold, Natural | |
 | Molex 39-29-9044 | Mini-Fit Jr. Vertical Header, 4.20mm Pitch, Dual Row, 4 Circuits, with Snap-in Plastic Peg PCB Lock, Gold, Natural | |
 | Molex 39-29-9067 | Mini-Fit Jr. Vertical Header, 4.20mm Pitch, Dual Row, 6 Circuits, with Snap-in Plastic Peg PCB Lock, Tin, Natural | |
 | Molex 39-30-1140 | Mini-Fit Jr. Header, Dual Row, Right-Angle, with Snap-in Plastic Peg PCB Lock, 14 Circuits, Nylon 6/6 94V-2, 2.54µm Matte Tin (Sn) Plating, Natural, Bag | |
 | Molex 39500-0003 | 3.50mm Pitch Eurostyle Horizontal Plug, 3 Circuits | |
 | Molex 50-57-9404 | SL Crimp Housing, Single Row, Version G, Positive Latch, 4 Circuits, Black | |
 | Molex 90156-0144 | 2.54mm Pitch C-Grid III Crimp Housing Single Row, 4 Circuits, Black | |

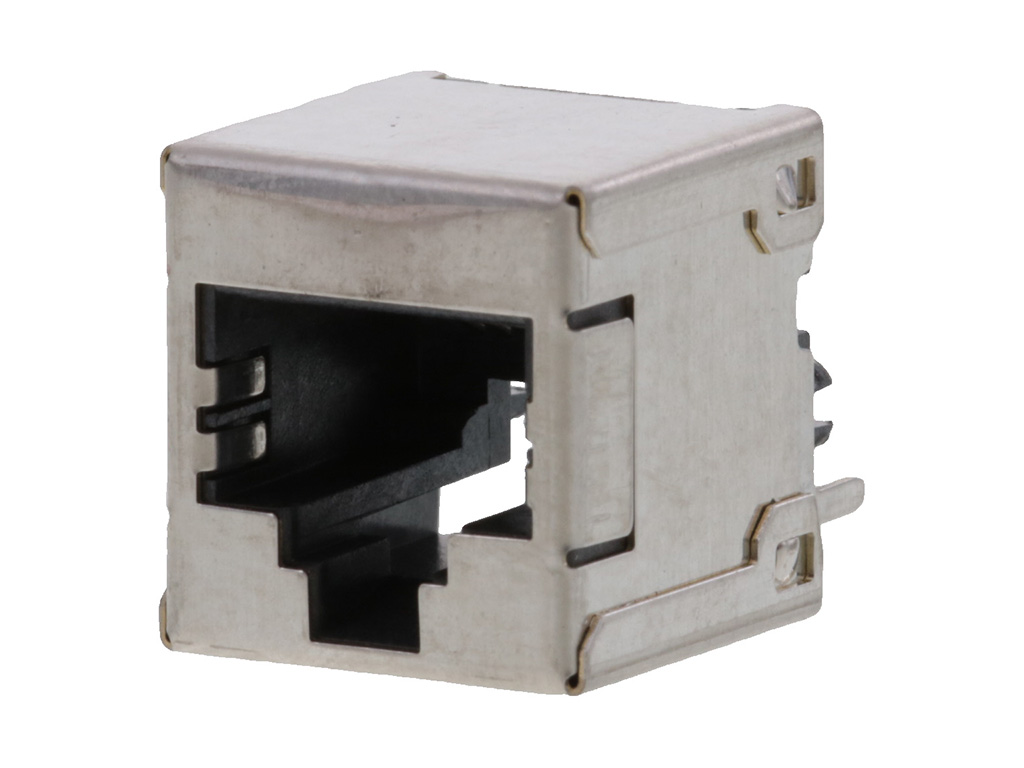

 | Molex 95623-2881 | Modular Jack, Top Entry, Through Hole, 8/8, Shielded | |
