| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 39-29-9086 |
| Gender: | Male |
| Number of Contacts: | 8 |
| Number of Rows: | 2 |
| Contact Material: | Brass |
| Contact Plating: | Tin |
| Pitch: | 4.2 mm |
| Shroud Type: | Yes |
| Flammability Rating: | UL 94V-0 |
| Current Rating: | 9 A |
| Voltage Rating: | 600 V |
| Operating Temperature: | -40 to 105 °C |
| Mounting Angle: | Straight |
| Mounting Type: | Through Hole |
| PCB Connector Type: | PCB Mount Header |
| SKU: | MOL39-29-9086 |
39-29-9086
Specifications
Detailed Description
Mini-Fit Jr. Vertical Header, 4.20mm Pitch, Dual Row, 8 Circuits, with Snap-in Plastic Peg PCB Lock, Tin, Natural. This connector, part of the 5566 - Mini-Fit Jr. series, is designed for high-performance applications, with an amperage rating of 9 A and a voltage tolerance of 600 V. Featuring a straight body orientation and through-hole termination method, it ensures secure and reliable connections. Constructed with brass contacts and nylon material, it offers durability and resilience in harsh environments. With keying and polarization for added safety, this connector is suitable for a wide range of industrial and commercial uses. RoHS compliant and lead-free process capable, it meets stringent environmental standards. The Mini-Fit Jr. Vertical Header is a dependable solution for your wire-to-board connectivity needs.
Frequently Bought Together
| Product | Part # | Description | Stock |
|---|---|---|---|

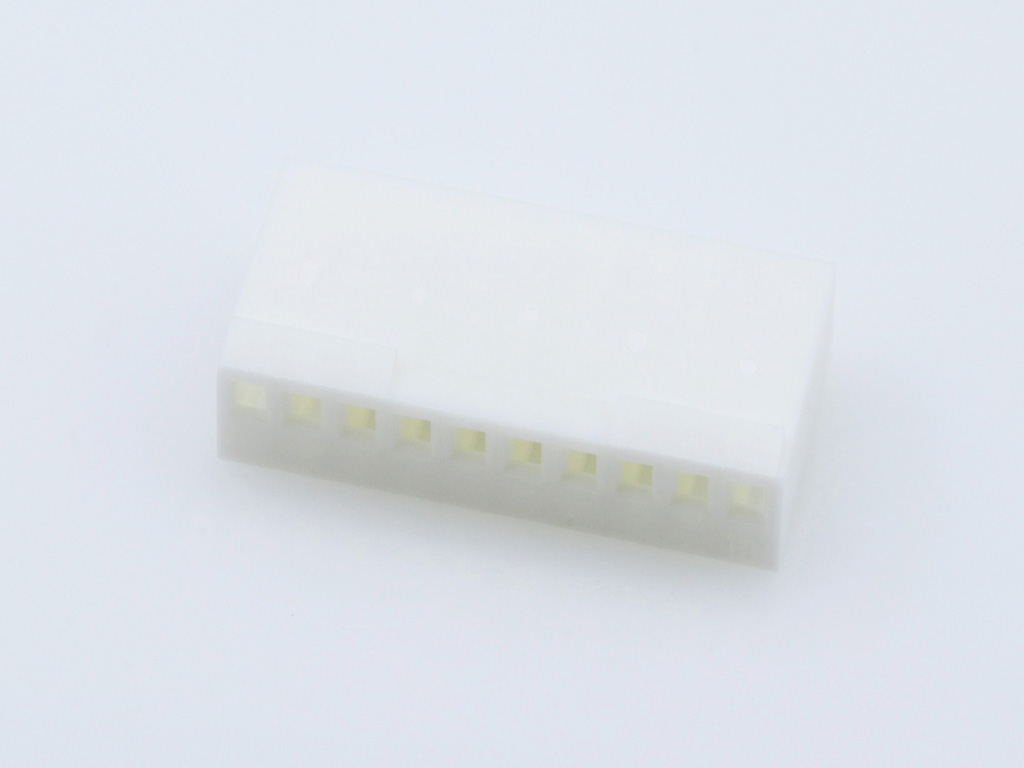

 | Molex 22-01-2107 | KK 254 Crimp Housing, Friction Ramp, 10 Circuits, Natural |  |
