39-28-8160

Heilind Number:	MOL39-28-8160
Manufacturer:	Molex
Manufacturer Number:	39-28-8160
Datasheet:	Drawing
ECAD Model:

Description:

Mini-Fit Jr. Vertical Header, 4.20mm Pitch, Dual Row, 16 Circuits, without Snap-in Plastic Peg PCB Lock, Tin, Natural

More >>

Specifications

Attribute	Value
Product Category:	PC Board Pin & Receptacle Connectors PCB Pin Headers
Manufacturer:	Molex
Manufacturer Part Number:	Molex 39-28-8160
Color:	Natural
Series:	5566 - Mini-Fit Jr.
Amperage:	9 A
Connector Type:	Mini-Fit Jr.
Number of Contacts:	16
Number of Rows:	2
Termination Method:	Through Hole
Contact Material:	Brass
Body Orientation:	Straight
Pitch:	4.2 mm
Voltage:	600 V
Material:	Nylon
Orientation:	Vertical
Keying:	No
Tail Length:	3.5 mm
Operating Temperature Range:	-40 - 105 °C
Contact Mating Area Plating:	Tin
Contact Mating Area Plating Thickness:	.889 µm
Number of Contacts Loaded:	16
Mating Cycles:	30
PCB Locator:	Yes
PCB Retention:	Without
Polarized to PCB:	Yes
Contact Termination Plating Thickness:	.889 µm
Polarized to Mate:	Yes
PCB Thickness (Recommended):	1.6 mm
Connector System:	Wire to Board
Contact Termination Plating:	Tin
Maximum Solder Process Temperature:	240 °C
Lead Free Process Capability:	WAVE
Duration at Max. Process Temperature (seconds):	005
Max. Cycles at Max. Process Temperature:	001
Termination Pitch:	4.2 mm
Glow Wire Capable:	No
Guide to Mating Part:	No
Lock to Mating Part:	Yes
Stackable:	No
Surface Mount Compatible:	No
Breakaway:	No
Make First / Break Last:	No
Shroud Type:	Fully
Material Flammability Standard:	94V-0
Part Aliases:	0039288160 5566-16A-210
SKU:	MOL39-28-8160

Detailed Description

Introducing the 39-28-8160 Mini-Fit Jr. Vertical Header, a high-performance connectivity solution for your PCB projects. This dual-row header features 16 circuits with a 4.20mm pitch, allowing for efficient power and signal transmission. Constructed with durable brass contacts and a straight nylon body, it offers reliable performance in a wide range of applications. With a current rating of 9A and a voltage tolerance of 600V, this header is suitable for demanding environments. Its through-hole termination method and tin contact mating area plating ensure secure and stable connections. RoHS compliant and lead-free process capable, the 39-28-8160 is both environmentally friendly and industry-approved. Upgrade your design with this premium Mini-Fit Jr. header for dependable and efficient board-to-board connections.

Frequently Bought Together

Product	Part #	Description	Stock
	Molex 08-50-0106	KK 396 Crimp Terminal 2478, 18-24 AWG, Bag, Brass Tin (Sn)
	Molex 22-11-2032	KK 254 Solid Header, Vertical, with Friction Lock, 3 Circuits, Gold (Au) Plating
	Molex 39-00-0038	Mini-Fit Female Crimp Terminal, Tin (Sn) over Copper (Cu) Plated Brass, Double 22+22 or Single 24-18 AWG, Reel
	Molex 39-00-0047	Mini-Fit Female Crimp Terminal, Tin (Sn) over Copper (Cu) Plated Brass, 28-22 AWG
	Molex 39-01-2160	Mini-Fit Jr. Receptacle Housing, Dual Row, 16 Circuits, UL 94V-2, Natural
	Molex 39-01-3022	Mini-Fit Jr. Receptacle Housing, Dual Row, 2 Circuits, UL 94V-2, Natural
	Molex 39-28-1083	Mini-Fit Jr. Vertical Header, 4.20mm Pitch, Dual Row, 8 Circuits, without Snap-in Plastic Peg PCB Lock, Tin, Natural
	Molex 39-28-8060	Mini-Fit Jr. Vertical Header, 4.20mm Pitch, Dual Row, 6 Circuits, without Snap-in Plastic Peg PCB Lock, Tin, Natural
	Molex 39-28-8080	Mini-Fit Jr. Vertical Header, 4.20mm Pitch, Dual Row, 8 Circuits, without Snap-in Plastic Peg PCB Lock, Tin, Natural
	Molex 39-28-8120	Mini-Fit Jr. Vertical Header, 4.20mm Pitch, Dual Row, 12 Circuits, without Snap-in Plastic Peg PCB Lock, Tin, Natural
	Molex 39-28-8140	Mini-Fit Jr. Vertical Header, 4.20mm Pitch, Dual Row, 14 Circuits, without Snap-in Plastic Peg PCB Lock, Tin, Natural
	Molex 39920-0302	15.00mm Beau Eurostyle, Fixed Mount PCB Terminal Block, High Voltage, High Power 115A, 2 Circuits
	Molex 42815-0114	Cut Strip - Mini-Fit Sr. Crimp Terminal, Female, 10-12 AWG, Silver (Ag)
	Molex 50802-8000	2.50mm Pitch Crimp Terminal, Female, Phosphor Bronze, Reel
	Molex 560123-1000	DuraClik ISL Wire-to-Board Receptacle Housing, Single Row, White, 10 Circuits
	Molex 560124-0101	DuraClik ISL Wire-to-Board Crimp Receptacle Terminal, Female, ASS 0.3 Square Wire, Tin

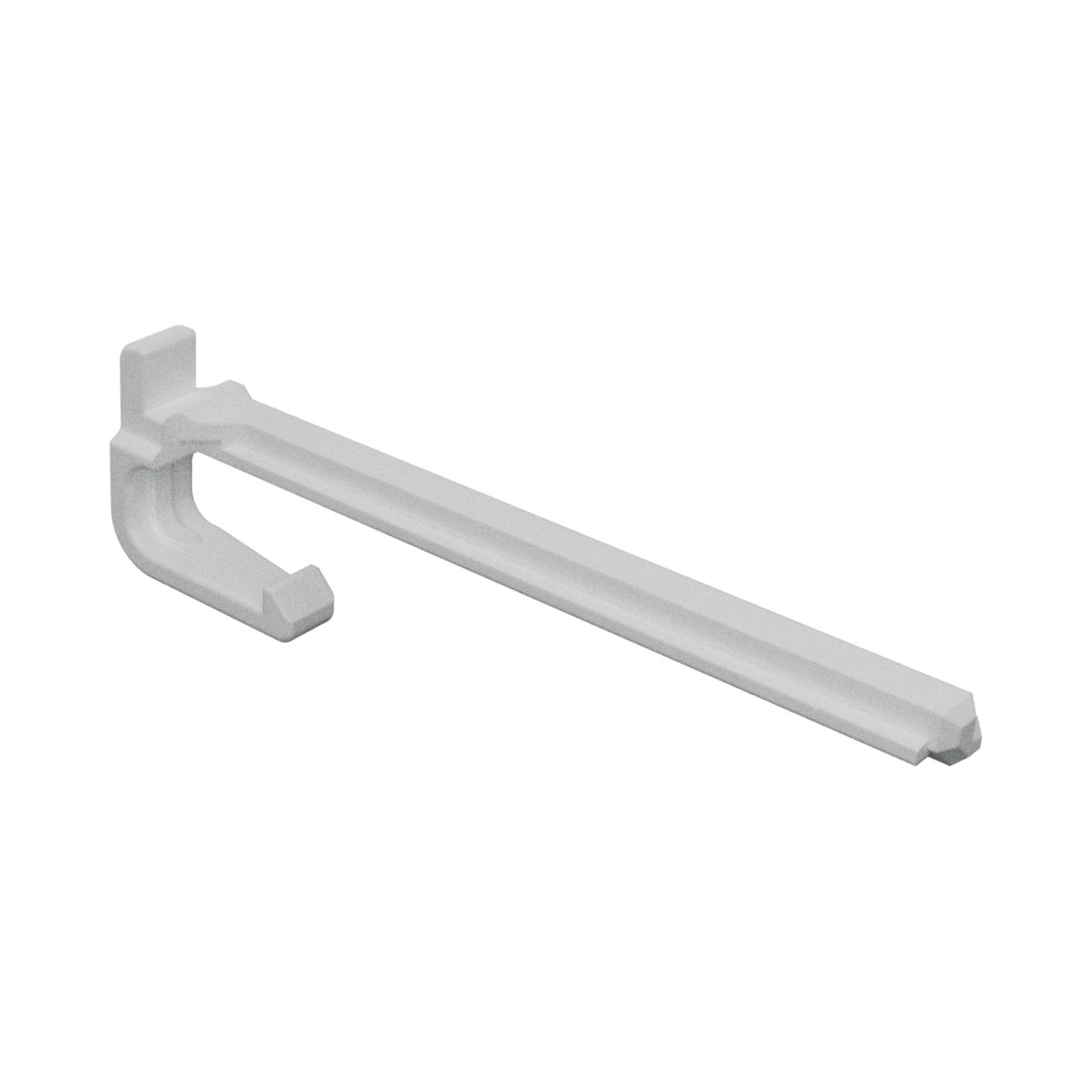

	Molex 560125-1000	DuraClik ISL Wire-to-Board Terminal Position Assurance (TPA) Retainer, 10 Circuits, Gray

Product Change Notice

Effective Date	Description of Change	Download
01/15/2026	517157 - Change Supplier. This notification is to inform you about changes that are being made to the part(s) as identified in the list. This change results in a change in the raw material.	Download
09/16/2024	514911 - Capacity change or tool replacement. This notification is to inform you that Molex Lincoln Nebraska is replacing tooling that will impact the products referenced in the attached list. This tooling will be an exact replica of the current tooling so there will be no changes in fit, form or function of product when compared to the existing tooling.	Download
01/17/2023	512182 - Capacity change or tool replacement. Parts listed on this PCN can be assembled and shipped to all customers from Nogales or Shanghai.	Download
07/18/2022	510809 - Change to product. current vertical header housings have a drain hole and non-drain hole version housing the drain holes are no longer needed (they were used in the past when PCB boards were being washed and are no longer needed) therefore we are eliminating the drain hole option going forward	Download
02/14/2022	511607 - Retraction of PCN 510948. This PCN is a retraction/ recall of PCN 510809 communicated on 1/18/22 for "current vertical header housings have a drain hole and non-drain hole version housing the drain holes are no longer needed (they were used in the past when PCB boards were being washed and are no longer needed) therefore we are eliminating the drain hole option going forward." the reason for retraction is that part numbers that did not contain the drain hole option were included in the impacted parts list used to create pcn 510809 a new pcn will be created and customers will be notified	Download
08/06/2021	510546 - Packaging Method/Quantity Changing. Due to DU discrepancy between MFG Plant and SCH, DU needs to be adapted to MFG Plant. DU change Only.	Download
07/10/2020	509107 - Supplier Change. Manufacturing transfer from Supplier A to supplier B/C.	Download
12/24/2018	506262 - Capacity Change or Tool Replacement. This letter is to inform you that another set of tooling is being added to meet the current and future demands of this product. There will be no changes in the fit, form or function from the additional tooling when compared to the current tooling.	Download
02/01/2016	GCM 10708360 - Supplier Change. Molex will be changing the pre-plated flat stock, and adding an additional supplier. This change only affects parts made in Lincoln (3104) and Nogales (3105). The current pre-plated flat stock will change from bright tin over copper to reflowed tin over copper plating. In addition, we will also be changing the post plated terminal used in the 5566, 30069, & 43588 vertical headers to the same pre-plated reflowed tin over copper plating. If post plated headers are desired, alternative part numbers are available with matte tin over nickel plating.	Download
05/23/2014	GCM 10636066 - Supplier Change. The current manufacturing sites of assembled finished goods will not be changed at all.	Download
