34791-5180

Heilind Number:	MOL34791-5180
Manufacturer:	Molex
Manufacturer Number:	34791-5180
Datasheet:	Datasheet
ECAD Model:

Description:

Mini50 Unsealed Receptacle, Single Row, Bridged, with CPA, 8 Circuits, Polarization Option A, Black

More >>

Specifications

Attribute	Value
Product Category:	Pin & Socket Housings & Contacts Pin & Socket Housings
Manufacturer:	Molex
Manufacturer Part Number:	Molex 34791-5180
Color:	Black
Series:	34791 - Mini50
Connector Type:	Mini50
Gender:	Receptacle
Housing Material:	Polybutylene Terephthalate
Number of Contacts:	8
Number of Rows:	1
Pitch:	2 mm
Material:	PBT
Keying:	Yes
Polarization:	A
Operating Temperature Range:	-40 - 105 °C
Circuit Application:	Power
Polarized to Mate:	Yes
Connector System:	Wire to Board
Termination Pitch:	2 mm
Glow Wire Capable:	No
Lock to Mating Part:	Yes
Stackable:	No
Part Aliases:	0347915180
SKU:	MOL34791-5180

Detailed Description

Introducing the 34791-5180, a Mini50 Unsealed Receptacle designed for power circuit applications. This single-row connector features 8 circuits with a bridged configuration, complete with a CPA for added security. Constructed from black Polybutylene Terephthalate (PBT), it offers reliable performance in a wide operating temperature range from -40 to 105 °C. With Polarization Option A and keying for easy mating, this connector ensures proper alignment. RoHS compliant and featuring a lock to the mating part, the 34791-5180 guarantees both safety and reliability in wire-to-board connections.

Frequently Bought Together

Product	Part #	Description	Stock
	Molex 16-02-0117	SL Crimp Terminal, Series 70021, Male, with 0.76µm Selective Gold (Au) Plated Contact, 24-22 AWG
	Molex 172253-6111	ULTRA-FIT CRIMP TERM 20-22 15M
	Molex 172256-3102	Ultra-Fit Tangless Receptacle Housing, 3.50mm Pitch, Single Row, 2 Circuits, Black, Glow-Wire Capable
	Molex 172256-3104	Ultra-Fit Tangless Receptacle Housing, 3.50mm Pitch, Single Row, 4 Circuits, Black, Glow-Wire Capable
	Molex 172264-3002	Ultra-Fit Tangless Terminal Position Assurance (TPA), 3.50mm Pitch, 2 Circuits, Black

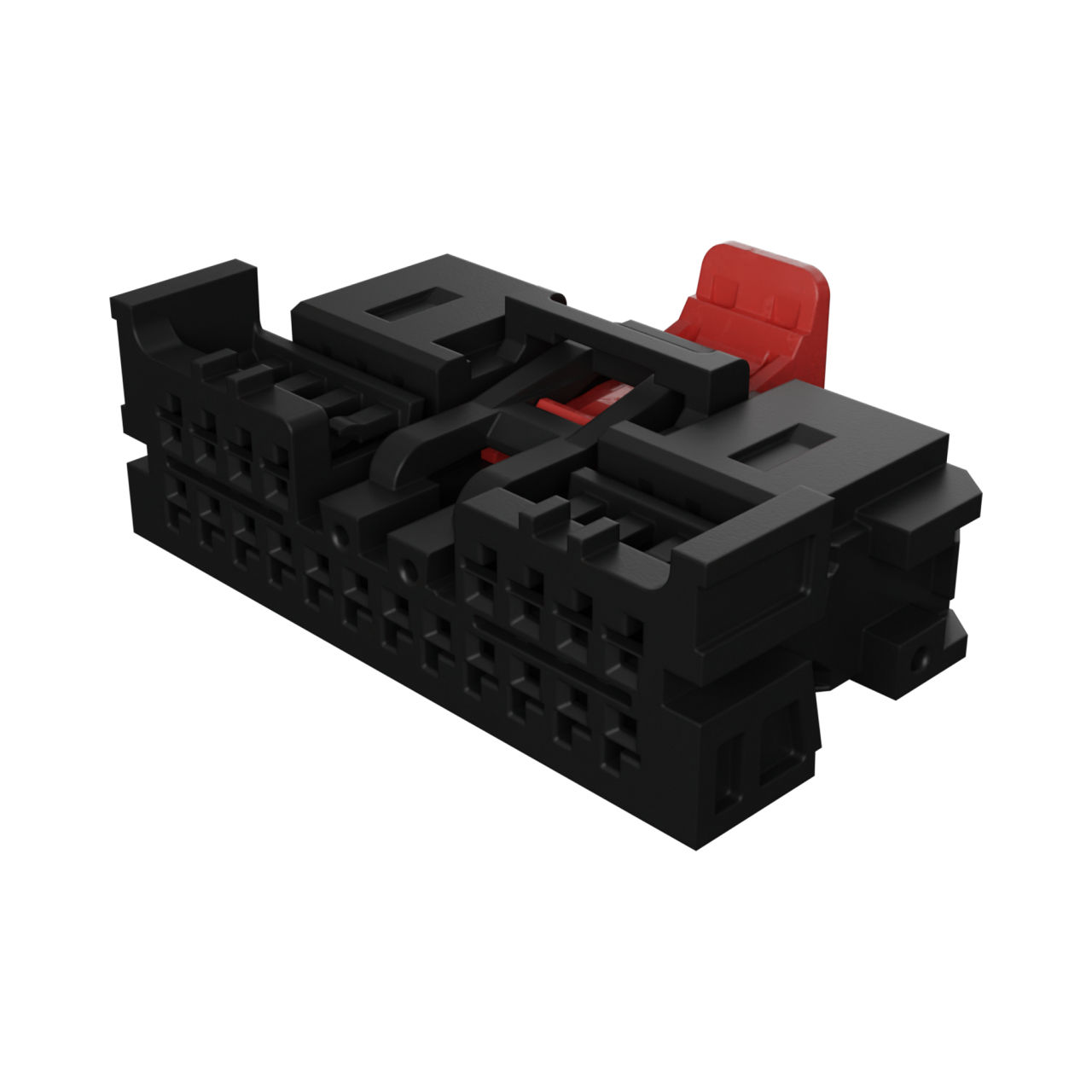

	Molex 206523-2201	MINI50 GEN II 20CKT HB RCPT C A POL A
