| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 34770-0402 |
| Color: | Gray (Light) |
| Series: | 34770 - MX150 |
| Connector Type: | MX150 |
| Gender: | Receptacle |
| Number of Contacts: | 4 |
| Number of Rows: | 1 |
| Pitch: | 3 mm |
| Material: | Nylon |
| Keying: | Yes |
| Operating Temperature Range: | -40 - 125 °C |
| Circuit Application: | Power |
| Polarized to Mate: | Yes |
| Connector System: | Wire to Board, Wire to Wire |
| Glow Wire Capable: | No |
| Lock to Mating Part: | Yes |
| Stackable: | No |
| Part Aliases: | 0347700402 |
| SKU: | MOL34770-0402 |
34770-0402
| Heilind Number: | MOL34770-0402 |
| Manufacturer: | Molex |
| Manufacturer Number: | 34770-0402 |
| Datasheet: | Packaging Specifications |
| ECAD Model: | |
Description:
MX150 Mat-Sealed Female Connector Assembly, Single Row, 4 Circuits, Keying Option B, with Connector Position Assurance, Light Gray
More >>Specifications
Detailed Description
Introducing the 34770-0402 MX150 Mat-Sealed Female Connector Assembly, a high-performance solution for your power circuit applications. This single-row connector features 4 circuits with Keying Option B for secure mating. Constructed from durable light gray nylon, it ensures reliable performance in a wide operating temperature range from -40 to 125 °C. With Connector Position Assurance and polarization to mate, this connector offers enhanced reliability in your wire to wire or wire to board connections. RoHS compliant and in stock for immediate shipping, the MX150 is the perfect choice for your connectivity needs.
Frequently Bought Together
| Product | Part # | Description | Stock |
|---|---|---|---|
 | Molex 08-50-0187 | KK Trifurcon Crimp Terminal 6838, 18-20 AWG, Reel, Brass Tin (Sn) |  |
 | Molex 19418-0038 | MX150L 12 Circuit Receptacle for 18-22 AWG Wire, without CPA | |
 | Molex 19434-0002 | MX150L Female Terminal for 8 AWG Wire, Metal Strip Carrier | |
 | Molex 33000-1004 | MX150 Male Terminal, Tin Plating, Preferred Terminal for use in Sealed Application with 0.35-0.50mm | |
 | Molex 33001-5002 | MX150 Female Terminal Sealed, Silver Plating, 18 and 20 AWG, Left Reel Payoff | |
 | Molex 33012-3002 | MX150 Female Terminal Sealed, Tin Plating, 18 and 20 AWG, Left Reel Payoff | |

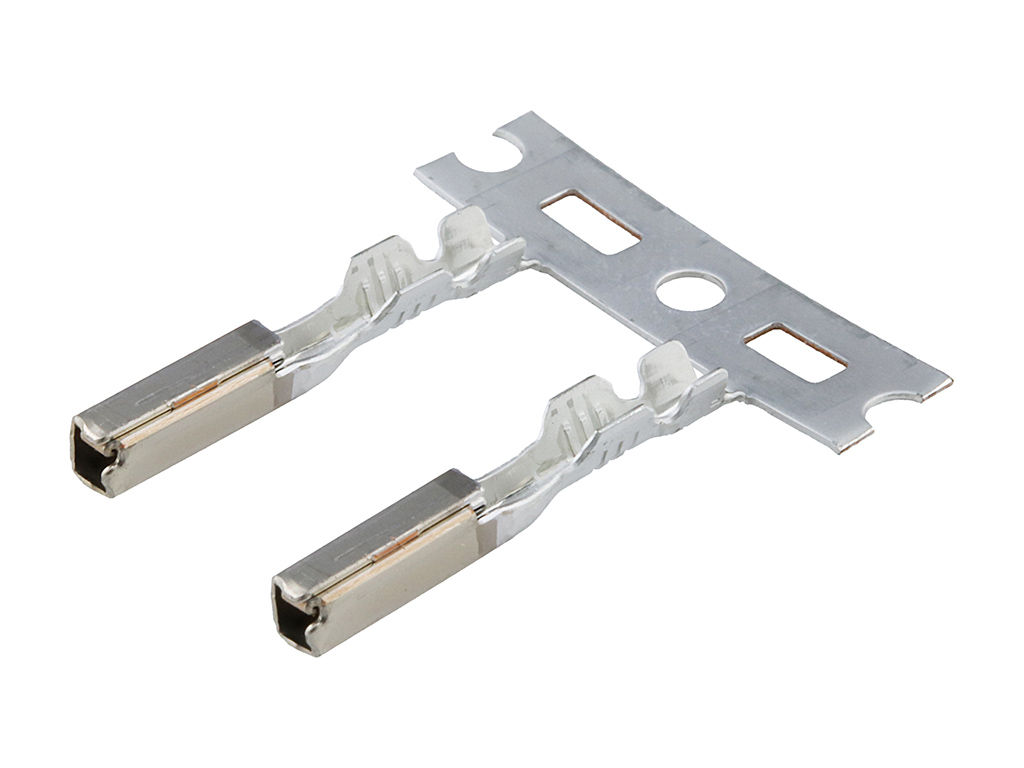

 | Molex 33467-0004 | 2.54mm Pitch MX64 Terminal, Gold (Au) Plating, 22 AWG, Left Reel Payoff, Also used with MX123 Female Receptacle Housing | |
