| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 33467-0004 |
| Series: | 33467 - MX123 - MX64 |
| Connector Type: | MX123, MX64 |
| Gender: | Female |
| Termination Method: | Crimp or Compression |
| Contact Material: | Copper |
| Contact Plating: | Gold |
| Packaging: | Reel |
| Circuit Application: | Power |
| Contact Mating Area Plating: | Gold |
| Contact Mating Area Plating Thickness: | .762 µm |
| Wire Size: | 22 AWG |
| Connector System: | Wire to Board, Wire to Wire |
| Wire Insulation Diameter: | 1.5 - 2.06 mm |
| Part Aliases: | 0334670004 |
| SKU: | MOL33467-0004 |
33467-0004
| Heilind Number: | MOL33467-0004 |
| Manufacturer: | Molex |
| Manufacturer Number: | 33467-0004 |
| Datasheet: | Packaging Specifications |
| ECAD Model: | |
Description:
2.54mm Pitch MX64 Terminal, Gold (Au) Plating, 22 AWG, Left Reel Payoff, Also used with MX123 Female Receptacle Housing
More >>Specifications
Detailed Description
Introducing the Molex MX123/MX64 Female Connector, part number 33467-0004, a high-performance solution for your automotive power applications. This versatile connector, featuring a durable copper contact with gold plating, ensures reliable conductivity in demanding environments. With options for crimp or compression termination, it offers easy installation onto 22 AWG wires, with insulation diameters ranging from 1.5 to 2.06 mm. RoHS compliant and featuring gold contact mating area plating, this connector guarantees both environmental responsibility and long-term performance. Packaged on a convenient reel for efficient handling, it is ideal for high-volume production. Trust the Molex MX123/MX64 connector for seamless wire-to-wire or wire-to-board connections in your automotive systems.
Frequently Bought Together
| Product | Part # | Description | Stock |
|---|---|---|---|
 | Molex 33001-5002 | MX150 Female Terminal Sealed, Silver Plating, 18 and 20 AWG, Left Reel Payoff |  |

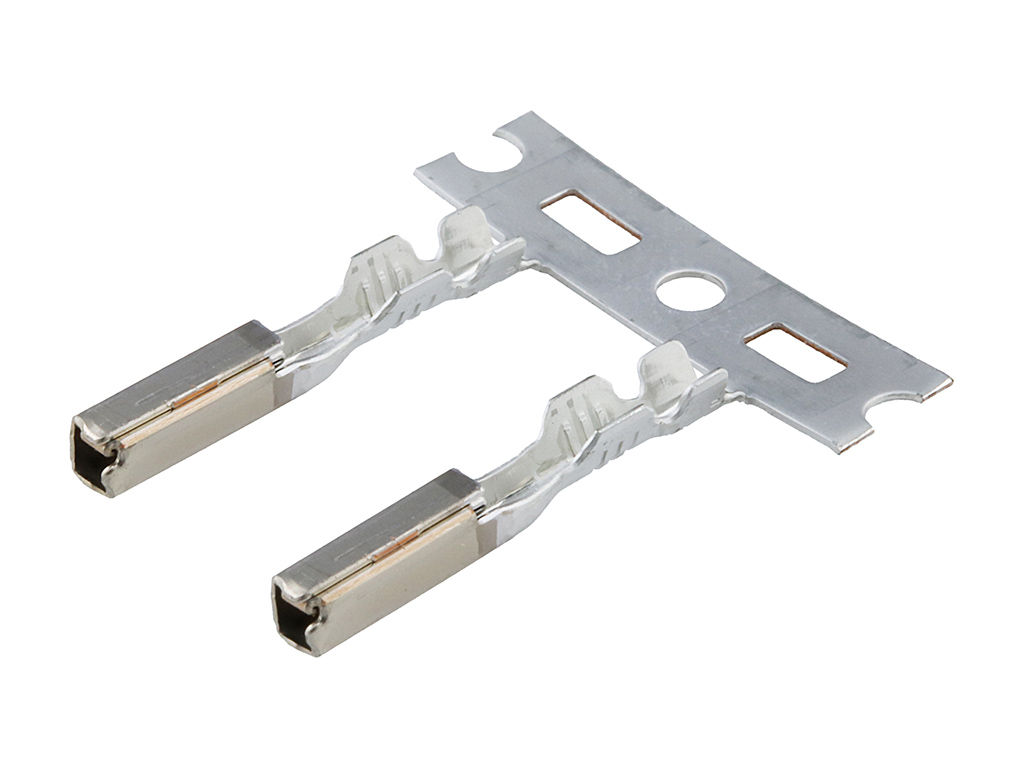

 | Molex 33467-0005 | 2.54mm Pitch MX64 Terminal, Gold (Au) Plating, 18-20 AWG, Right Reel Payoff, Also used with MX123 Female Receptacle Housing | |
 | Molex 33472-1206 | MX150 Sealed Female Connector, Dual Row, 12 Circuits, Polarization A, with Connector Position Assurance, Black | |
 | Molex 33472-4806 | MX150 Sealed Female Connector, Dual Row, 8 Circuits, Polarization A, with Connector Position Assurance, Black | |
 | Molex 34345-0001 | MX 150 Cavity Plug Sealed | |
 | Molex 34565-0003 | MX123 73/80 Circuit Dress Cover | |
 | Molex 34566-0103 | 2.54mm Pitch, MX123 Female Receptacle Housing, Keying Option A, Wire Dress Option 0, 73 Circuits, Black TPA | |
 | Molex 34566-0203 | 2.54mm Pitch, MX123 Female Receptacle Housing, Keying Option B, Wire Dress Option 0, 73 Circuits, Gray TPA | |
 | Molex 34566-0303 | 2.54mm Pitch, MX123 Female Receptacle Housing, Keying Option C, Wire Dress Option 0, 73 Circuits, Blue TPA | |
 | Molex 34586-0001 | MX123 0.64mm Grommet Seal Plug | |
 | Molex 34770-0402 | MX150 Mat-Sealed Female Connector Assembly, Single Row, 4 Circuits, Keying Option B, with Connector Position Assurance, Light Gray | |
Product Change Notice
| Effective Date | Description of Change | Download | |||
|---|---|---|---|---|---|
| 05/01/2025 | 516903 -Retraction of PCN 513675.full retraction of previously released PCN 513675. The project announced under PCN 513675 is not moving forward at this time. Should this change, a new PCN will be announced and impacted customers will be notified. | Download | |||
| 12/19/2023 | 513675 - Change Supplier. This notification is to inform that Molex Lincoln Nebraska is adding an additional Supplier impacting the part(s) as per attached list. No changes will be made to product as part of this change. | Download | |||
| 01/18/2023 | 513266 - Retraction of PCN 512010. this PCN is a retract for previously released PCN 512010 communicated on 5/19/22 for the second source material supplier being added. the reason for retraction is that there is no longer a need for the additional supplier source for material. | Download | |||
| 11/30/2022 | 512010 - Change Supplier. This notification is to inform you about addition of new Supplier or Sub Supplier impacting the part(s) as per the attached list. No changes will be made to product as part of this change. Change will only affect product out of North America. | Download | |||
| 08/01/2020 | 508485 - Warehouse transfer. moving from Lincoln (duns# 967495487) to Bolingbrook (Duns# 103340709) | Download | |||
| 03/31/2017 | 502030 - Capacity change or tool replacement. This letter is to inform you that another set of tooling is being added to meet the current and future demands of this product. There will be no changes in the fit, form or function from the additional tooling when compared to the current tooling. | Download | |||
Availability
Immediate Shipment:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
Additional Resources
| Attribute | Value |
|---|---|
| Molex: | 33467-0004 |
| Other Names: | 0334670004 |
