33481-0601

Heilind Number:	MOL33481-0601
Manufacturer:	Molex
Manufacturer Number:	33481-0601
Datasheet:	Product Specification
ECAD Model:

Description:

MX150 Sealed Male Connector, Single Row, 6 Circuits, Polarization A, without Connector Position Assurance, Black

More >>

Specifications

Attribute	Value
Product Category:	Pin & Socket Housings & Contacts Pin & Socket Housings
Manufacturer:	Molex
Manufacturer Part Number:	Molex 33481-0601
Color:	Black, Natural
Series:	33481 - MX150
Connector Type:	MX150
Gender:	Plug
Number of Contacts:	6
Number of Rows:	1
Pitch:	3.5 mm
Material:	Modified Polystyrene Alloy
Keying:	Yes
Packaging:	Bag
Operating Temperature Range:	-40 - 125 °C
Circuit Application:	Power
Polarized to Mate:	Yes
Connector System:	Wire to Wire
Glow Wire Capable:	No
Lock to Mating Part:	Yes
Stackable:	No
Product Name:	MX150
Part Aliases:	0334810601
Contact Detail:	6
SKU:	MOL33481-0601

Detailed Description

Introducing the 33481-0601 MX150 Sealed Male Connector, a crucial component for your power circuit applications. This single-row connector features 6 contact points with polarization A for secure mating. Crafted from a durable Modified Polystyrene Alloy, it ensures reliable performance in a wide operating temperature range from -40 to 125 °C. Designed for wire-to-wire connection, this black connector offers keying for added security and is RoHS compliant. Perfect for automotive, industrial, and consumer electronics, the MX150 is a trusted solution for your connectivity needs.

Frequently Bought Together

Product	Part #	Description	Stock
	Molex 172253-7023	Ultra-Fit Tangless Crimp Terminal, Female, Tin (Sn) Plating, 16-18 AWG
	Molex 172264-4006	Ultra-Fit Tangless Terminal Position Assurance (TPA), 3.50mm Pitch, 6 Circuits, Natural
	Molex 19189-0002	Krimptite Butt Splice for 18-22 AWG Wire
	Molex 33000-0002	Cut Strip - MX150 Male Terminal for Mat-Sealed or Unsealed Connectors, Tin Plating, 16, 18 and 20 AWG, Right Reel Payoff
	Molex 33000-1002	MX150 Male Terminal, Tin Plating, 16, 18 and 20 AWG, Left Reel Payoff
	Molex 33471-0401	MX150 Sealed Female Connector, Single Row, 4 Circuits, Polarization A, without Connector Position Assurance, Black
	Molex 33472-0606	MX150 Sealed Female Connector, Dual Row, 6 Circuits, Polarization A, with Connector Position Assurance, Black
	Molex 33472-0607	MX150 Sealed Female Connector, Dual Row, 6 Circuits, Polarization B, with Connector Position Assurance, Light Gray
	Molex 33472-1601	MX150 Sealed Female Connector, Dual Row, 16 Circuits, Polarization A, without Connector Position Assurance, Black
	Molex 33472-4806	MX150 Sealed Female Connector, Dual Row, 8 Circuits, Polarization A, with Connector Position Assurance, Black
	Molex 33482-4801	MX150 Sealed Male Connector, Dual Row, 8 Circuits, Polarization A, without Connector Position Assurance, Black
	Molex 33482-8601	MX150 Sealed Male Connector, Dual Row, 16 Circuits, Polarization A, without Connector Position Assurance, Black
	Molex 34345-0001	MX 150 Cavity Plug Sealed

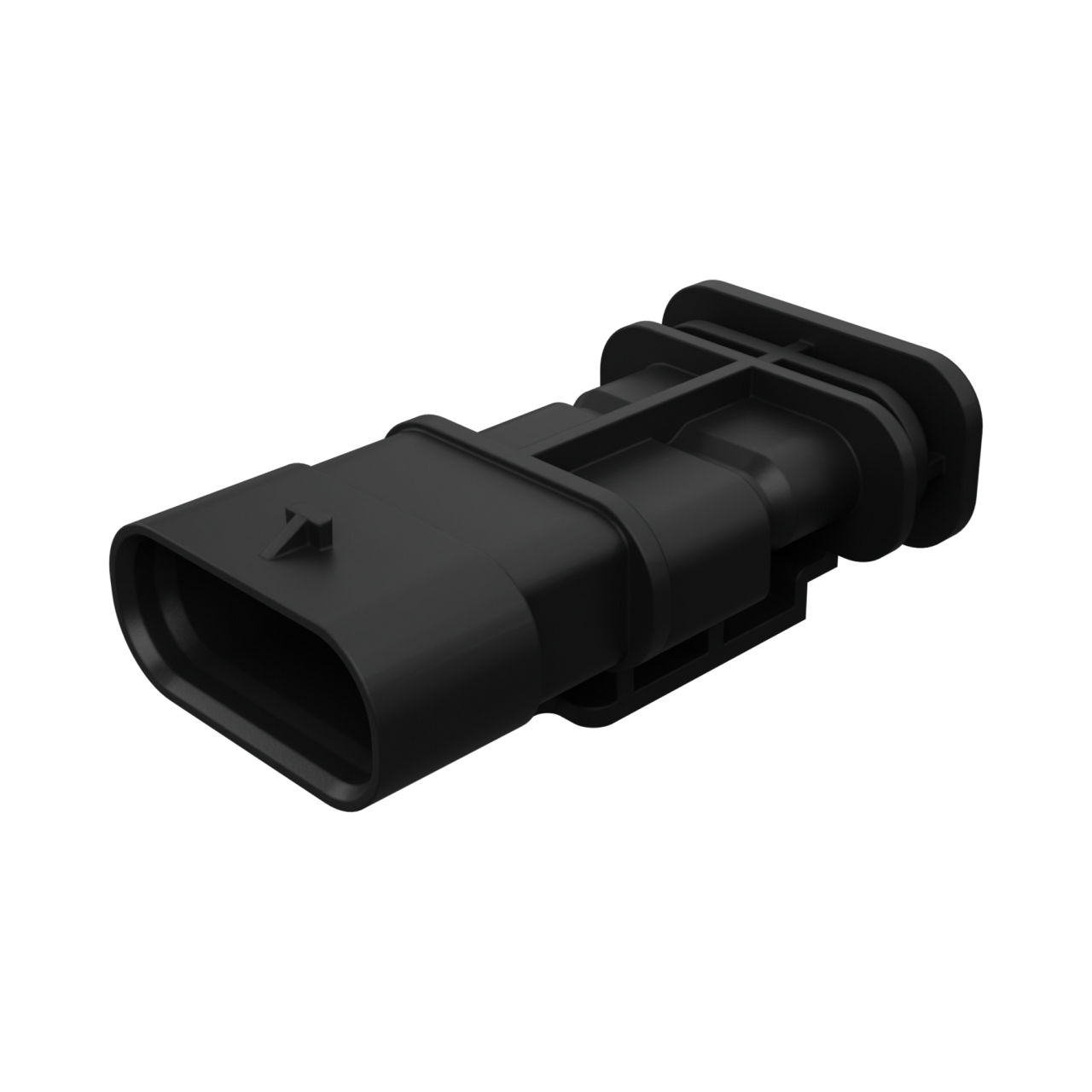

	Molex 34899-4080	MXP120 Sealed Male Blade Connector with 7.00mm Clip-Slot, 4 Circuit, Black Housing (T3-V2-S3 / T4-V4-S3 with Backshell, T3-V2-S2 / T4-V4-S2 without Backshell), Backshell Interface Option 2, Key A
	Molex 39-01-2060	Mini-Fit Jr. Receptacle Housing, Dual Row, 6 Circuits, UL 94V-2, Natural
	Molex 39-01-3028	Mini-Fit Jr. Receptacle Housing, Dual Row, 2 Circuits, UL 94V-0, Natural
	Molex 45750-1111	Mini-Fit Plus Crimp Terminal, 20-18 AWG, Reel, Copper (Cu) Alloy, Tin (Sn)

Product Change Notice

Effective Date	Description of Change	Download
05/02/2025	516742 - Retraction of 513492. This retraction is to annunce that this PCN “513492” did not take place and Molex continues with the same compounder.	Download
12/31/2024	516233 - Full Retraction of PCN 514140. This notification is to advise you of a modification to a previously issued PCN. Please refer to the information below for details regarding the amendment. Molex Has identified and is exploring a list of countermeasures in lieu of the proposed design change to prevent damage to the connector during the assembly process. for this reason molex is retracting the ppcn and will re-initiate them should there be a need in the future. customers will continue to receive parts with existing design level.	Download
02/20/2024	514140 - Change to Product. Molex is introducing a slight geometry change (relief slot) to the MX150 product family to eliminate the need for moisture conditioning the connector housing prior to the finished goods assembly process.	Download
07/21/2023	513492 - Change Supplier. This letter is to inform you that in order to re-balance global supply chains, Molex will qualify a new compounder location to be used by the existing resin supplier.	Download
10/21/2022	512766 - Retraction of PCN 512372 Equipment Transfer. this PCN is a partial retraction to previous PCN 512372 communicated July 22, 2022. "production transfer to guadalajara 2 reason for partial retraction is that the attached part numbers will remain in current MFG location	Download
10/07/2022	512372 - Equipment Transfer, Production Transfer or Rearrangement. This notification is to inform you about an equipment transfer that has been used to manufacture impacted part(s). Equipment has been moved to different site/ location/ premises. No changes will be made to product part, fit nor function as part of this change.	Download
03/01/2021	509569 - Packaging Method/Quantity Changing. we will change the DU(SPQ) and packing method of MX150 series, the air bag packaging method has better cushioning and handling No impact to fit form or function.	Download
10/10/2016	50127 - Capacity change or tool replacement. This letter is to inform you that another set of tooling is being added to meet the current and future demands of this product. There will be no changes in the fit, form or function from the additional tooling when compared to the current tooling.	Download
03/14/2015	GCM 10670523 - New, Modified, Or Replacement Tooling.	Download
