Heilind Number:	MOL33471-0401
Manufacturer:	Molex
Manufacturer Number:	33471-0401
Datasheet:	Packaging Specifications
ECAD Model:

Description:

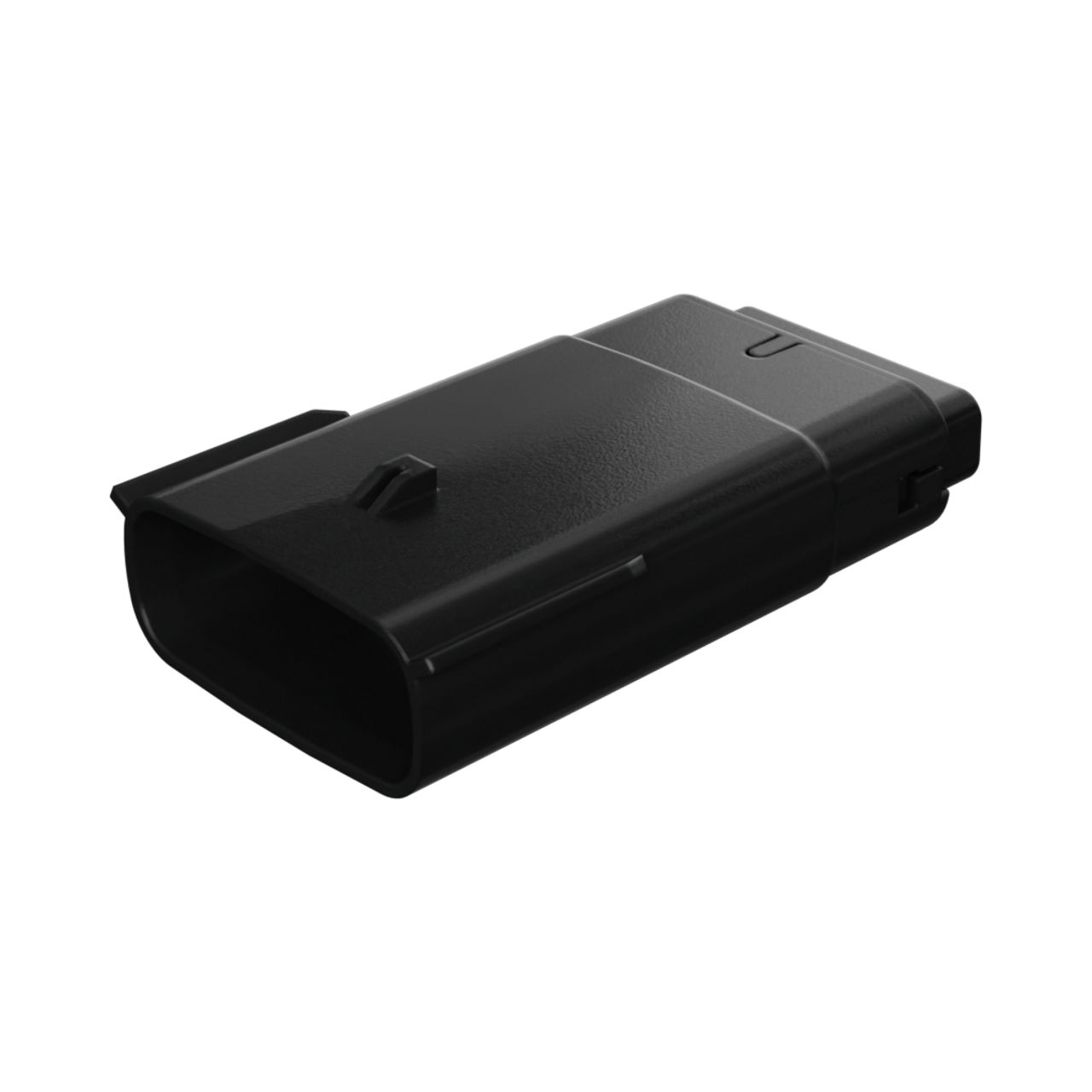

MX150 Sealed Female Connector, Single Row, 4 Circuits, Polarization A, without Connector Position Assurance, Black

More >>

Specifications

Attribute	Value
Product Category:	Pin & Socket Housings & Contacts Pin & Socket Housings
Manufacturer:	Molex
Manufacturer Part Number:	Molex 33471-0401
Color:	Black, Natural
Series:	33471 - MX150
Connector Type:	MX150
Gender:	Receptacle
Number of Contacts:	4
Number of Rows:	1
Pitch:	3.5 mm
Material:	Modified Polystyrene Alloy
Keying:	Yes
Packaging:	Bag
Operating Temperature Range:	-40 - 125 °C
Circuit Application:	Power
Polarized to Mate:	Yes
Connector System:	Wire to Board, Wire to Wire
Glow Wire Capable:	No
Lock to Mating Part:	Yes
Stackable:	No
Product Name:	MX150
Part Aliases:	0334710401
SKU:	MOL33471-0401

Detailed Description

The MX150 Sealed Female Connector is a reliable and versatile solution for power applications, featuring a single row design with 4 circuits. Constructed from a durable Modified Polystyrene Alloy, this connector is suited for use in a wide operating temperature range from -40 to 125 °C. With Polarization A and keying for added security, it ensures proper mating every time. Packaged in a convenient bag, it is easy to handle and store. RoHS compliant and with a black natural color, the MX150 is a high-quality connector for wire to wire and wire to board connections. With its compact 3.5 mm pitch and secure lock to mating part, it offers excellent performance in various electronic systems.
