| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 33012-3001 |
| Series: | 33012 - MX150 |
| Connector Type: | MX150 |
| Gender: | Female |
| Termination Method: | Crimp or Compression |
| Contact Material: | High Performance Alloy (HPA) |
| Contact Plating: | Tin |
| Voltage: | 14 V DC |
| Circuit Application: | Power |
| Contact Mating Area Plating: | Tin |
| Contact Mating Area Plating Thickness: | .508 µm |
| Mating Cycles: | 25 |
| Contact Termination Plating Thickness: | .508 µm |
| Wire Size: | 14 AWG, 16 AWG, 1.5 mm² |
| Connector System: | Wire to Board, Wire to Wire |
| Contact Termination Plating: | Tin |
| Wire Insulation Diameter: | 2.7 mm |
| Part Aliases: | 0330123001 |
| SKU: | MOL33012-3001 |
33012-3001
| Heilind Number: | MOL33012-3001 |
| Manufacturer: | Molex |
| Manufacturer Number: | 33012-3001 |
| Datasheet: | Product Specification |
| ECAD Model: | |
Specifications
Detailed Description
Introducing the 33012-3001, a high-performance MX150 Female Terminal Sealed connector designed for power applications in the automotive industry. With Tin Plating and suitable for 14 and 16 AWG wires, this terminal ensures secure and reliable connections. Featuring a Left Reel Payoff for convenient installation, it is compatible for both Wire to Wire and Wire to Board connections. Constructed with a durable High Performance Alloy (HPA) and Tin contact plating, it guarantees longevity and efficient conductivity. With a voltage rating of 14 V DC and RoHS compliance, this connector is a dependable choice for your automotive needs.
Frequently Bought Together
| Product | Part # | Description | Stock |
|---|---|---|---|
 | Molex 08-50-0113 | KK 254 Crimp Terminal, 22-30 AWG, Hot Tin (Sn) Dip Plating |  |
 | Molex 30700-1167 | 2.54mm Pitch, 0.64mm Width H-DAC 64 High Density Automotive Connectors, Dual Row, Female Harness Assembly, 16 Circuits, Polarization Option 1, Gray | |

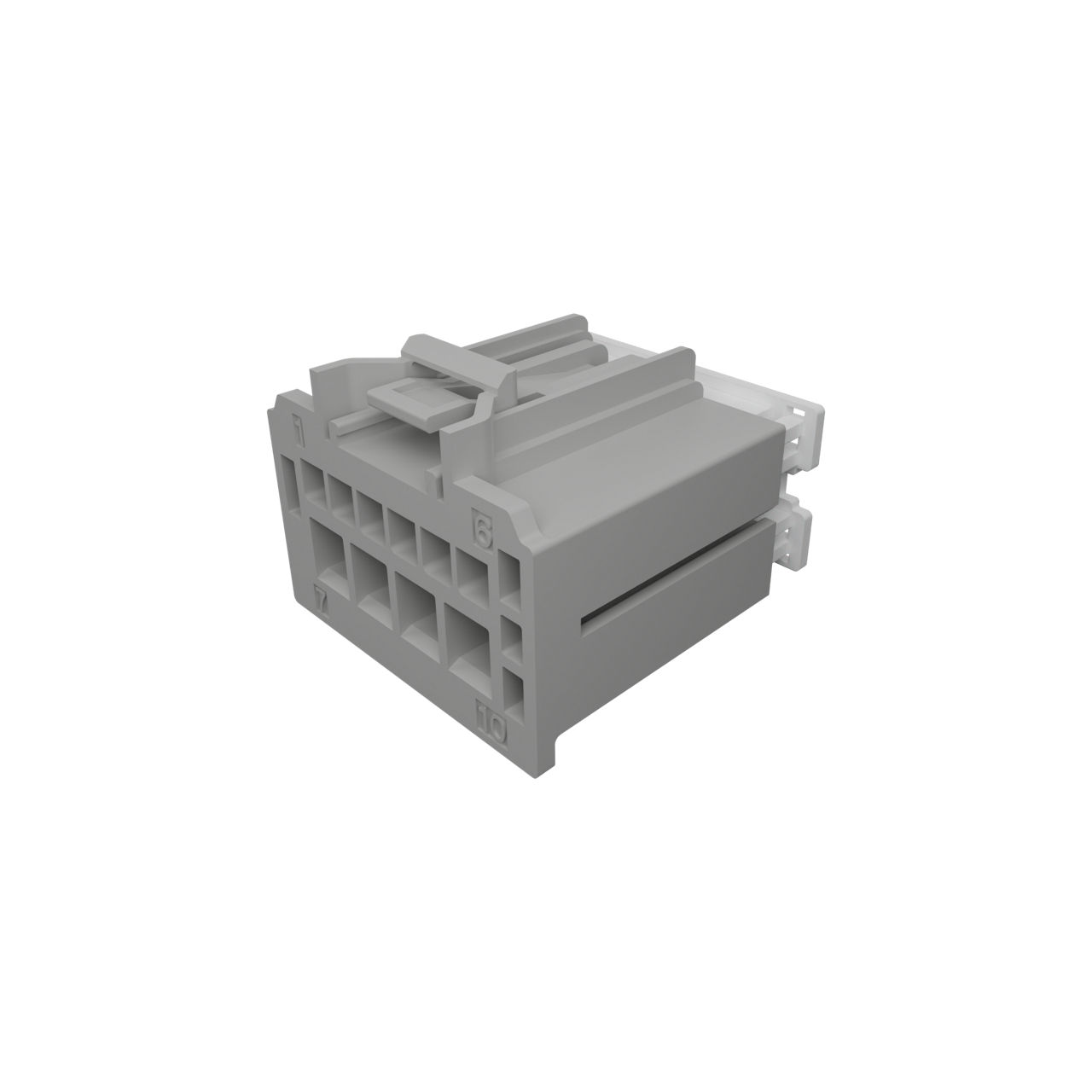

 | Molex 31372-1100 | Stac64 Hybrid Receptacle Assembly, 10 Circuit, Gray, Polarization B | |

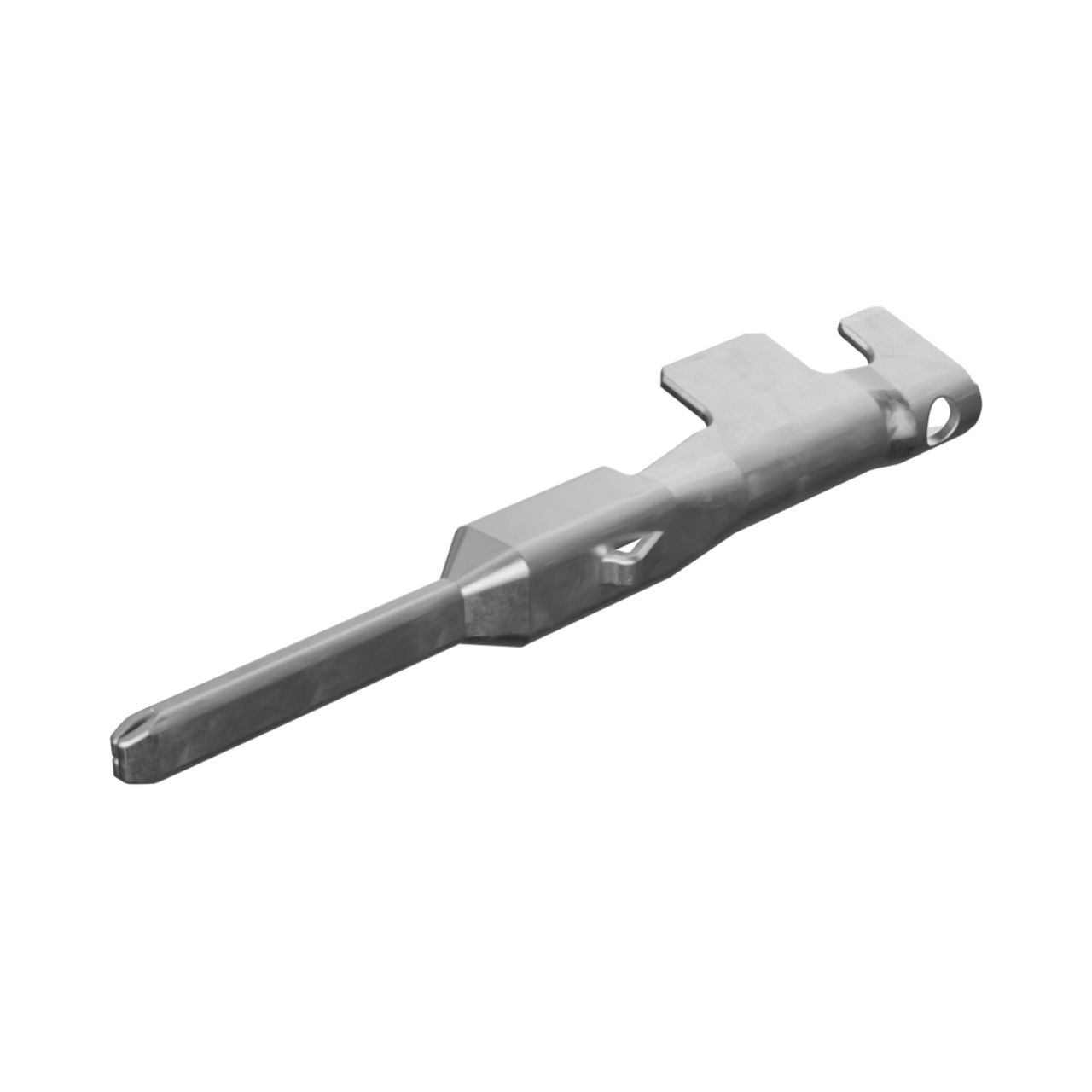

 | Molex 33000-1001 | MX150 Male Terminal, Tin Plating, 14 AWG, Left Reel Payoff | |
