| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 31372-1000 |
| Color: | Black |
| Series: | 31372 - Stac64 |
| Amperage: | 22 A, 30 A |
| Connector Type: | Stac64 |
| Gender: | Receptacle |
| Number of Contacts: | 10 |
| Number of Rows: | 2 |
| Pitch: | 3.5 mm, 5.25 mm |
| Material: | Modified Polystyrene |
| Number of Ports: | 10 |
| Keying: | No |
| Operating Temperature Range: | -40 - 100 °C |
| Circuit Application: | Power |
| Polarized to Mate: | Yes |
| Connector System: | Wire to Board |
| Glow Wire Capable: | No |
| Lock to Mating Part: | Yes |
| Stackable: | No |
| Part Aliases: | 0313721000 |
| Contact Detail: | 10 |
| SKU: | MOL31372-1000 |
31372-1000
| Heilind Number: | MOL31372-1000 |
| Manufacturer: | Molex |
| Manufacturer Number: | 31372-1000 |
| Datasheet: | RoHS Certificate of Compliance |
| ECAD Model: | |
Specifications
Detailed Description
Introducing the Stac64 Hybrid Receptacle Assembly, a high-performance connectivity solution designed for power applications. This 10-circuit receptacle features a durable black housing with Polarization A for secure mating. With a current rating of 22A and 30A, it is suitable for demanding environments. Constructed from modified Polystyrene, it offers excellent durability and reliability, even in extreme temperatures ranging from -40 to 100°C. Each assembly is RoHS compliant, ensuring it meets stringent environmental standards. Perfect for wire-to-board connections, this connector is ideal for a wide range of industrial applications. Trust in the quality and performance of the Stac64 for your connectivity needs.
Frequently Bought Together
| Product | Part # | Description | Stock |
|---|---|---|---|
 | Molex 09-50-3041 | KK 3.96mm Crimp Terminal Housing, Friction Ramp, 4 Circuits, Natural |  |
 | Molex 19164-0050 | Perma-Seal Female Quick Disconnect Receptacle for 14-16 AWG Wire, Tab Size 6.35 x 0.81mm | |
 | Molex 19193-0094 | VersaKrimp Ring Tongue Terminal for 10-12 AWG Wire | |
 | Molex 19193-0170 | D-351-38T RING VERSAKRIMP TAPE DBL SPACE | |
 | Molex 19221-0232 | Compression Style Ring Tongue Terminal for 4 AWG Wire, Stud Size 3/8 (M9), Tin Plated | |
 | Molex 19420-0010 | MX150L Female Terminal for 18-22 AWG Wire, Tin Plated | |
 | Molex 19434-0003 | MX150L Female Terminal for 10-12 AWG Wire | |
 | Molex 33012-2002 | Cut Strip - MX150 Female Terminal for Mat-Sealed Connectors, Tin Plating, 18 and 20 AWG, Right Reel Payoff | |
 | Molex 33472-1606 | MX150 Sealed Female Connector, Dual Row, 16 Circuits, Polarization A, with Connector Position Assurance, Black | |
 | Molex 34729-0160 | Stac64 Receptacle Assembly, 16 Circuits, Polarization A, Black, Tray | |

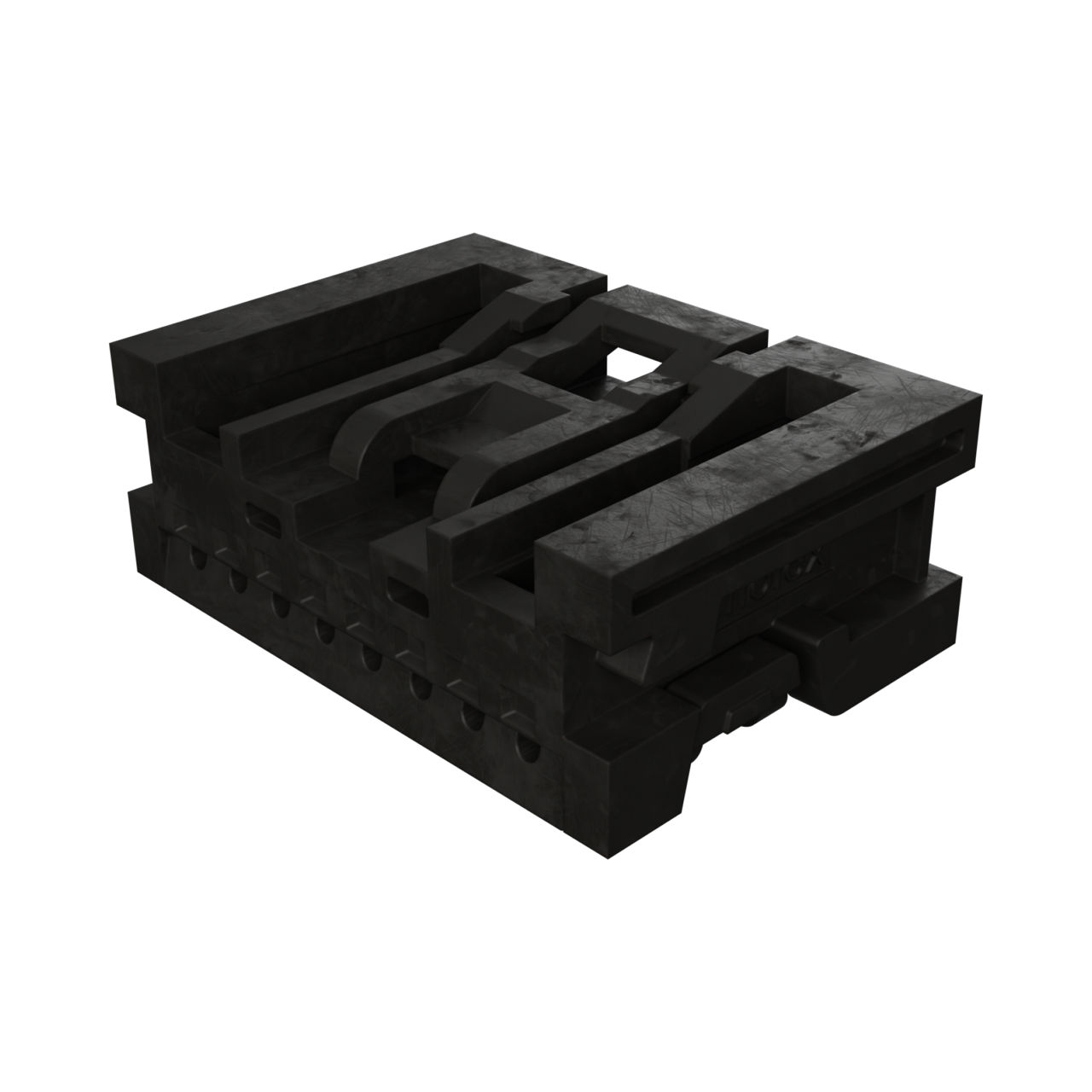

 | Molex 34791-0080 | Mini50 Unsealed Receptacle, Single Row, Non-Bridged, 8 Circuits, Polarization Option A, Black | |
