| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 30700-1081 |
| Color: | Black |
| Series: | 30700 - H-DAC 64 |
| Amperage: | 7 A |
| Connector Type: | H-DAC 64 |
| Gender: | Receptacle |
| Number of Contacts: | 8 |
| Number of Rows: | 2 |
| Pitch: | 2.54 mm |
| Material: | Modified Polystyrene |
| Operating Temperature Range: | -40 - 100 °C |
| Circuit Application: | Power |
| Polarized to Mate: | Yes |
| Connector System: | Wire to Board, Wire to Wire |
| Glow Wire Capable: | No |
| Lock to Mating Part: | Yes |
| Stackable: | No |
| Part Aliases: | 0307001081 |
| SKU: | MOL30700-1081 |
30700-1081
| Heilind Number: | MOL30700-1081 |
| Manufacturer: | Molex |
| Manufacturer Number: | 30700-1081 |
| Datasheet: | Product Specification |
| ECAD Model: | |
Description:
2.54mm Pitch, 0.64mm Width H-DAC 64 High Density Automotive Connectors, Dual Row, Female Harness Assembly, 8 Circuits, Polarization Option 2, Black
More >>Specifications
Detailed Description
Introducing the 30700-1081, a high-performance black H-DAC 64 connector designed for power applications. With a robust amperage rating of 7A, this receptacle features 8 contacts arranged in 2 rows for efficient connectivity. The 2.54mm pitch allows for secure wire-to-wire or wire-to-board connections. Crafted from modified polystyrene, this connector ensures reliable performance in extreme temperatures ranging from -40 to 100°C. Engineered with a polarized design and a locking mechanism, it guarantees a secure and stable connection. RoHS compliant and with no glow-wire capability, the 30700-1081 is a dependable choice for various electronic systems.
Frequently Bought Together
| Product | Part # | Description | Stock |
|---|---|---|---|

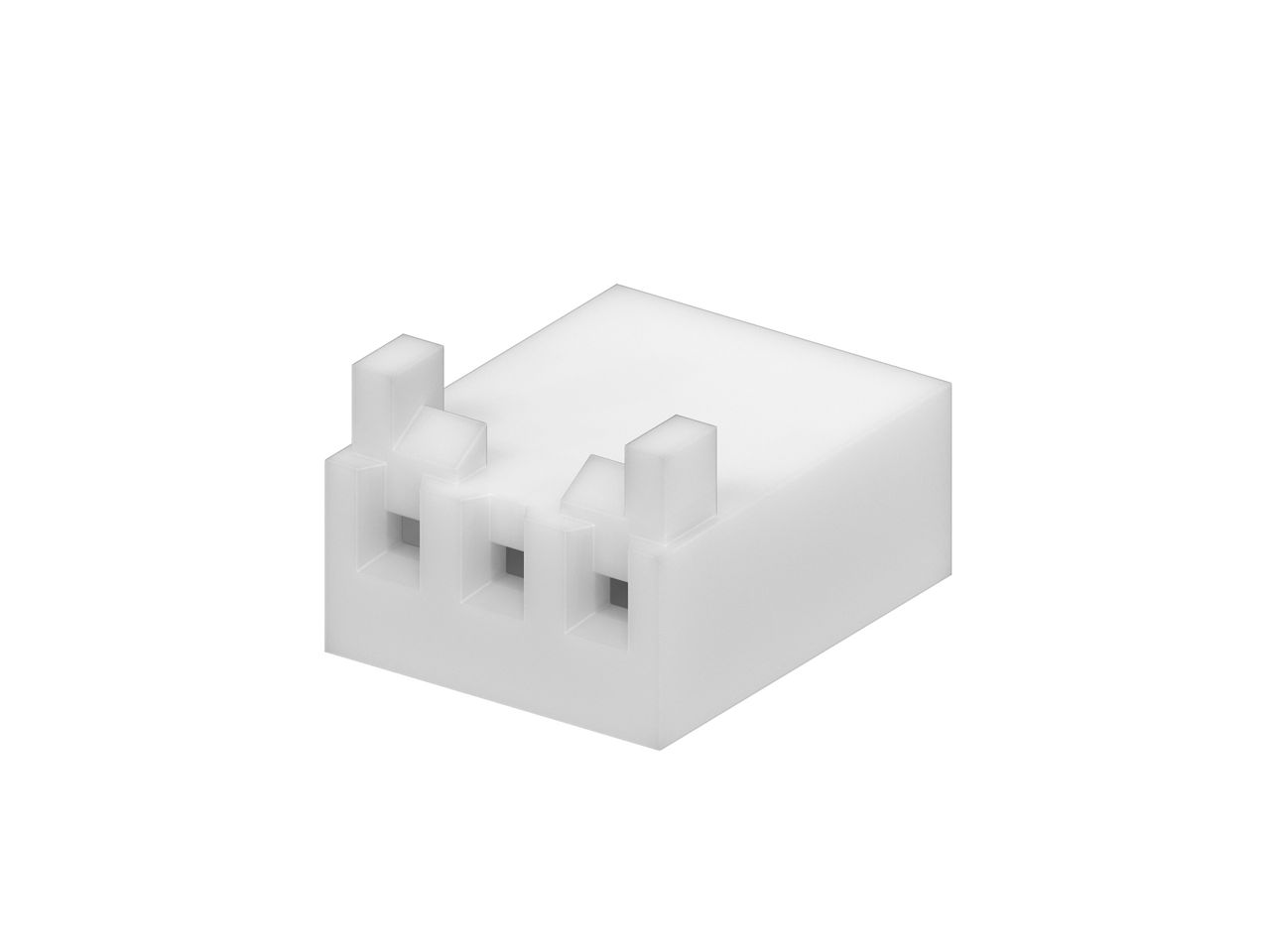

 | Molex 09-50-8033 | KK 3.96mm Crimp Terminal Housing, Friction Ramp, 3 Circuits, Natural |  |

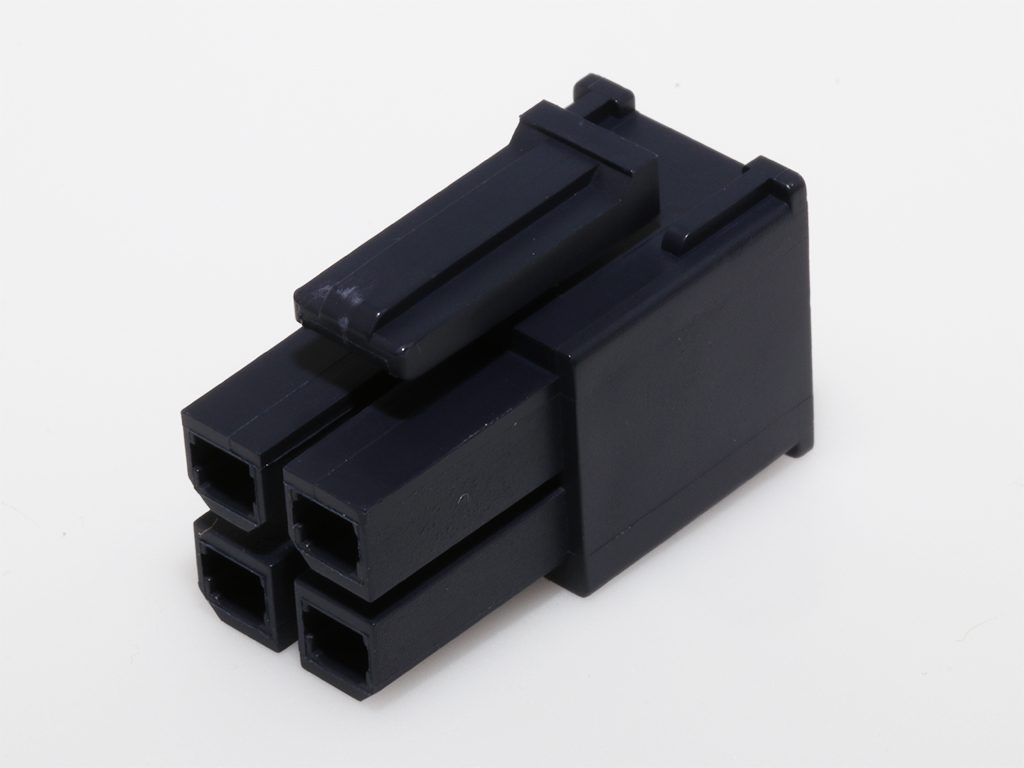

 | Molex 170001-0104 | Mega-Fit Receptacle Housing, Dual Row, 4 Circuit, Glow-Wire Capable, Bag | |

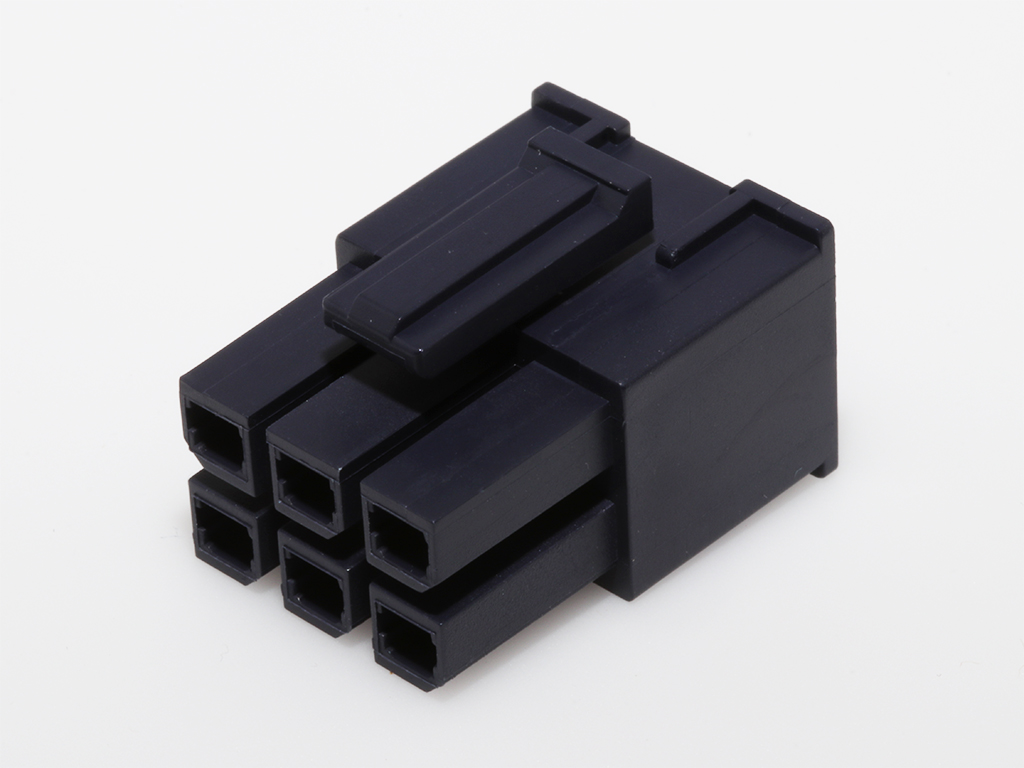

 | Molex 170001-0106 | Mega-Fit Receptacle Housing, Dual Row, 6 Circuit, Glow-Wire Capable, Bag | |

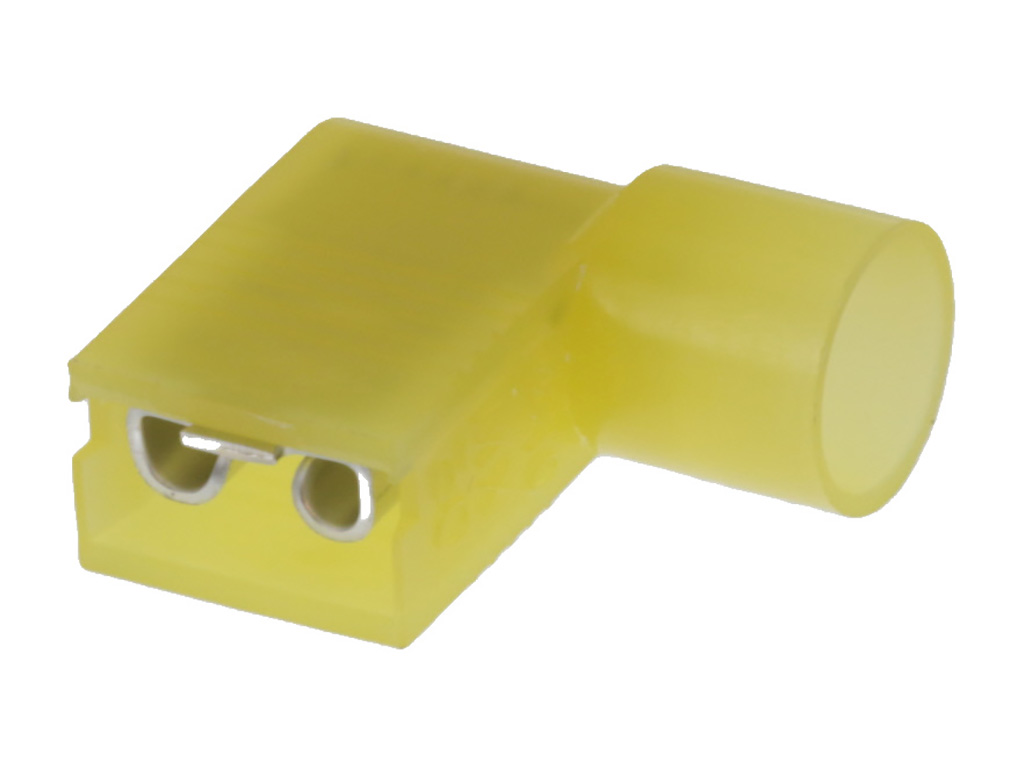

 | Molex 19007-0041 | Flag InsulKrimp Quick Disconnect, Female, for 10-12 (5.00-3.30mm?) Wire, Metal Strip, Tab 6.35 x 0.81mm | |
