| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 26-60-4110 |
| Color: | Natural |
| Series: | 41791 - KK 396 |
| Amperage: | 7 A |
| Connector Type: | KK 396 |
| Number of Contacts: | 11 |
| Number of Rows: | 1 |
| Termination Method: | Through Hole |
| Contact Material: | Brass |
| Body Orientation: | Straight |
| Pitch: | 3.96 mm |
| Voltage: | 250 V |
| Material: | Polyester |
| Orientation: | Vertical |
| Tail Length: | 3.56 mm |
| Contact Mating Area Plating: | Tin |
| Contact Mating Area Plating Thickness: | 5.08 µm |
| Number of Contacts Loaded: | 11 |
| Mating Cycles: | 25 |
| PCB Locator: | No |
| PCB Retention: | Without |
| Polarized to PCB: | No |
| Contact Termination Plating Thickness: | 5.08 µm |
| Polarized to Mate: | Yes |
| PCB Thickness (Recommended): | 1.6 mm |
| Connector System: | Wire to Board |
| Contact Termination Plating: | Tin |
| Maximum Solder Process Temperature: | 235 °C |
| Lead Free Process Capability: | WAVE |
| Duration at Max. Process Temperature (seconds): | 005 |
| Max. Cycles at Max. Process Temperature: | 001 |
| Glow Wire Capable: | No |
| Lock to Mating Part: | Yes |
| Stackable: | Yes |
| Breakaway: | No |
| Shroud Type: | Partial |
| Material Flammability Standard: | 94V-0 |
| Part Aliases: | 0026604110 41791-0011 |
| SKU: | MOL26-60-4110 |
26-60-4110
| Heilind Number: | MOL26-60-4110 |
| Manufacturer: | Molex |
| Manufacturer Number: | 26-60-4110 |
| Datasheet: | RoHS Certificate of Compliance |
| ECAD Model: | |
Specifications
Detailed Description
Introducing the Molex KK 396 Header, a vertical friction lock connector designed for reliable power and signal transmission in electronic systems. With 11 circuits and tin (Sn) plating, this connector ensures efficient connectivity while minimizing signal loss. Constructed from durable polyester with brass contacts, it offers a current rating of 7 A and a voltage of 250 V, making it suitable for a wide range of applications. Featuring a straight body orientation and through-hole termination, it is easy to install on PCBs. With a mating cycle of 25 and RoHS compliance, this connector guarantees long-lasting performance and environmental responsibility. Whether for industrial machinery or consumer electronics, the KK 396 Header is the perfect choice for your connectivity needs.
Frequently Bought Together
| Product | Part # | Description | Stock |
|---|---|---|---|

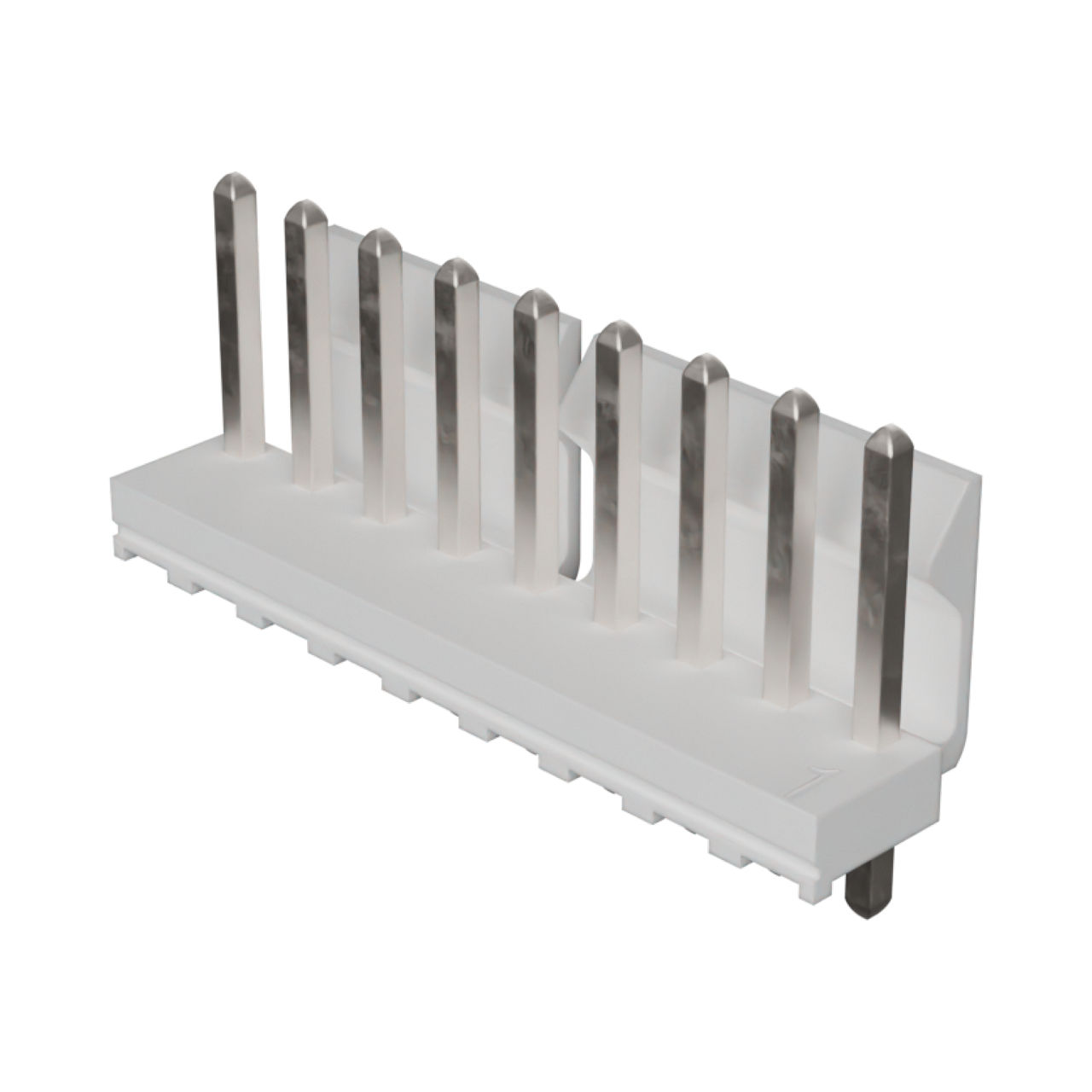

 | Molex 26-60-4090 | KK 396 Header, Vertical, Friction Lock, 9 Circuits, Tin (Sn) Plating |  |
