| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 26-60-4100 |
| Color: | Natural |
| Series: | 41791 - KK 396 |
| Amperage: | 7 A |
| Connector Type: | KK 396 |
| Number of Contacts: | 10 |
| Number of Rows: | 1 |
| Termination Method: | Through Hole |
| Contact Material: | Brass |
| Body Orientation: | Straight |
| Pitch: | 3.96 mm |
| Voltage: | 250 V |
| Material: | Polyester |
| Orientation: | Vertical |
| Tail Length: | 3.56 mm |
| Contact Mating Area Plating: | Tin |
| Number of Contacts Loaded: | 10 |
| Mating Cycles: | 25 |
| PCB Locator: | No |
| PCB Retention: | Without |
| Polarized to PCB: | No |
| Polarized to Mate: | Yes |
| PCB Thickness (Recommended): | 1.6 mm |
| Connector System: | Wire to Board |
| Maximum Solder Process Temperature: | 235 °C |
| Lead Free Process Capability: | WAVE |
| Duration at Max. Process Temperature (seconds): | 005 |
| Max. Cycles at Max. Process Temperature: | 001 |
| Glow Wire Capable: | No |
| Lock to Mating Part: | Yes |
| Stackable: | Yes |
| Breakaway: | No |
| Shroud Type: | Partial |
| Material Flammability Standard: | 94V-0 |
| Part Aliases: | 0026604100 41791-0010 |
| SKU: | MOL26-60-4100 |
26-60-4100
| Heilind Number: | MOL26-60-4100 |
| Manufacturer: | Molex |
| Manufacturer Number: | 26-60-4100 |
| Datasheet: | RoHS Certificate of Compliance |
| ECAD Model: | |
Specifications
Detailed Description

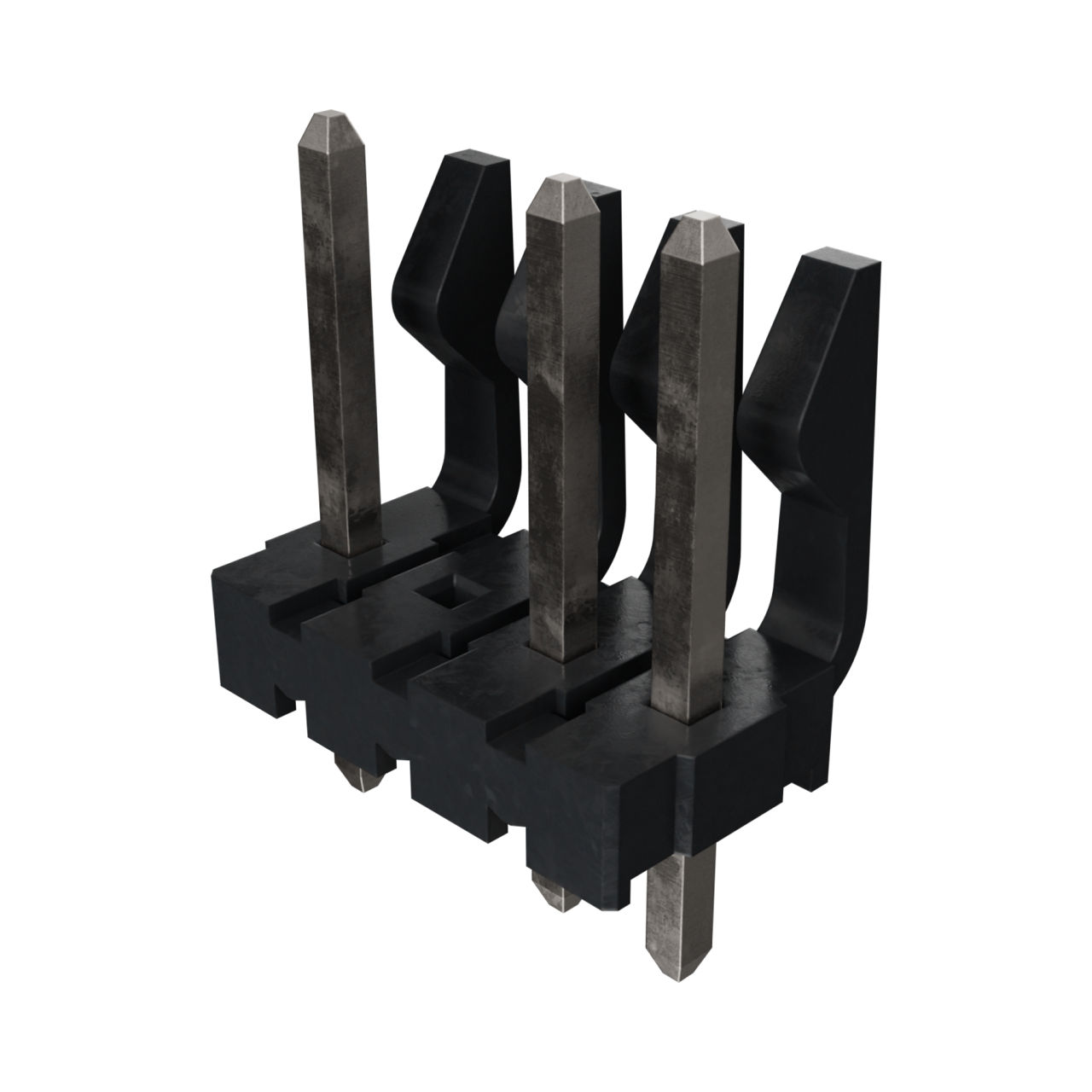

The 26-60-4100 is a KK 396 Header designed for vertical PCB mounting, featuring a friction lock for secure connections. With 10 circuits and tin (Sn) plating, it ensures reliable conductivity. Constructed of natural-colored polyester with brass contacts, this connector offers a straight body orientation and a pitch of 3.96 mm. Rated for 7 A and 250 V, it is suitable for various applications. Its vertical orientation and polarized mating design enhance ease of use, while its through-hole termination method and 1.6 mm PCB thickness compatibility ensure straightforward installation. RoHS compliant and lead-free process capable, it meets high industry standards for environmental responsibility. The KK 396 Header is part of the 41791 series, with a mating cycle durability of 25 and stackable, shrouded, and lockable features for added versatility and security.
