| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 19160-0009 |
| Color: | Natural |
| Series: | 19160 - Closed-End Insulated |
| Connector Type: | Closed-End Insulated |
| Contact Material: | Copper |
| Contact Plating: | Tin |
| Voltage: | 600 V |
| Insulation Material: | Nylon (PA) |
| Maximum Voltage: | 600 V |
| Operating Temperature Range: | 105 °C |
| Contact Mating Area Plating: | Tin |
| Wire Size: | 12 AWG, 14 AWG, 16 AWG, 18 AWG, 20 AWG, 22 AWG |
| Contact Termination Plating: | Tin |
| Wire Insulation Diameter: | 6.86 mm |
| Barrel Type: | Closed |
| Material Flammability Standard: | 94V-2 |
| Part Aliases: | 0191600009 NC-2212 |
| SKU: | MOL19160-0009 |
19160-0009
| Heilind Number: | MOL19160-0009 |
| Manufacturer: | Molex |
| Manufacturer Number: | 19160-0009 |
| Datasheet: | Packaging Specifications |
| ECAD Model: | |
Specifications
Detailed Description

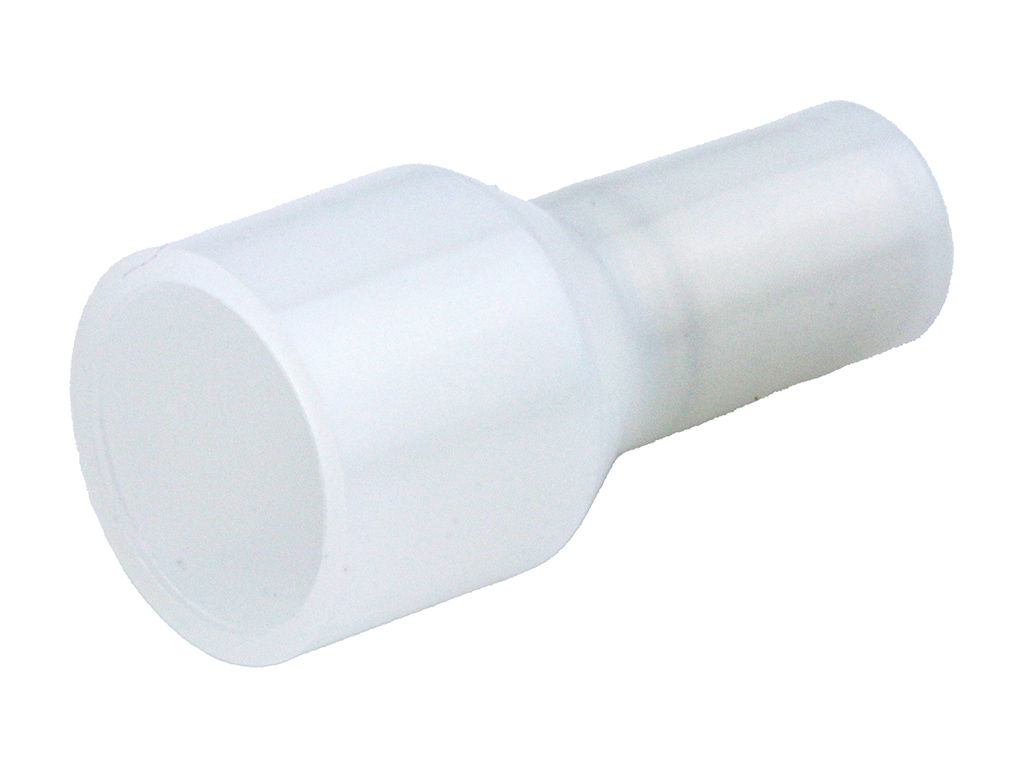

The 19160-0009 is a high-quality Closed-End Insulated Splice designed for 12-22 AWG wires. Featuring a durable copper contact with tin plating, this splice ensures reliable conductivity and corrosion resistance. With a maximum voltage rating of 600 V, it is suitable for a wide range of electrical applications. The nylon (PA) insulation and closed barrel design provide excellent protection against environmental factors and mechanical stress, while the tin-plated contact termination offers easy and secure installation. RoHS compliant and rated for operating temperatures up to 105 °C, this splice guarantees safety and performance in various settings. Trust in the 19160-0009 for efficient and durable wire connections.
Frequently Bought Together
| Product | Part # | Description | Stock |
|---|---|---|---|

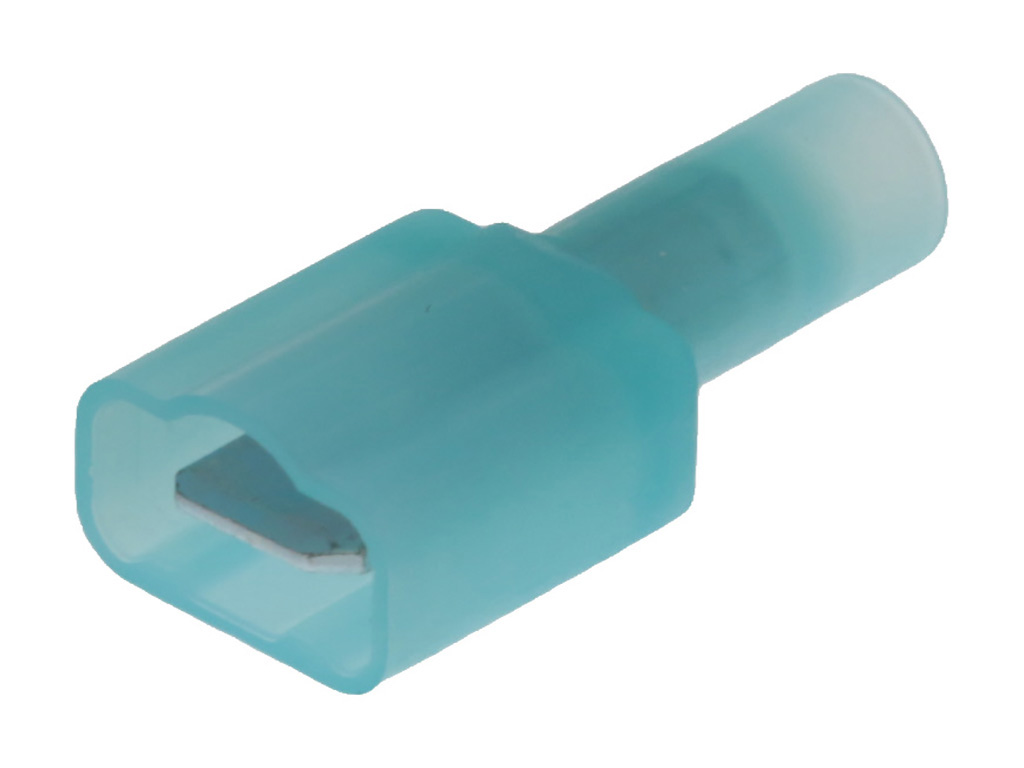

 | Molex 19004-0005 | InsulKrimp Fully Insulated Coupler, Male, for 14-16 AWG Wire, Box |  |
 | Molex 19005-0005 | InsulKrimp Fully Insulated Coupler, Female, for 14-16 AWG Wire, Box | |
 | Molex 19007-0021 | Flag InsulKrimp Quick Disconnect, Female, for 14-16 (2.00-1.30mm?) Wire, Box, Tab 6.35 x 0.81mm | |

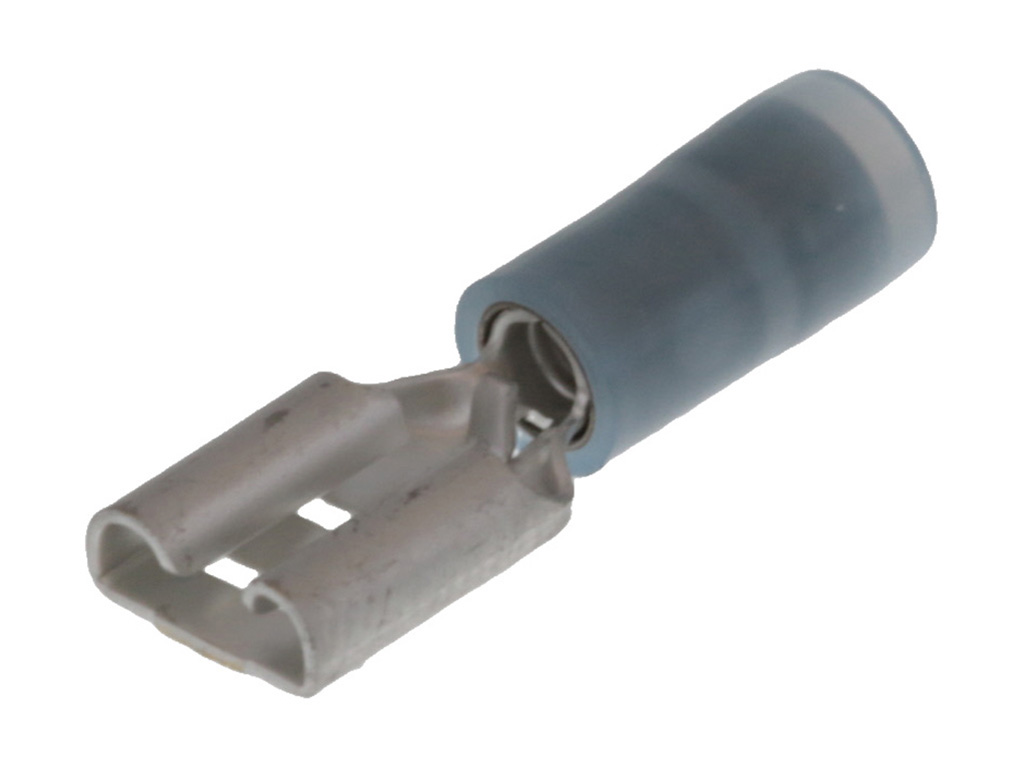

 | Molex 19019-0031 | Avikrimp Quick Disconnect, Female, for 14-16 (2.00-1.30mm?) Wire, Box, Tab 6.35 x 0.81mm | |
 | Molex 19071-0136 | InsulKrimp Ring Tongue Terminal for 8 AWG Wire | |
 | Molex 19160-0002 | Closed-End Insulated Splice for 10-16 AWG Wire | |
 | Molex 19160-0012 | Closed-End Insulated Splice for 14-22 AWG Wire, Clear | |
 | Molex 19160-0024 | Closed-End Insulated Splice for 8 AWG Wire | |
 | Molex 19193-0167 | VersaKrimp Ring Tongue Terminal for 8 AWG Wire | |
 | Molex 19193-0219 | VersaKrimp Ring Tongue Terminal for 6 AWG Wire | |

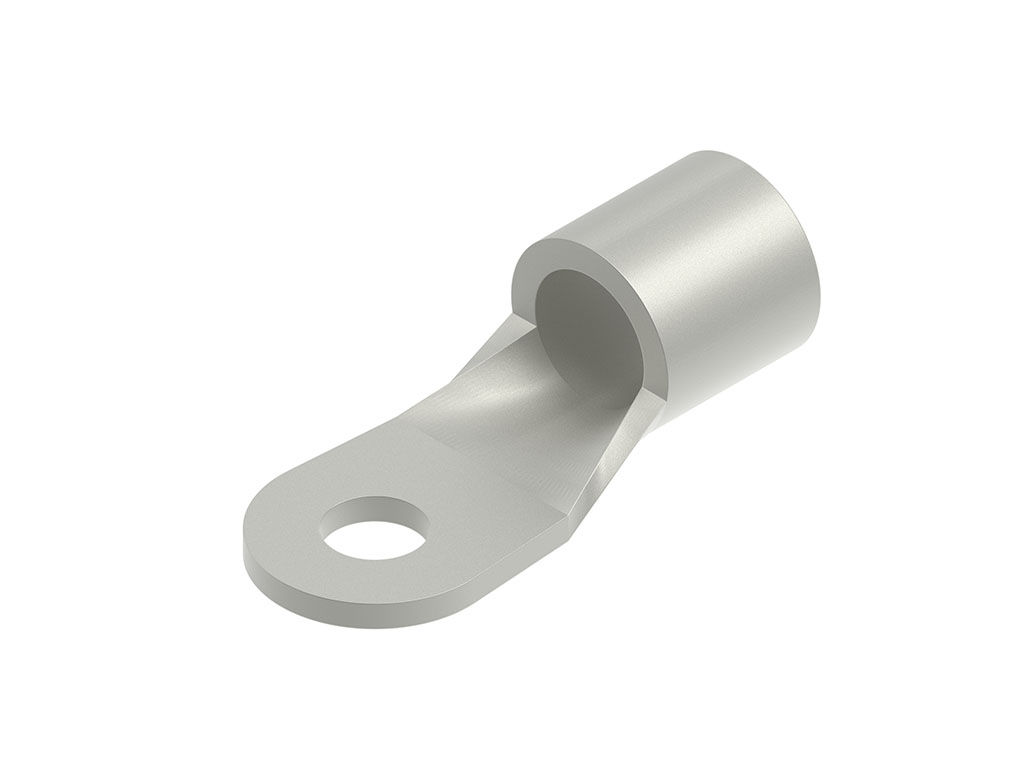

 | Molex 19193-0305 | VersaKrimp Ring Tongue Terminal, 2 AWG | |
