19203-0063

ICC Number:	MOL19203-0063
Manufacturer:	Molex
Manufacturer Number:	19203-0063
ECAD Model:

Description:

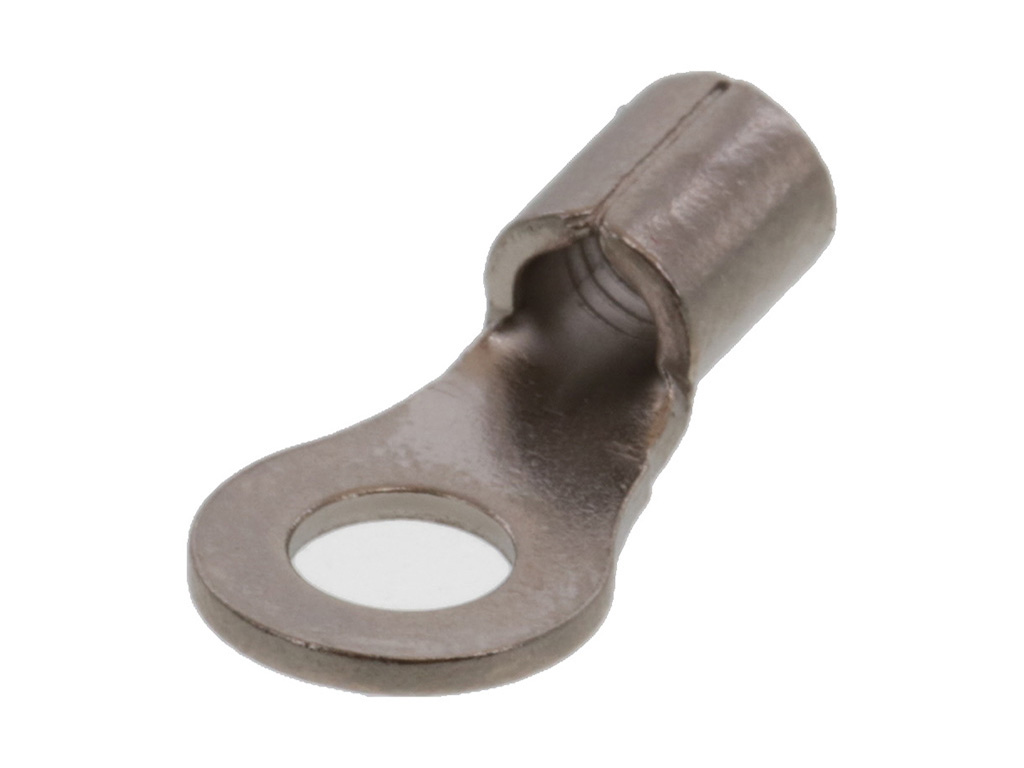

VersaKrimp Temp-Term Ring Tongue Terminal for 16-14 AWG Wire, Stud Size 10 (M5), Carton

More >>

Specifications

Attribute	Value
Product Category:	Wire Terminals & Splices Crimp Terminals
Manufacturer:	Molex
Manufacturer Part Number:	Molex 19203-0063
Contact Material:	Copper
Contact Plating:	Tin
Overall Length:	0.645 in
Stud Size:	#10
Terminal Type:	Ring
Thickness:	0.031 in
Wire Size:	16 to 14 AWG
Barrel Type:	Brazed Seam, Closed
Insulated:	No
Operating Temperature:	650 °F
SKU:	MOL19203-0063

Detailed Description

The 19203-0063 is a VersaKrimp Temp-Term Ring Tongue Terminal designed for secure and efficient connections in electrical applications. With compatibility for 14 to 16 AWG wires and a stud size of 10 (M5), this terminal ensures a reliable fit. Its tin contact plating offers excellent conductivity and corrosion resistance. The closed-brazed barrel type provides added durability. Suitable for a wide range of environments, this terminal is RoHS compliant, making it a safe and environmentally friendly choice for your projects. Trust in the quality and performance of the 19203-0063 for all your crimping needs.
