Attribute | Value |
---|---|
Product Category: | |
Manufacturer: | Molex |
Manufacturer Part Number: | Molex 19003-0056 |
Color: | Blue |
Series: | 19003 - InsulKrimp |
Connector Type: | InsulKrimp, Quick Disconnect |
Gender: | Female |
Termination Method: | Crimp or Compression |
Contact Material: | Brass |
Contact Plating: | Tin |
Voltage: | 600 V |
Material: | Brass, Nylon |
Insulation Material: | Nylon (PA) |
Compatible Tab Width: | 4.75mm |
Compatible Tab Thickness: | 0.81mm |
Orientation: | Straight |
Insulation Type: | Full |
Operating Temperature Range: | -65 - 105 °C |
Contact Mating Area Plating: | Tin |
Contact Mating Area Plating Thickness: | 4.064 µm |
Contact Termination Plating Thickness: | 4.064 µm |
Polarized to Mate: | No |
Wire Size: | 14 AWG, 16 AWG, 1.3 - 2 mm² |
Contact Termination Plating: | Tin |
Wire Insulation Diameter: | 4.06 mm |
Glow Wire Capable: | Yes |
Lock to Mating Part: | No |
Material Flammability Standard: | 94V-2 |
Part Aliases: | 0190030056 BB-2208 |
SKU: | MOL19003-0056 |
19003-0056
Specifications
Detailed Description

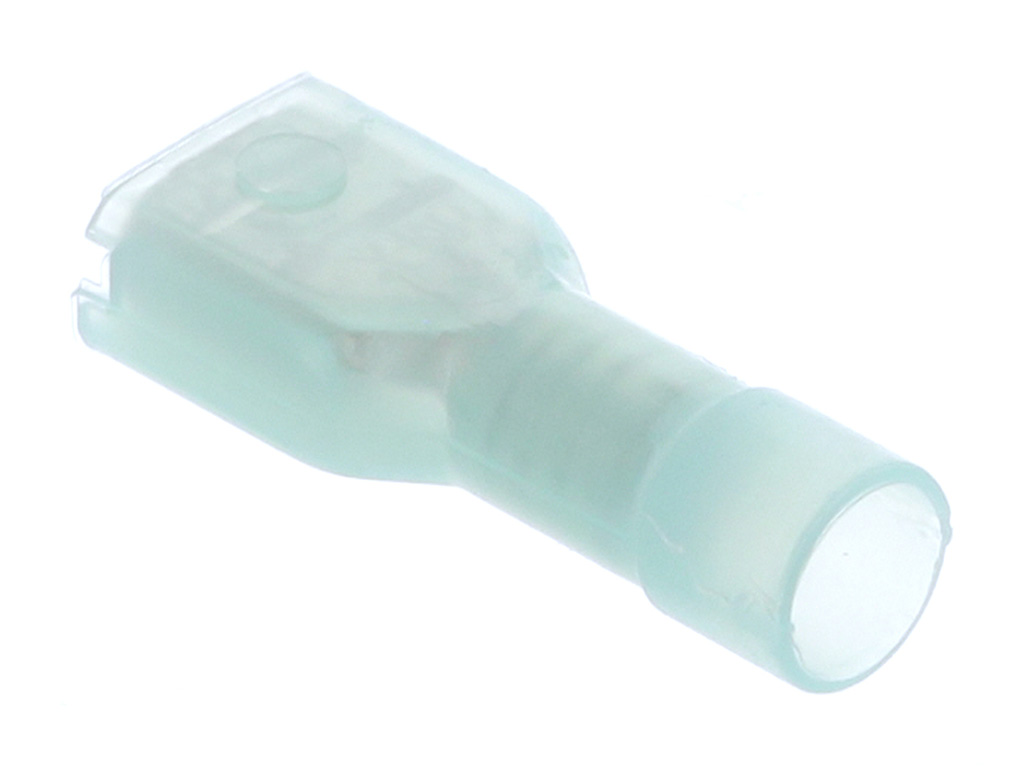

The 19003-0056 is a versatile InsulKrimp Quick Disconnect terminal designed for efficient and reliable wire termination. Featuring a female connector type, it is suitable for 14-16 AWG wires or 1.3-2 mm² cross-sections. The brass contacts with tin plating ensure excellent conductivity and corrosion resistance, rated for up to 600 V. Its nylon insulation with a flammability standard offers added safety, while the straight orientation and full insulation type provide easy and secure installation. Certified by CSA and UL for quality assurance, this blue-colored terminal is RoHS compliant, making it ideal for various applications in the automotive, industrial, and electronics industries. (Character count: 105)
Frequently Bought Together
Product | Part # | Description | Stock |
---|---|---|---|
![]() | Molex 08-70-1030 | SPOX Crimp Terminal 5194, 18-24 AWG, Brass, Bag | ![]() |
![]() | Molex 09-50-3141 | KK 3.96mm Crimp Terminal Housing, Friction Ramp, 14 Circuits | ![]() |

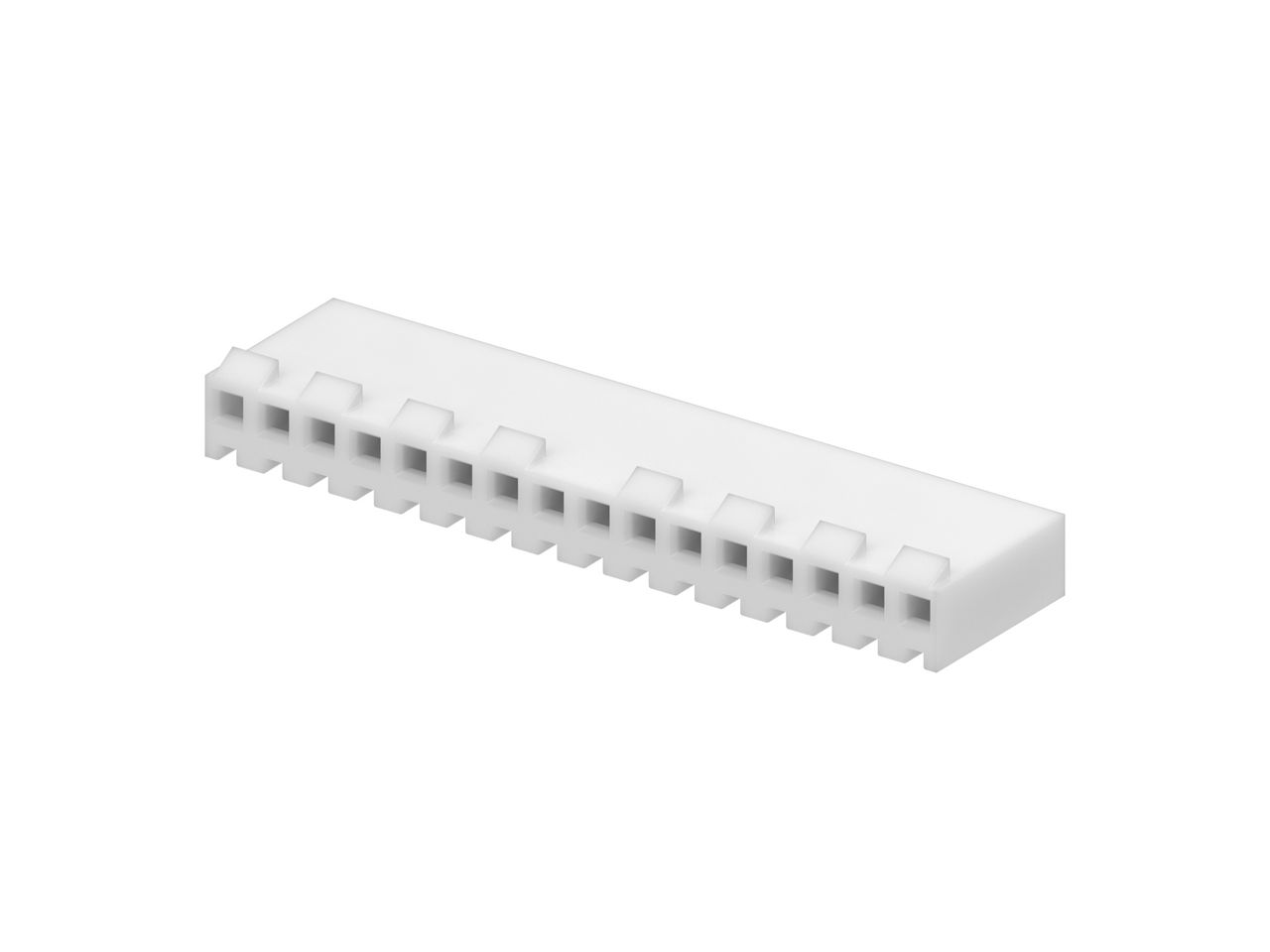

![]() | Molex 09-50-3161 | KK 3.96mm Crimp Terminal Housing, Friction Ramp, 16 Circuits, Natural | ![]() |
