| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 19193-0158 |
| Series: | 19193 - VersaKrimp |
| Connector Type: | VersaKrimp |
| Termination Method: | Crimp or Compression |
| Contact Plating: | Tin |
| Stud Size: | 5/16" (M8) |
| Insulation Material: | None |
| Packaging: | Adhesive Tape on Reel |
| Contact Mating Area Plating: | Tin |
| Wire Size: | 6.6 - 10.5 mm², 8 AWG |
| CSA Agency Certification: | LR18689 |
| UL Agency Certification: | E32244 |
| Barrel Type: | Closed - Brazed |
| Part Aliases: | 0191930158 D-350-56T |
| SKU: | MOL19193-0158 |
19193-0158
| Heilind Number: | MOL19193-0158 |
| Manufacturer: | Molex |
| Manufacturer Number: | 19193-0158 |
| Datasheet: | RoHS Certificate of Compliance |
| ECAD Model: | |
Description:

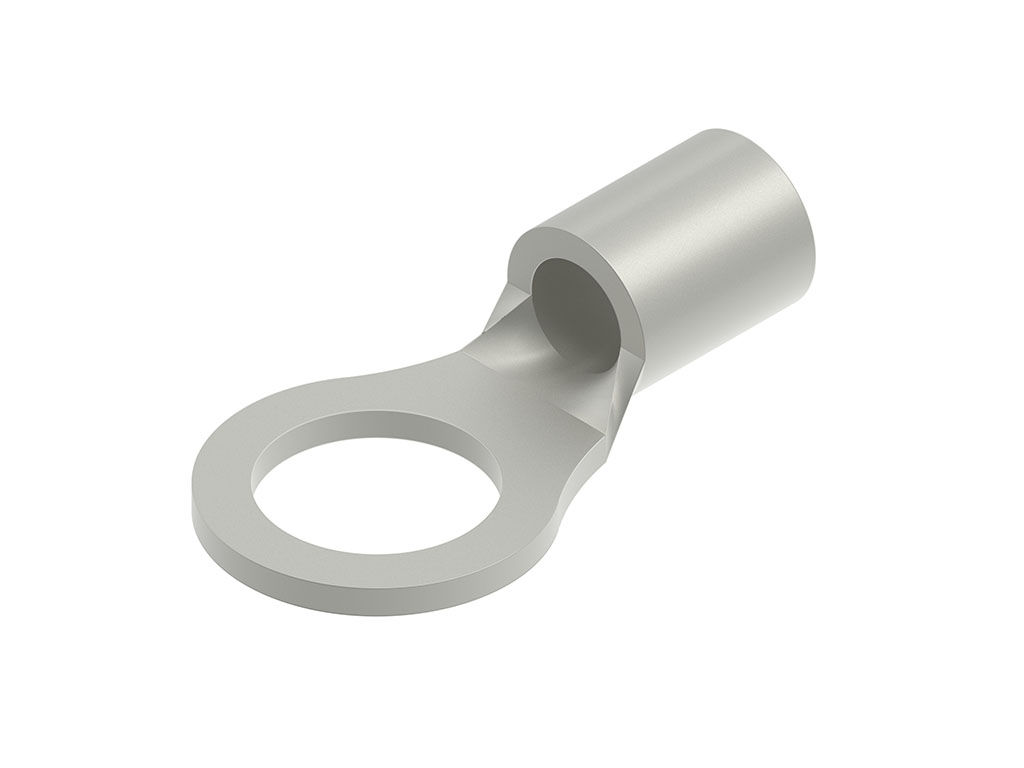

VersaKrimp Ring Tongue Terminal for 8 AWG Wire, Stud Size 5/16 (M8), Mylar Tape Carrier
More >>Specifications
Detailed Description
The 19193-0158 is a high-quality VersaKrimp Ring Tongue Terminal designed for secure and reliable connections in electrical applications. With a stud size of 5/16 (M8) and suitable for 8 AWG wire, this terminal features a Mylar Tape Carrier for easy installation. Its tin contact plating ensures excellent conductivity, while the closed-brazed barrel type guarantees durability. Certified by LR18689 and E32244 for CSA and UL compliance, this terminal is suitable for a wide range of industrial and commercial uses. With RoHS compliance and a convenient adhesive tape on reel packaging, the 19193-0158 is a convenient and environmentally friendly choice for your crimping and compression needs.
Frequently Bought Together
| Product | Part # | Description | Stock |
|---|---|---|---|
 | Molex 19069-0208 | Krimptite Ring Tongue Terminal for 10-12 AWG Wire, Stud Size 8 (M4), Length 19.94mm, Mylar Tape Carrier |  |
 | Molex 19073-0086 | Avikrimp Ring Tongue Terminal for 14 to 16 AWG Wire, Stud Size 8 (M4), Length 22.48mm, Mylar Tape Carrier | |
 | Molex 19164-0045 | Perma-Seal Butt Splice for 14-16 AWG Wire, Mylar Tape Carrier | |
 | Molex 33012-3001 | MX150 Female Terminal Sealed, Tin Plating, 14 and 16 AWG, Left Reel Payoff | |
 | Molex 43025-2400 | Micro-Fit 3.0 Receptacle Housing, Dual Row, 24 Circuits, UL 94V-0, Black | |
Product Change Notice
| Effective Date | Description of Change | Download | |||
|---|---|---|---|---|---|
| 02/18/2019 | 506408 - Packaging Method/Quantity Changing. This letter is to inform you that the part(s) referenced in this notice will undergo packaging specification changes that may include new container sizes, quantities or changes to the label. No changes will be made to the product as a result of this change. | Download | |||
Availability
Immediate Shipment:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
Additional Resources
| Attribute | Value |
|---|---|
| Molex: | 19193-0158 |
| Other Names: | 0191930158 D-350-56T |
