| Attribute | Value |
|---|---|
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 19193-0146 |
| Contact Material: | Copper |
| Contact Plating: | Tin |
| Overall Length: | 0.977 in |
| Stud Size: | #8 |
| Terminal Type: | Ring |
| Wire Size: | 8 AWG |
| Barrel Type: | Brazed Seam, Closed |
| Insulated: | No |
| SKU: | MOL19193-0146 |
19193-0146
| ICC Number: | MOL19193-0146 |
| Manufacturer: | Molex |
| Manufacturer Number: | 19193-0146 |
| ECAD Model: | |
Description:

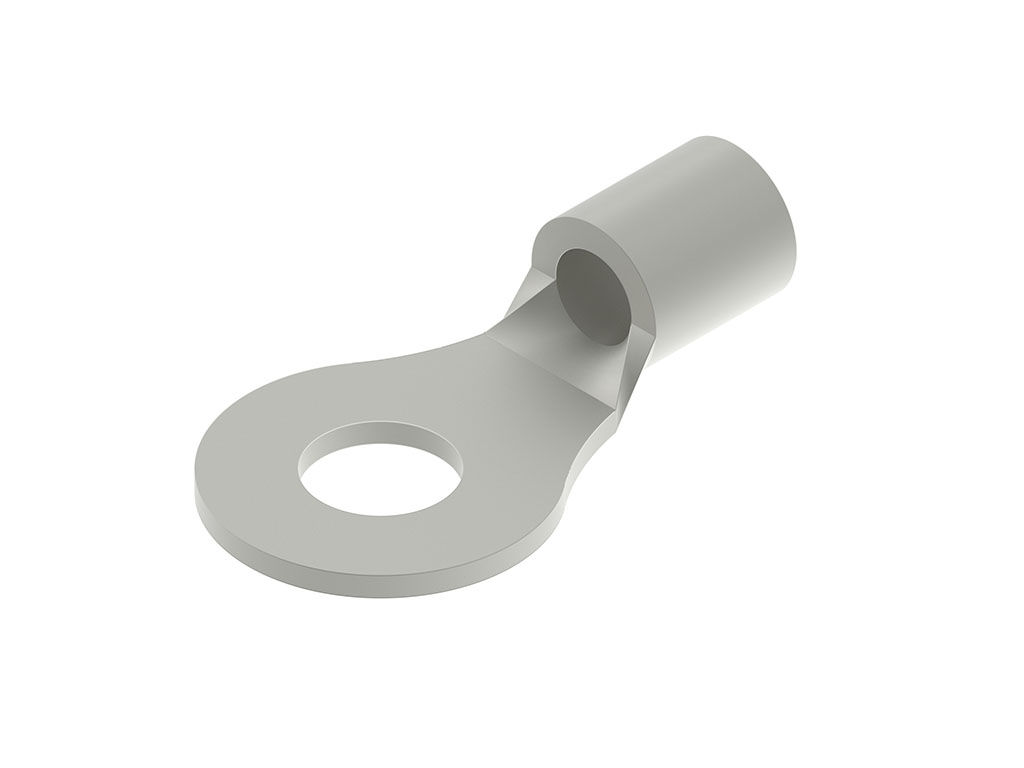

VersaKrimp Ring Tongue Terminal for 8 AWG Wire, Closed-Brazed Barrel, Stud Size 8 (M4), Carton
More >>Specifications
Detailed Description
The 19193-0146 is a high-quality VersaKrimp Ring Tongue Terminal designed for secure and reliable connections in industrial applications. With a stud size of 8 (M4) and suitable for 8 AWG wires, this terminal features a durable tin contact plating for enhanced conductivity. Its closed-brazed barrel construction ensures robust performance, while its CSA (LR18689) and UL (E32244) certifications guarantee safety and reliability. RoHS compliant and in stock for immediate shipping, the 19193-0146 is the perfect choice for your crimp or compression termination needs.
