19164-0311

ICC Number:	MOL19164-0311
Manufacturer:	Molex
Manufacturer Number:	19164-0311
Datasheet:	Datasheet
ECAD Model:

Description:

Perma-Seal Ring Tongue Terminal for 16-14 AWG Wire, Stud Size 8 (M4), Mylar Tape Carrier

More >>

Specifications

Attribute	Value
Manufacturer:	Molex
Manufacturer Part Number:	Molex 19164-0311
Contact Material:	Copper Alloy
Contact Plating:	Tin
Overall Length:	1.28 in
Stud Size:	#8
Insulation Material:	Nickel Acetate
Terminal Type:	Ring
Wire Size:	16 to 14 AWG
Barrel Type:	Closed
Insulation Color:	Blue
Insulated:	Yes
SKU:	MOL19164-0311

Detailed Description

The 19164-0311 is a Perma-Seal Ring Tongue Terminal designed for 14-16 AWG wires, featuring a Stud Size 8 (M4) and Mylar Tape Carrier for easy installation. Part of the 19164 Perma-Seal series, this connector is essential for secure and durable wire termination. With Tin contact plating and NiAc insulation material, it ensures reliable performance in various applications. The closed barrel type offers added protection, and with RoHS compliance, it meets environmental standards. Compatible with wire sizes ranging from 1.23 to 1.94 mm² and insulation diameters up to 5.97 mm, this terminal is a versatile solution for your connectivity needs. ( 19164-0311, acronym: 191640311)

Frequently Bought Together

Product	Part #	Description	Stock
	Molex 105300-2200	Nano-Fit Crimp Terminal, Female, 0.38µm Gold (Au) Plating, 22-20 AWG
	Molex 19164-0004	Perma-Seal Ring Tongue Terminal for 22-18 AWG Wire, Stud Size 1/4" (M6), Carton
	Molex 19164-0077	Perma-Seal Step Down Butt Splice from 12/10 to 16/14 AWG Wire, Carton
	Molex 19164-0307	Perma-Seal Ring Tongue Terminal for 16-14 AWG Wire, Stud Size 3/8" (M9), Mylar Tape Carrier
	Molex 19215-0023	VibraKrimp Step Down Butt Splice from 12/10 to 16/14 AWG Wire, Carton
	Molex 19221-0233	Compression Style Ring Tongue Terminal for 2 AWG Wire, Stud Size 5/16" (M8), Tin Plated, Carton
	Molex 19221-0234	Compression Style Ring Tongue Terminal for 2/0 AWG Wire, Stud Size 1/4" (M6), Plated, Carton
	Molex 19221-0250	Compression Style Ring Tongue Terminal for 4/0 AWG Wire, Stud Size 3/8" (M9), Plated, Barrel Length 19.05mm, Carton

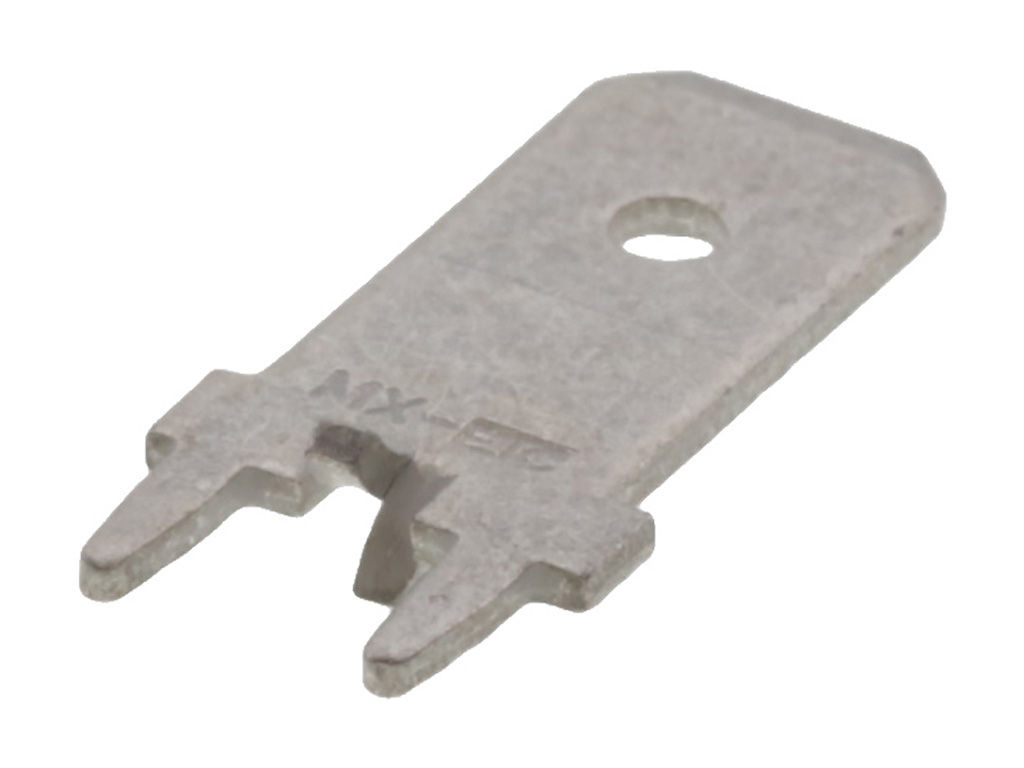

	Molex 19705-4001	PCB Tab Quick Disconnect, Male, for Wire, Box, Tab 6.35 x 0.81mm, Carton

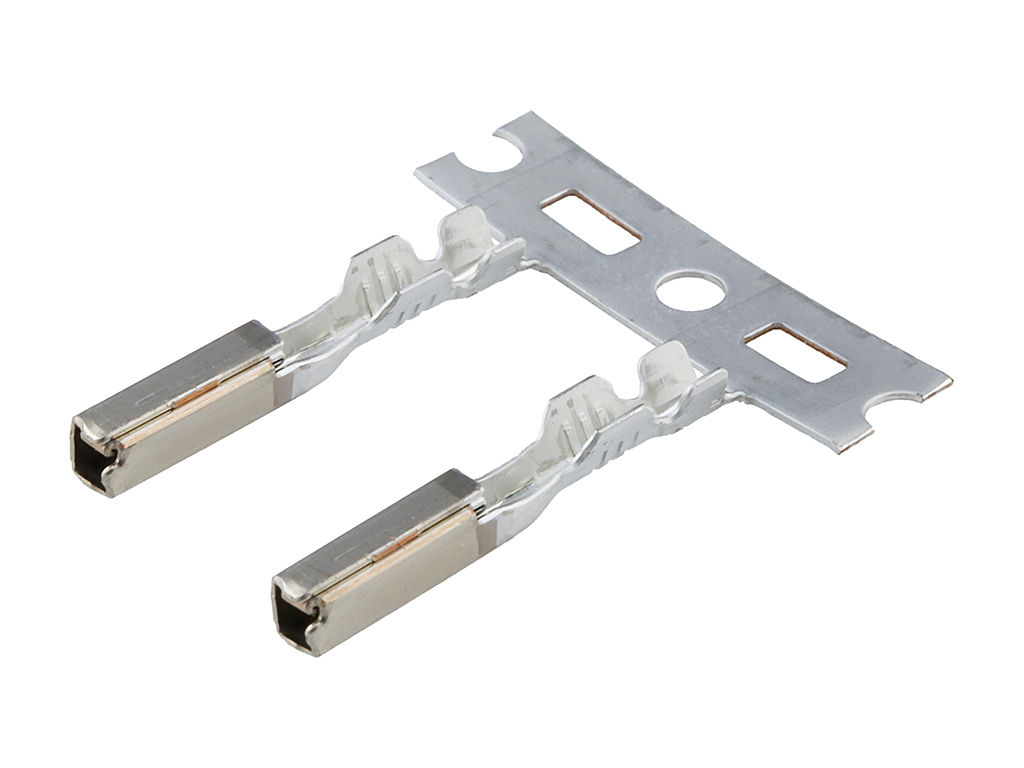

	Molex 33467-0006	2.54mm Pitch MX64 Terminal, Gold (Au) Plating, 20-18 AWG, Left Reel Payoff, Also used with MX123 Female Receptacle Housing
