| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 19164-0307 |
| Series: | 19164 - Perma-Seal |
| Connector Type: | Perma-Seal |
| Contact Plating: | Tin |
| Stud Size: | 3/8" (M9) |
| Insulation Material: | NiAc |
| Contact Mating Area Plating: | Tin |
| Wire Size: | 14 AWG, 16 AWG, 1.23 - 1.94 mm² |
| Wire Insulation Diameter: | 5.97 mm |
| Barrel Type: | Closed |
| Part Aliases: | 0191640307 SB-218-38T |
| SKU: | MOL19164-0307 |
19164-0307
Specifications
Detailed Description

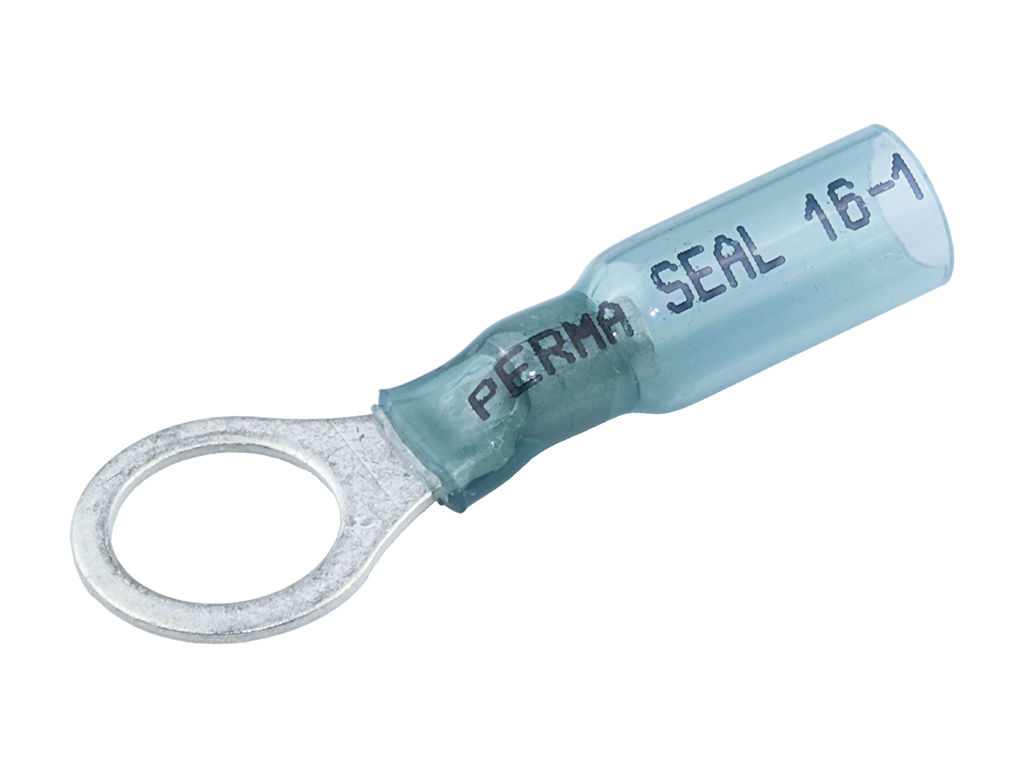

The Perma-Seal Ring Tongue Terminal 19164-0307 is a reliable and durable solution for secure wire connections. Designed for use with 14-16 AWG wires and a 3/8" (M9) stud, this terminal features tin contact plating for excellent conductivity. Its NiAc insulation and Mylar Tape Carrier provide added protection, while its closed barrel design ensures a stable connection. With UL and CSA agency certifications, as well as RoHS compliance, this terminal guarantees safety and quality. Perfect for various applications, it is available for immediate shipping. Trust the 19164-0307 for efficient and dependable wire termination.
Frequently Bought Together
| Product | Part # | Description | Stock |
|---|---|---|---|

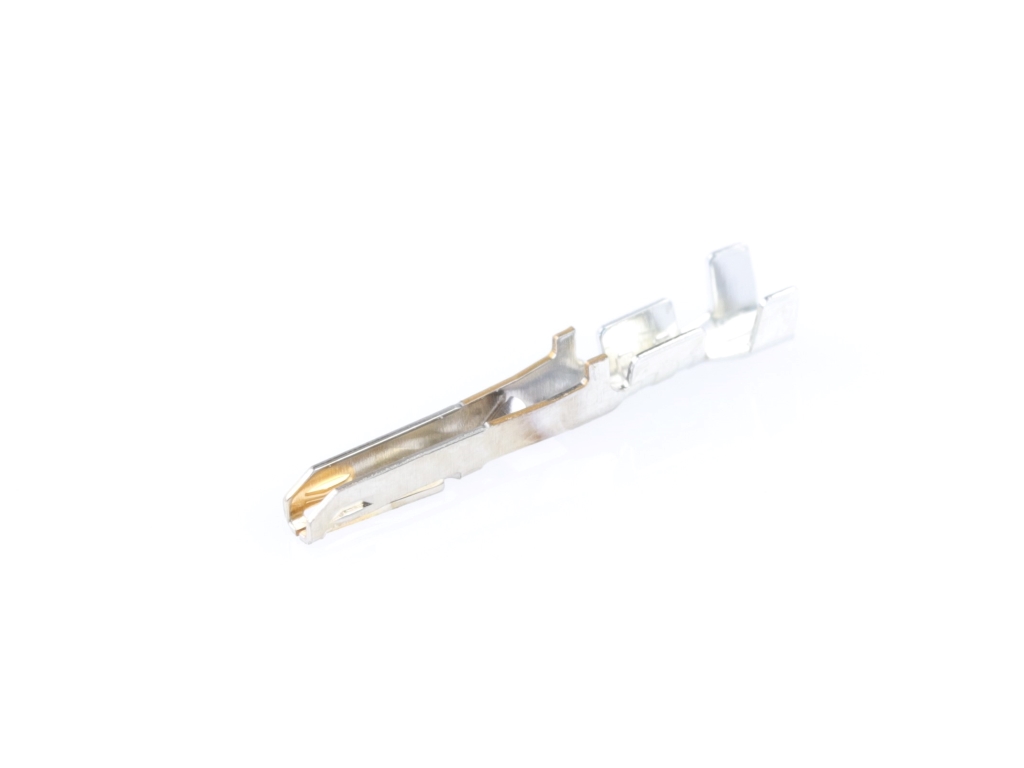

 | Molex 105300-2200 | Nano-Fit Crimp Terminal, Female, 0.38 |  |

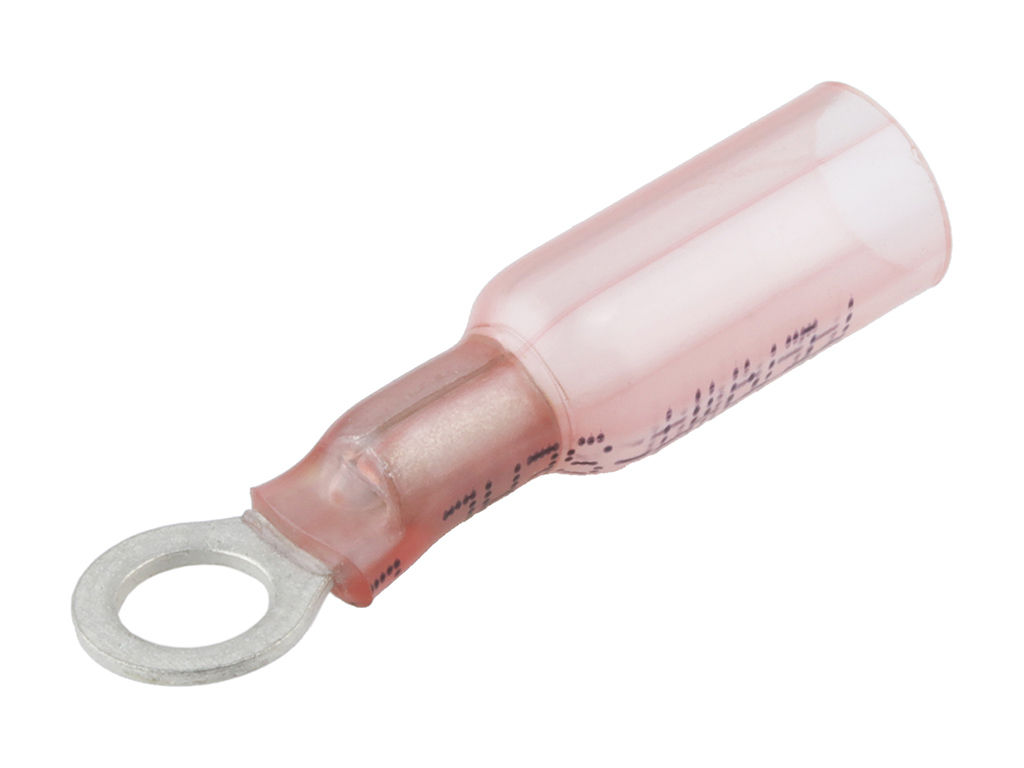

 | Molex 19164-0004 | Perma-Seal Ring Tongue Terminal for 18-22 AWG Wire, Stud Size 1/4 (M6) | |
 | Molex 19164-0311 | Perma-Seal Ring Tongue Terminal for 14-16 AWG Wire, Stud Size 8 (M4), Mylar Tape Carrier | |
 | Molex 19221-0233 | Compression Style Ring Tongue Terminal for 2 AWG Wire, Stud Size 5/16 (M8), Tin Plated | |
 | Molex 19221-0250 | Compression Style Ring Tongue Terminal for 4/0 AWG Wire, Stud Size 3/8 (M9), Plated, Barrel Length 19.05mm | |
 | Molex 34345-0001 | MX 150 Cavity Plug Sealed | |

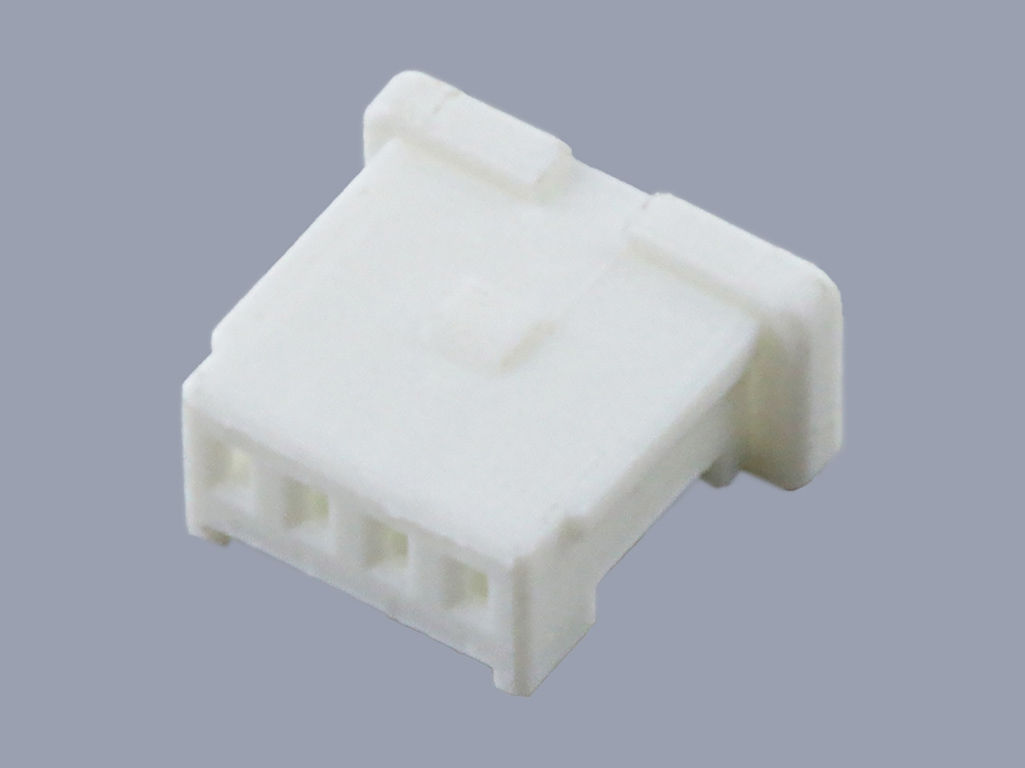

 | Molex 501330-0400 | 1.00mm Pitch Pico-Clasp Wire-to-Board Female Housing, Single Row, with Friction Lock, 4 Circuits | |
