| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 19164-0053 |
| Color: | Red |
| Series: | 19164 - Perma-Seal |
| Connector Type: | Perma-Seal, Snap Receptacle |
| Gender: | Female |
| Termination Method: | Crimp or Compression |
| Contact Material: | Brass |
| Contact Plating: | Tin |
| Voltage: | 600 V |
| Material: | Brass, Nylon |
| Insulation Material: | NiAc |
| Orientation: | Straight |
| Insulation Type: | Full |
| Packaging: | Bag |
| Operating Temperature Range: | -55 - 125 °C |
| Contact Mating Area Plating: | Tin |
| Contact Mating Area Plating Thickness: | 2.54 µm |
| Contact Termination Plating Thickness: | 2.540 µm |
| Wire Size: | 18 AWG, 20 AWG, 22 AWG |
| CSA Agency Certification: | LR18689 |
| UL Agency Certification: | E152602 |
| Contact Termination Plating: | Tin |
| Wire Insulation Diameter: | 3.3 mm |
| Glow Wire Capable: | No |
| Lock to Mating Part: | No |
| Part Aliases: | 0191640053 SBRA-8180N |
| SKU: | MOL19164-0053 |
19164-0053
| Heilind Number: | MOL19164-0053 |
| Manufacturer: | Molex |
| Manufacturer Number: | 19164-0053 |
| Datasheet: | Product Specification |
| ECAD Model: | |
Specifications
Detailed Description

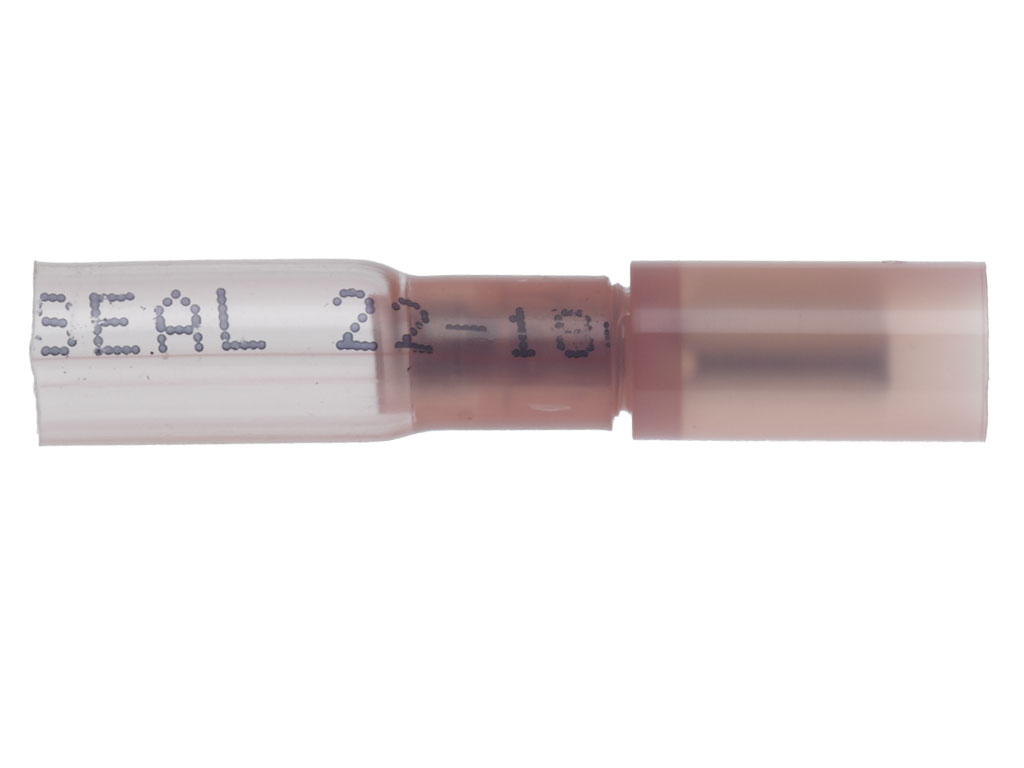

The Perma-Seal Snap Receptacle is a reliable and versatile connector designed for 18-22 AWG wires. With a diameter of 4.57mm and a vibrant red color for easy identification, this female receptacle offers secure and efficient crimp or compression termination. Constructed with durable brass contacts plated with tin, it ensures excellent conductivity and corrosion resistance, with a high voltage rating of 600 V. The nylon and NiAc insulation, along with a straight orientation and full insulation type, make it suitable for a wide range of applications. Certified by CSA and UL for quality and safety, this RoHS-compliant connector guarantees peace of mind. ( 19164-0053)
