| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 19164-0028 |
| Series: | 19164 - Perma-Seal |
| Connector Type: | Perma-Seal |
| Contact Plating: | Tin |
| Stud Size: | 6 (M3.5) |
| Insulation Material: | NiAc |
| Packaging: | Bag |
| Contact Mating Area Plating: | Tin |
| Contact Mating Area Plating Thickness: | 2.54 µm |
| Contact Termination Plating Thickness: | 2.540 µm |
| Wire Size: | 14 AWG, 16 AWG, 1.23 - 1.94 mm² |
| CSA Agency Certification: | LR18689 |
| UL Agency Certification: | E32244 |
| Wire Insulation Diameter: | 5.97 mm |
| Barrel Type: | Closed |
| Part Aliases: | 0191640028 SB-227-06 |
| SKU: | MOL19164-0028 |
19164-0028
Specifications
Detailed Description

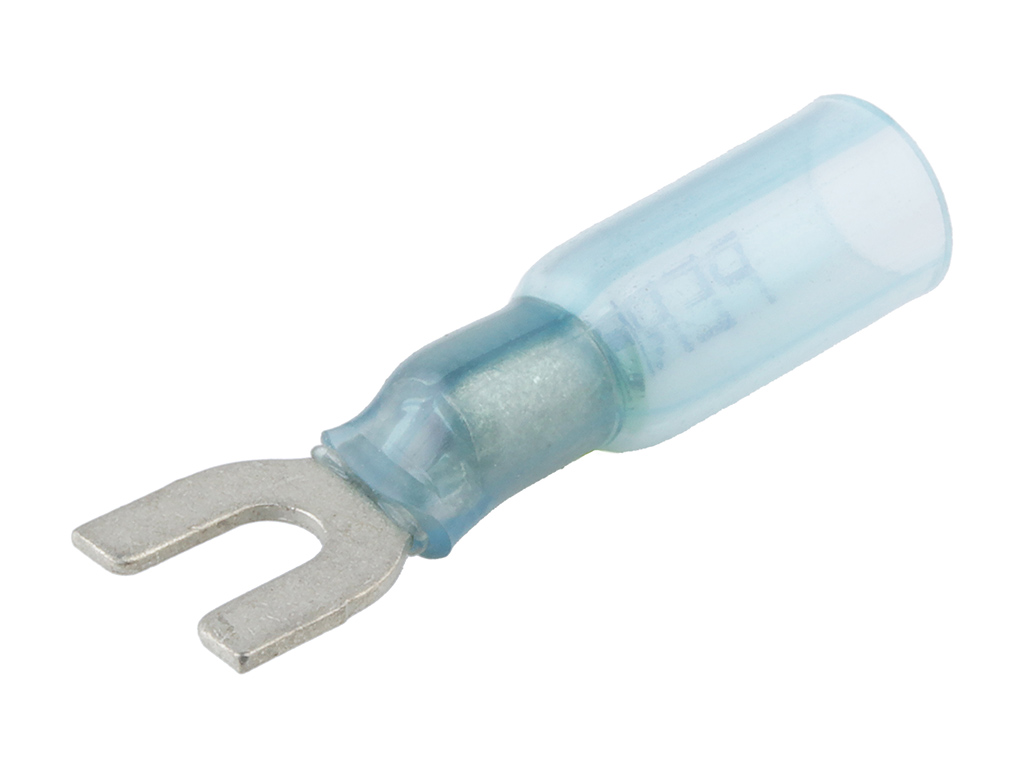

The Perma-Seal Spade Tongue Terminal 19164-0028 is a reliable and durable connector designed for 14-16 AWG wires with a stud size of 6 (M3.5). Featuring a tin contact plating and NiAc insulation material, this terminal ensures secure and stable connections. With UL and CSA agency certifications, it guarantees safety and quality standards compliance. The closed barrel design offers added protection, and with RoHS compliance, it is environmentally friendly. Perfect for various applications, this terminal is a must-have for any project in need of a high-performance and long-lasting connector.
Frequently Bought Together
| Product | Part # | Description | Stock |
|---|---|---|---|

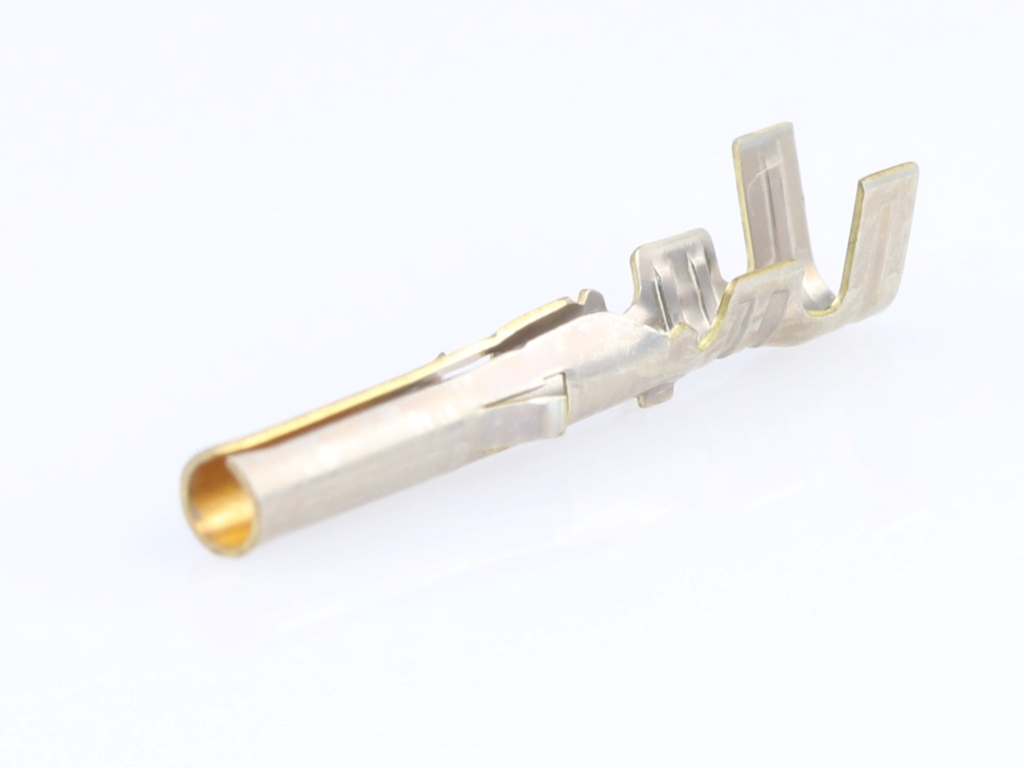

 | Molex 02-06-5100 | 1.57mm Diameter, Standard .062 Pin and Socket Crimp Terminal, Female, with 0.38 |  |
 | Molex 09-50-1061 | 3.96mm Pitch SPOX Crimp Housing, Female, with Friction Ramp, 6 Circuits, Natural | |
 | Molex 10-11-2083 | KK 254 Crimp Housing, High Pressure, 8 Circuits, Natural | |
 | Molex 19164-0033 | Perma-Seal Ring Tongue Terminal for 14-16 AWG Wire, Stud Size 8 (M4) | |

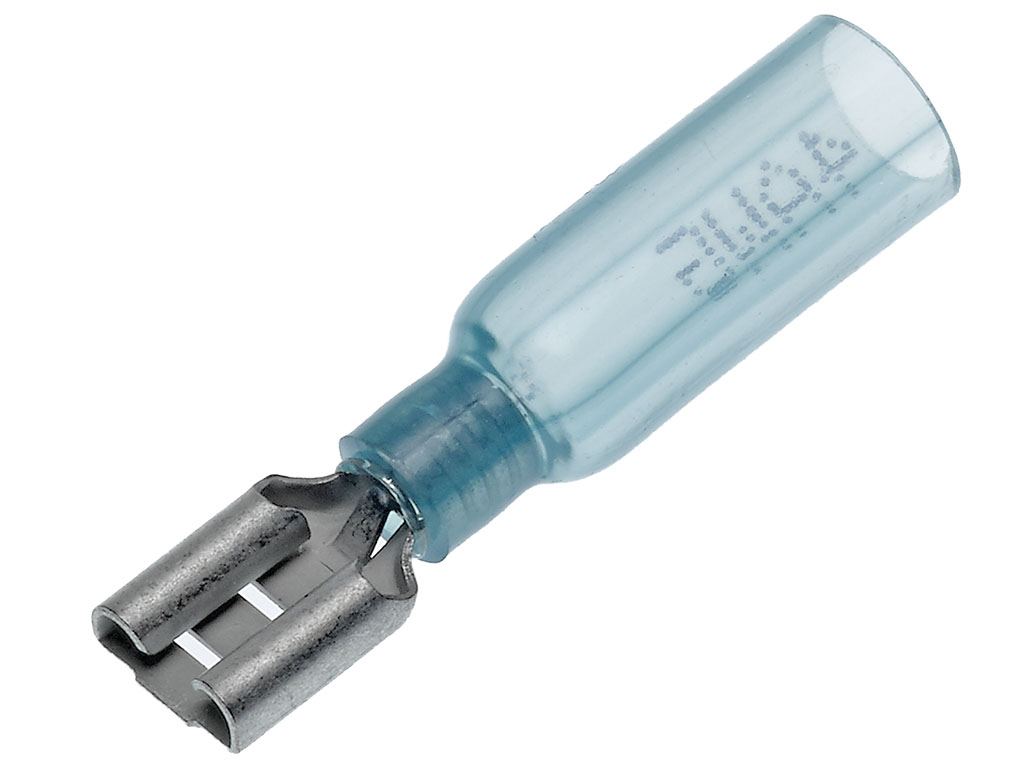

 | Molex 19164-0047 | Perma-Seal Female Quick Disconnect for 14-16 AWG Wire, Tab Size 6.35 x 0.81mm | |
 | Molex 19164-0066 | Perma-Seal Ring Tongue Terminal for 10-12 AWG Wire, Stud Size 1/4 (M6) | |

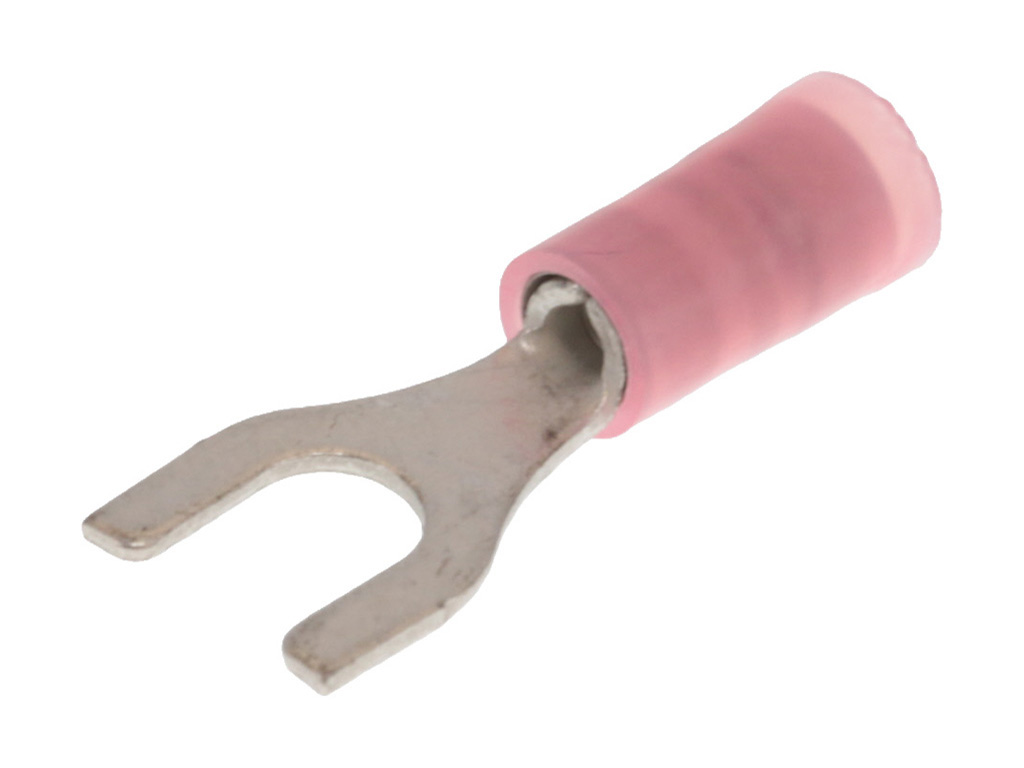

 | Molex 19198-0004 | Avikrimp Spade Tongue Terminal for 18-22 AWG Wire | |
 | Molex 22-01-3057 | KK 254 Crimp Housing, Friction Ramp with Polarizing Ribs, 5 Circuits, Natural | |

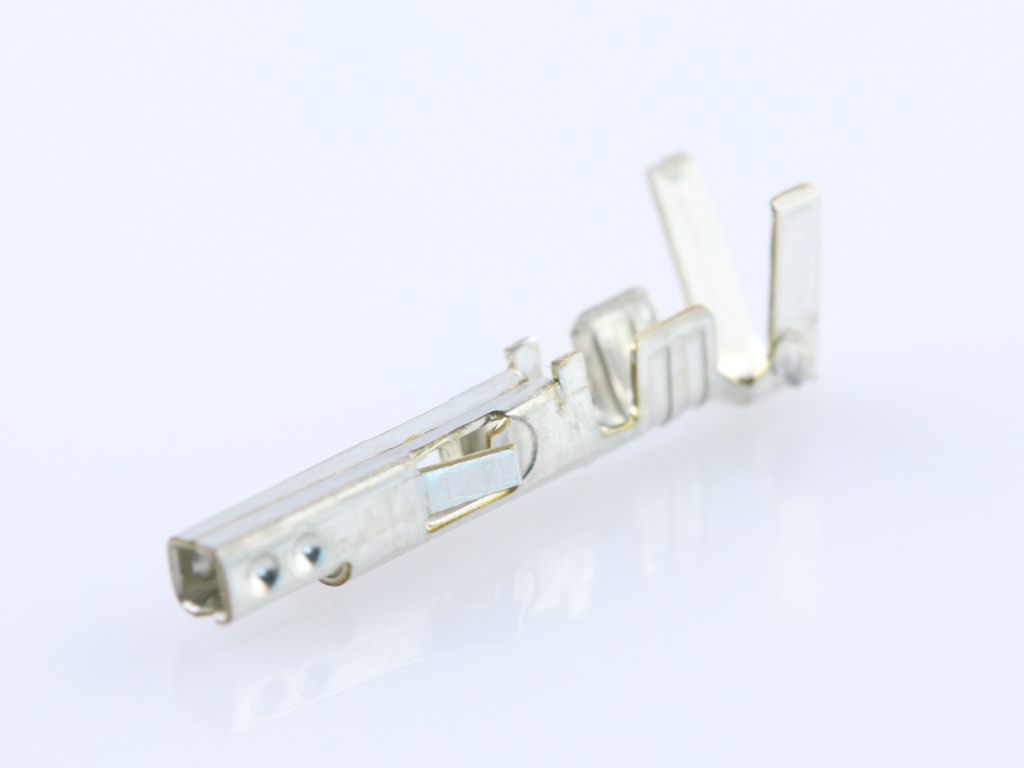

 | Molex 39-00-0218 | Mini-Fit Female Crimp Terminal, Tin (Sn) over Phosphor Bronze, 16 AWG | |
 | Molex 39-00-0428 | Mini-Fit Female Crimp Terminal, Selective Gold (Au) and Selective Tin (Sn) over Nickel (Ni), 24-18 AWG, Reel | |
 | Molex 43645-0500 | Micro-Fit 3.0 Receptacle Housing, Single Row, 5 Circuits, UL 94V-0, Black | |
 | Molex 502578-0300 | CLIK-Mate Wire-to-Board Housing, Single Row, Positive Lock, 3 Circuits, Beige | |
Product Change Notice
| Effective Date | Description of Change | Download | |||
|---|---|---|---|---|---|
| 02/18/2019 | 506408 - Packaging Method/Quantity Changing. This letter is to inform you that the part(s) referenced in this notice will undergo packaging specification changes that may include new container sizes, quantities or changes to the label. No changes will be made to the product as a result of this change. | Download | |||
Availability
Immediate Shipment:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
Additional Resources
| Attribute | Value |
|---|---|
| Molex: | 19164-0028 |
| Other Names: | 0191640028 SB-227-06 |
