| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 19121-0030 |
| Color: | Natural |
| Series: | 19121 - InsulKrimp |
| Connector Type: | InsulKrimp |
| Contact Plating: | Tin |
| Stud Size: | 10 (M5) |
| Insulation Material: | PVC |
| Contact Mating Area Plating: | Tin |
| Contact Mating Area Plating Thickness: | 4.064 µm |
| Contact Termination Plating Thickness: | 4.064 µm |
| Wire Size: | 14 AWG, 16 AWG, 1 - 2.5 mm² |
| Wire Insulation Diameter: | 4.45 mm |
| Barrel Type: | Closed |
| Material Flammability Standard: | 94V-0 |
| Part Aliases: | 0191210030 BB-216-10X |
| SKU: | MOL19121-0030 |
19121-0030
| Heilind Number: | MOL19121-0030 |
| Manufacturer: | Molex |
| Manufacturer Number: | 19121-0030 |
| Datasheet: | Product Specification |
| ECAD Model: | |
Description:
InsulKrimp Flanged Spade Tongue Terminal for 14-16 AWG Wire, Stud Size 10 (M5), Length 20.19mm
More >>Specifications
Detailed Description
The 19121-0030 is a high-quality InsulKrimp Flanged Spade Tongue Terminal designed for 14-16 AWG wires with a stud size of 10 (M5). Measuring 20.19mm in length, this terminal is ideal for secure and efficient connections. Featuring a durable tin contact plating and PVC insulation, it ensures reliable performance. With UL (E32244) and CSA (LR18689) certifications, it guarantees safety and compliance. The closed barrel design accommodates wires with insulation diameters up to 4.45mm. Packaged in a convenient bag, this terminal is RoHS compliant and suitable for various applications in the automotive, industrial, and electronic sectors. Trust the 19121-0030 for your crimping needs, offering superior quality and performance.
Frequently Bought Together
| Product | Part # | Description | Stock |
|---|---|---|---|
 | Molex 19004-0005 | InsulKrimp Fully Insulated Coupler, Male, for 14-16 AWG Wire, Box |  |

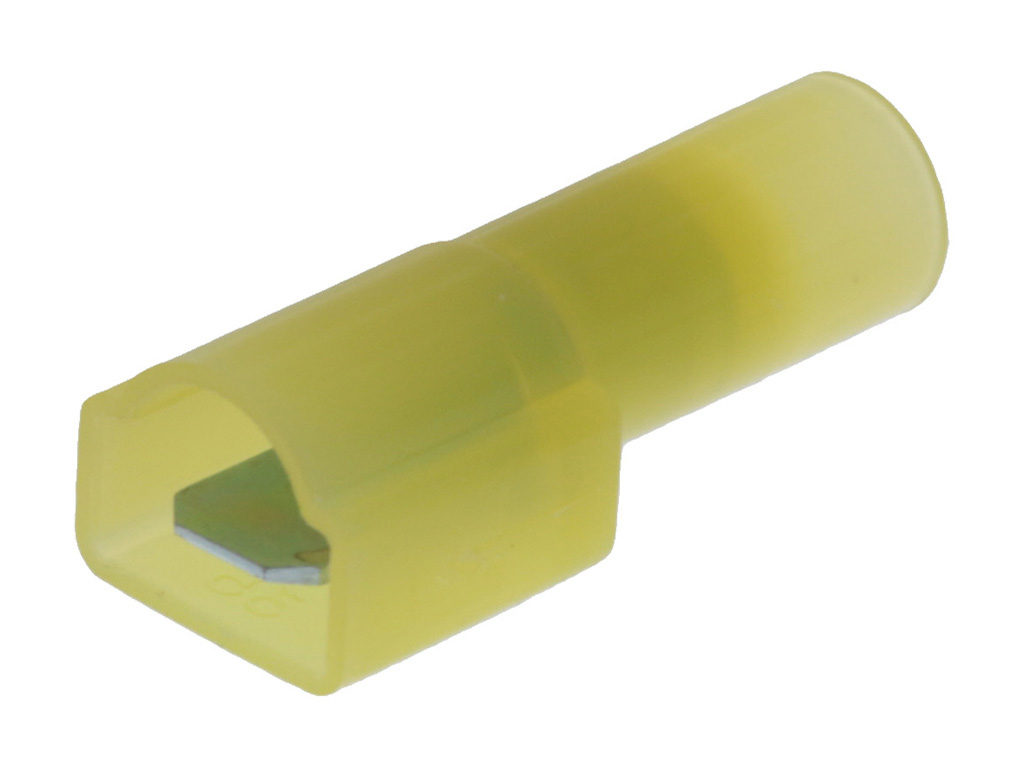

 | Molex 19004-0009 | InsulKrimp Fully Insulated Coupler, Male, for 10-12 AWG Wire, Box | |
 | Molex 19011-0035 | InsulKrimp Piggyback Quick Disconnect, Tab 6.35 x 0.81mm, 18-22 AWG, Red Insulator, Loose | |
 | Molex 19011-0037 | InsulKrimp Piggyback Quick Disconnect, Tab 6.35 x 0.81mm, 14-16 AWG, Blue Insulator, Loose | |
 | Molex 19038-0001 | InsulKrimp Snap Plug Receptacle, for 18-22 AWG Wire, PVC, Fits Male Plug Diameter 3.96mm | |
 | Molex 19038-0007 | InsulKrimp Snap Plug Receptacle for 14-16 AWG Wire, PVC, Fits Male Plug Diameter 3.96mm | |
 | Molex 19070-0033 | InsulKrimp Ring Tongue Terminal for 18-22 AWG Wire | |

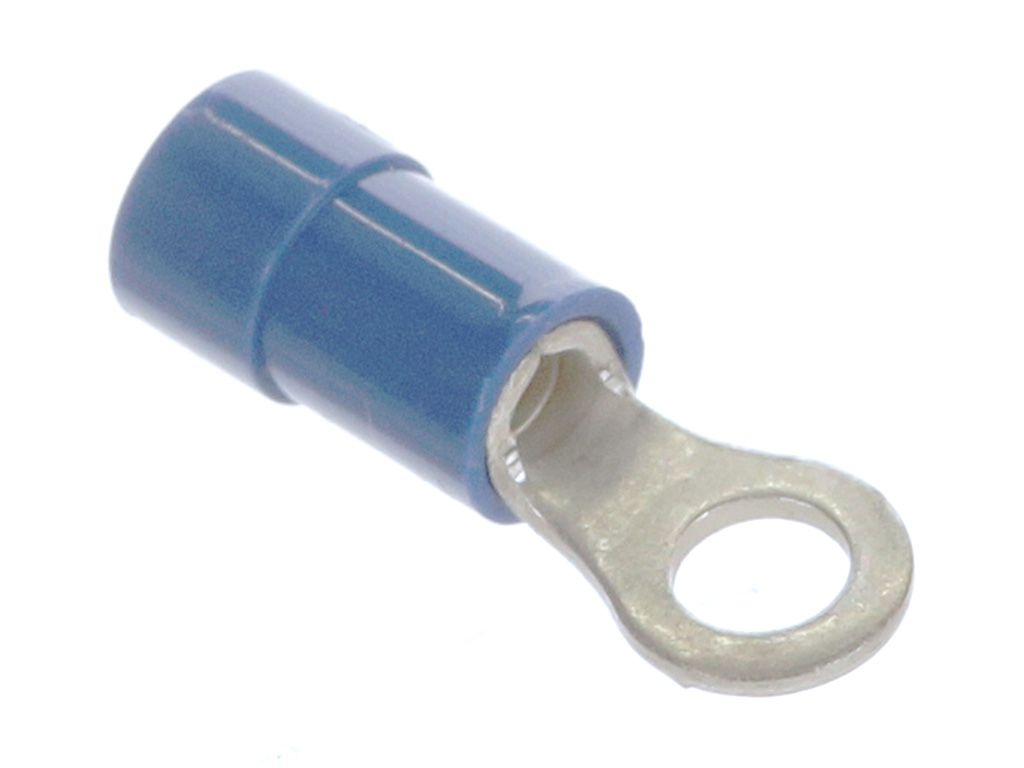

 | Molex 19070-0069 | InsulKrimp Ring Tongue Terminal for 14-16 AWG Wire | |
 | Molex 19070-0102 | InsulKrimp Ring Tongue Terminal for 14-16 AWG Wire | |

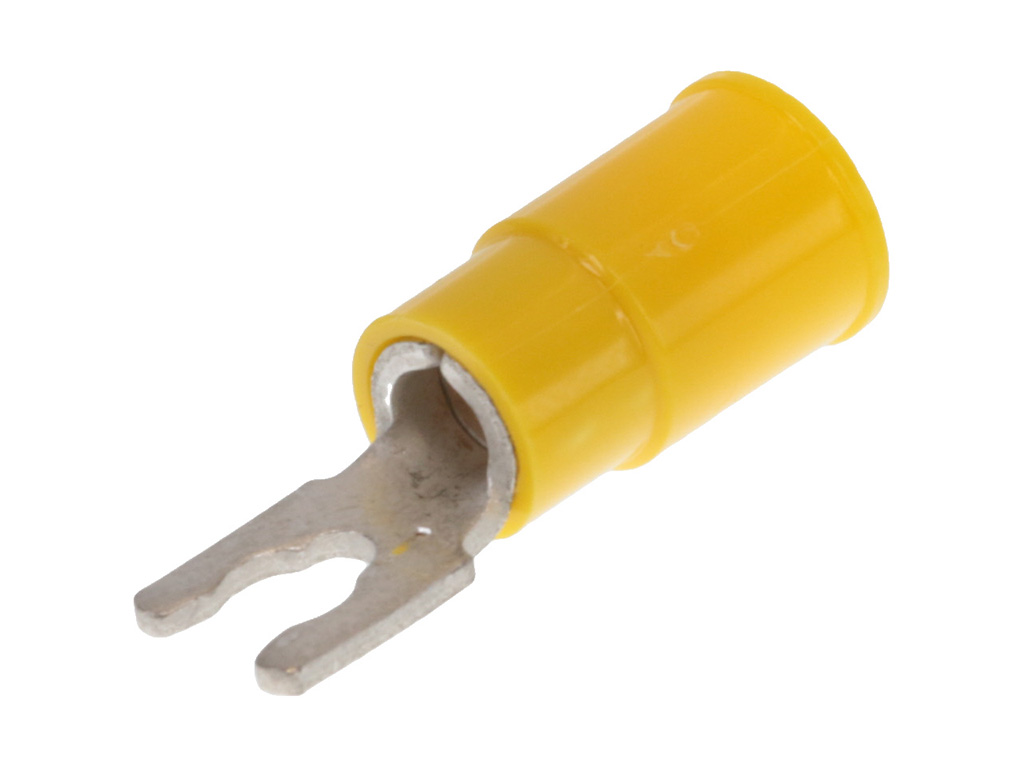

 | Molex 19099-0044 | InsulKrimp Snap Spade Terminal for 10-12 AWG Wire, Yellow | |
 | Molex 19115-0031 | Avikrimp Snap Spade Terminal for 14-16 AWG Wire | |
 | Molex 19121-0057 | InsulKrimp Flanged Spade Tongue Terminal for 10-12 AWG Wire, Stud Size 10 (M5), Width 9.53mm, Mylar Tape Carrier | |
 | Molex 19154-0015 | InsulKrimp Butt Splice for 14-16 AWG Wire | |

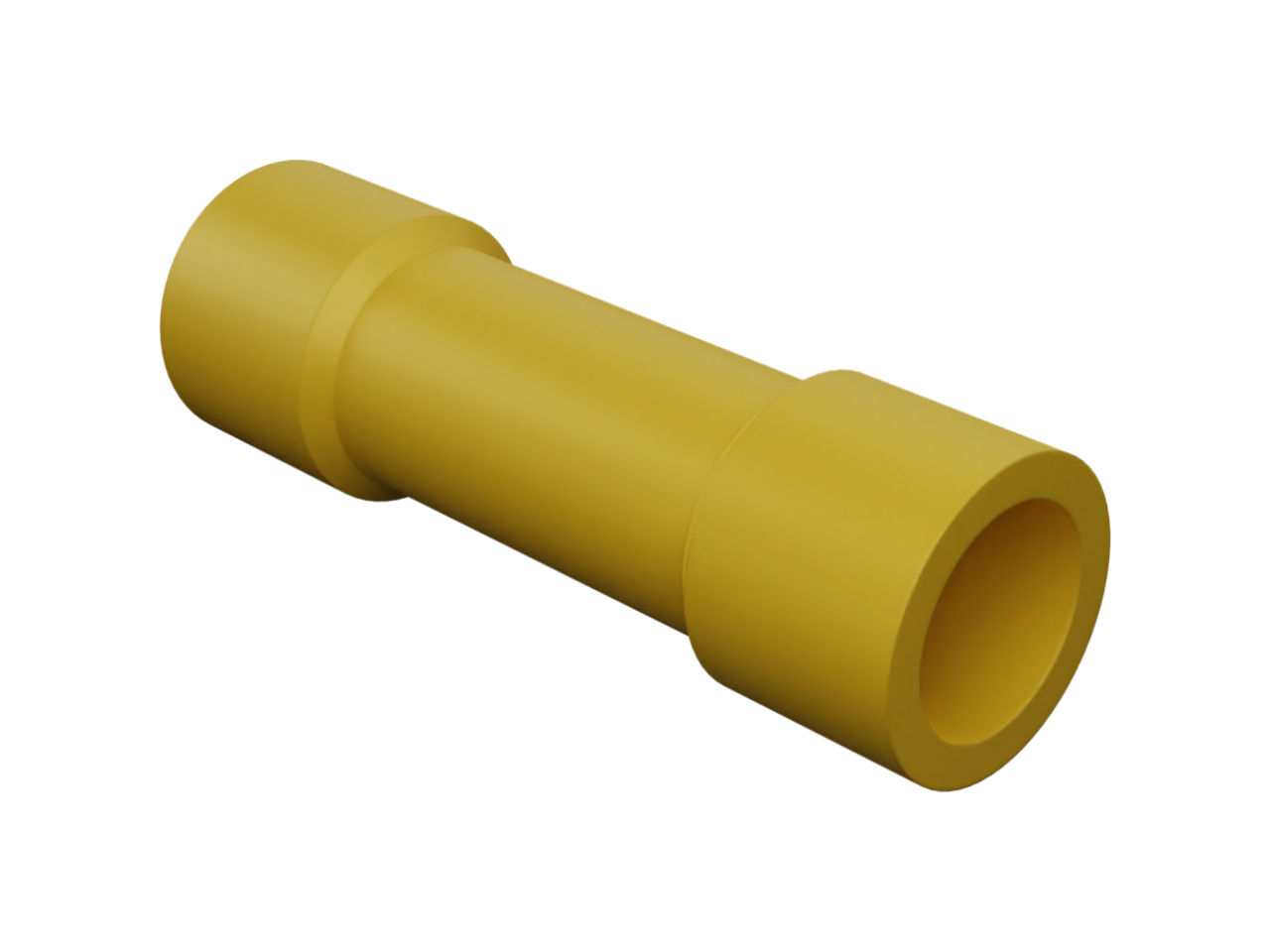

 | Molex 19154-0028 | InsulKrimp Butt Splice for 10-12 AWG Wire | |
